➤ Used Hyundai KH-63G For Sale | gindumac.com

Show in original language

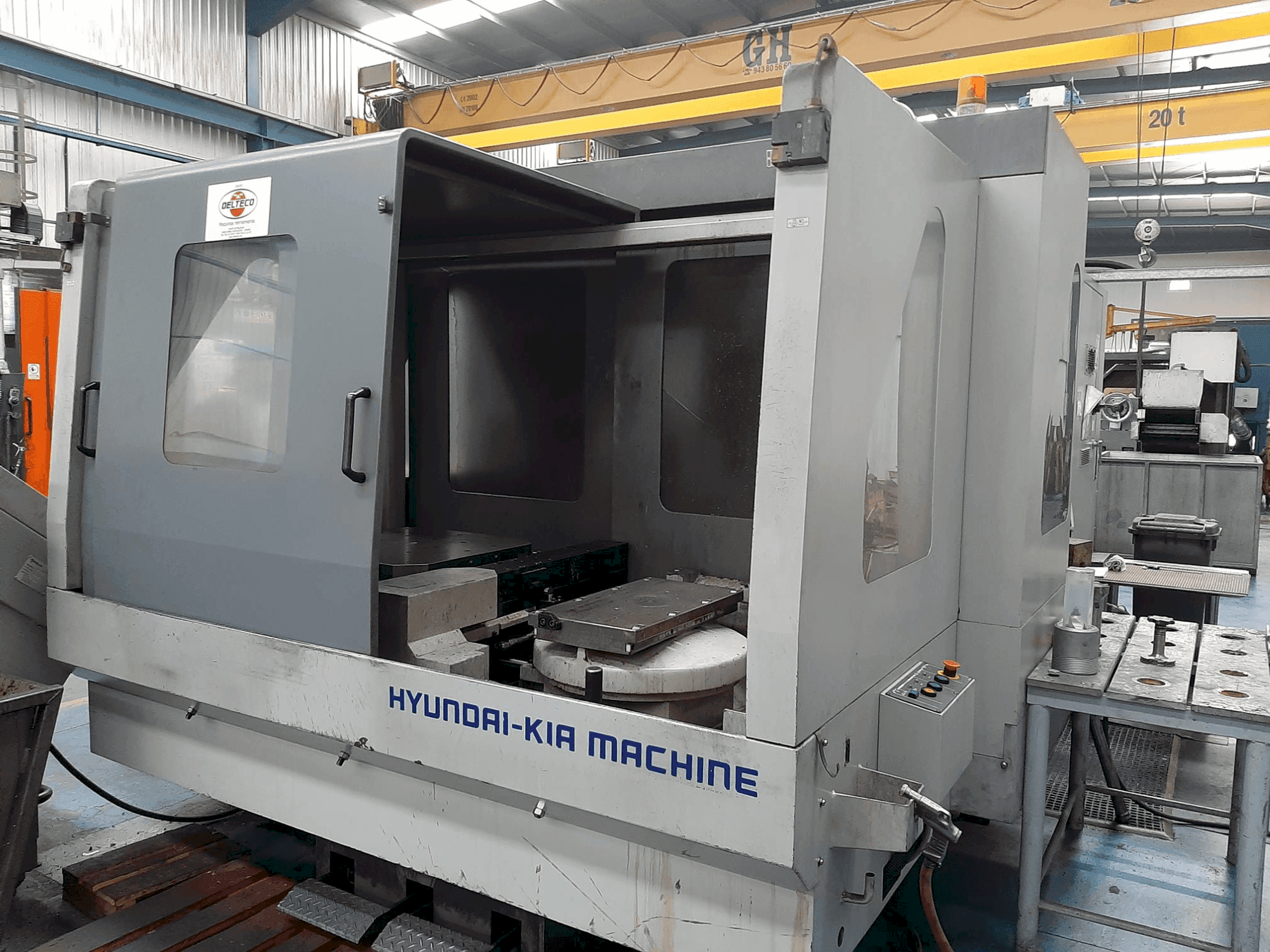

This 4-axis Hyundai KH-63G was manufactured in 2008. It features a maximum workpiece size of Ø1,050 x 1,350 mm and a table load capacity of 1,200 kg. With X/Y/Z travels of 1,050/850/900 mm and a B-axis rotation for precise indexing, it's ideal for complex machining tasks. The spindle supports up to 6,000 rpm with a power of 26/30 kW. Consider the opportunity to buy this Hyundai KH-63G horizontal machining centre. Contact us for more information about this machine.

Overview

brand: Hyundai
year: 2008
MODEL: KH-63G
application type: Milling
Location: Spain
machine type: Horizontal Machining Centre

Technical Information - Hyundai KH-63G

General Data

Measurements width: 3400 mm
Measurements depth: 5300 mm
Measurements height: 3800 mm
Machine weight: 20000 kg

Main drive

Spindle speed range: 6000 1/MIN
Tool taper: ISO 50 (BT-50)
Number of axis: 4

Movement

X-AXIS Movement: 1050 mm
X-AXIS Rapid traverse: 48000 mm/min
Y-AXIS Movement: 850 mm
Y-AXIS Rapid traverse: 48000 mm/min
Z-AXIS Movement: 850 mm
Z-AXIS Rapid traverse: 48000 mm/min

Table

Table load: 1200 kg

Tools

Max weight: 30 kg
Max tool diameter: 125 mm
Max tool length: 600 mm

Additional Information

Extra information

B-axis rotation: 0.001° indexing (full 360°)
Cutting feedrate: 1 – 20000 mm/min

Max workpiece size: Ø1050 x 1350 mm

Max spindle torque: 875 Nm

ATC tool capacity: 60 tools
Max tool diameter: 125 mm (without adjacent), 250 mm (with adjacent empty)
Tool change time: 3.5 sec

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
