HYUNDAI KIA - SKT400LMCGB-TUR-HYU-2008-00001
Sold
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- Hyundai Kia SKT400LMC Lathe machine
Show in original language

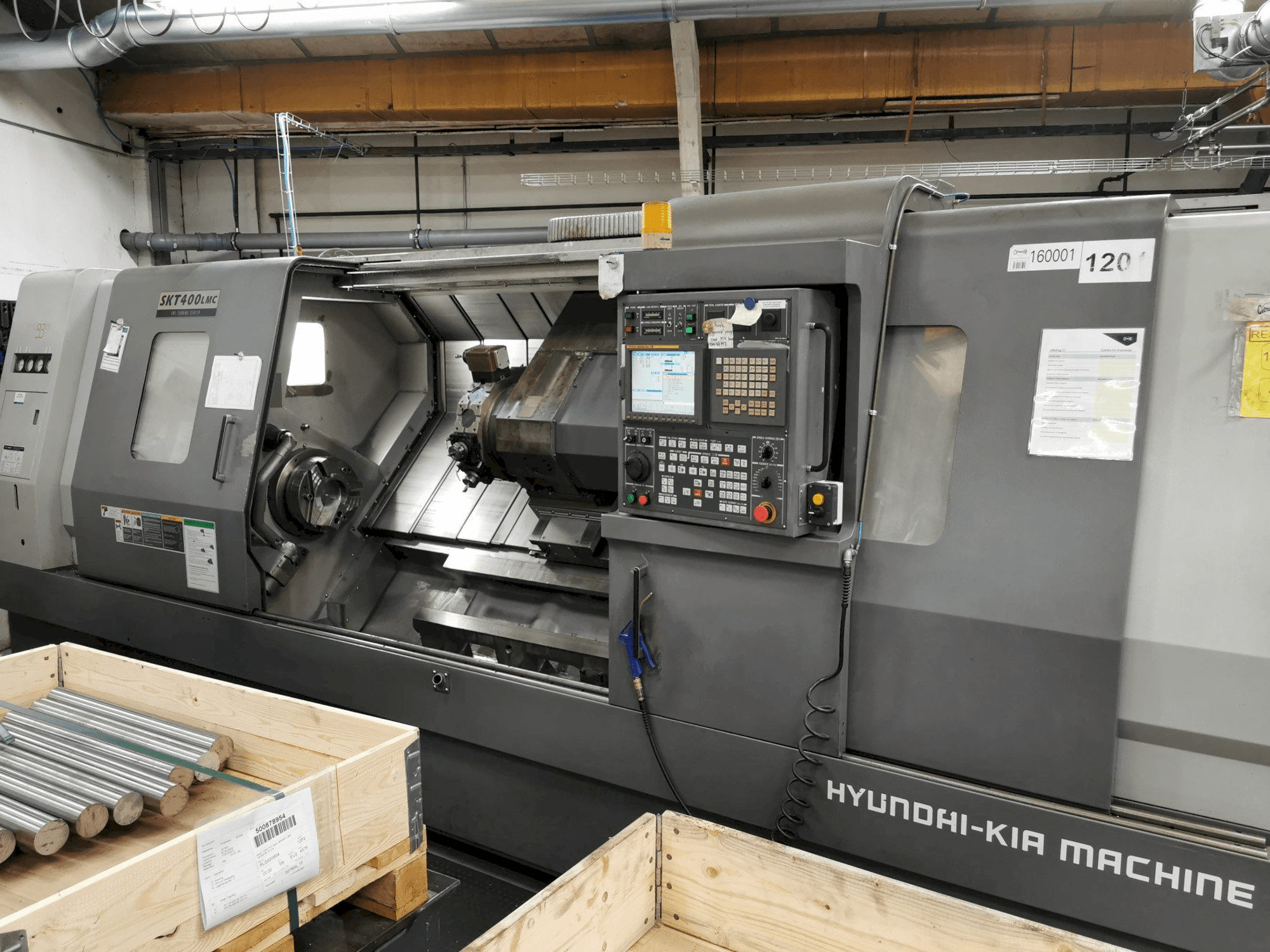

This Hyundai Kia SKT400LMC Lathe machine was manufactured in the year 2008 in Korea. It is equipped with a FANUC 21I-T control unit. This 3 axis machine can perform with a spindle speed up to 2000 rpm.
Overview
- brand: HYUNDAI KIA
- year: 2008
- MODEL: SKT400LMC
- production hours: 45564
- application type: Turning
- Location: United Kingdom
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - HYUNDAI KIA SKT400LMC
Control Unit
- Control Brand: FANUC
- Control Model: Series 21i-TB
Dimensions
- Machine Depth: 2165 mm
- Machine Height: 2228 mm
Movement
- Number of Axes: 3
- X-axis Travel: 320 mm
- Z-axis Travel: 2200 mm
Technical Specification
- Spindle Speed: 2000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good condition
- Machine manual
Technical Machine Benefits
- Swing over bed 725 mm
- Maximum cutting diameter 570mm
- Maximum cutting length 2110mm
- Bar capacity 117 mm
- Main spindle motor power 37/30 kw
- Turret milling power 7. 5/5. 5 kw; speed 4000 rpm
- 0. 001 degree c axis
- Tool setter, coolant, hydraulic power work steady
- Tooling, 3 jaw chuck 380mm (15")
- Tailstock body travel 2100 mm (taper mt #5, quill diameter & stroke 150 mm)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
