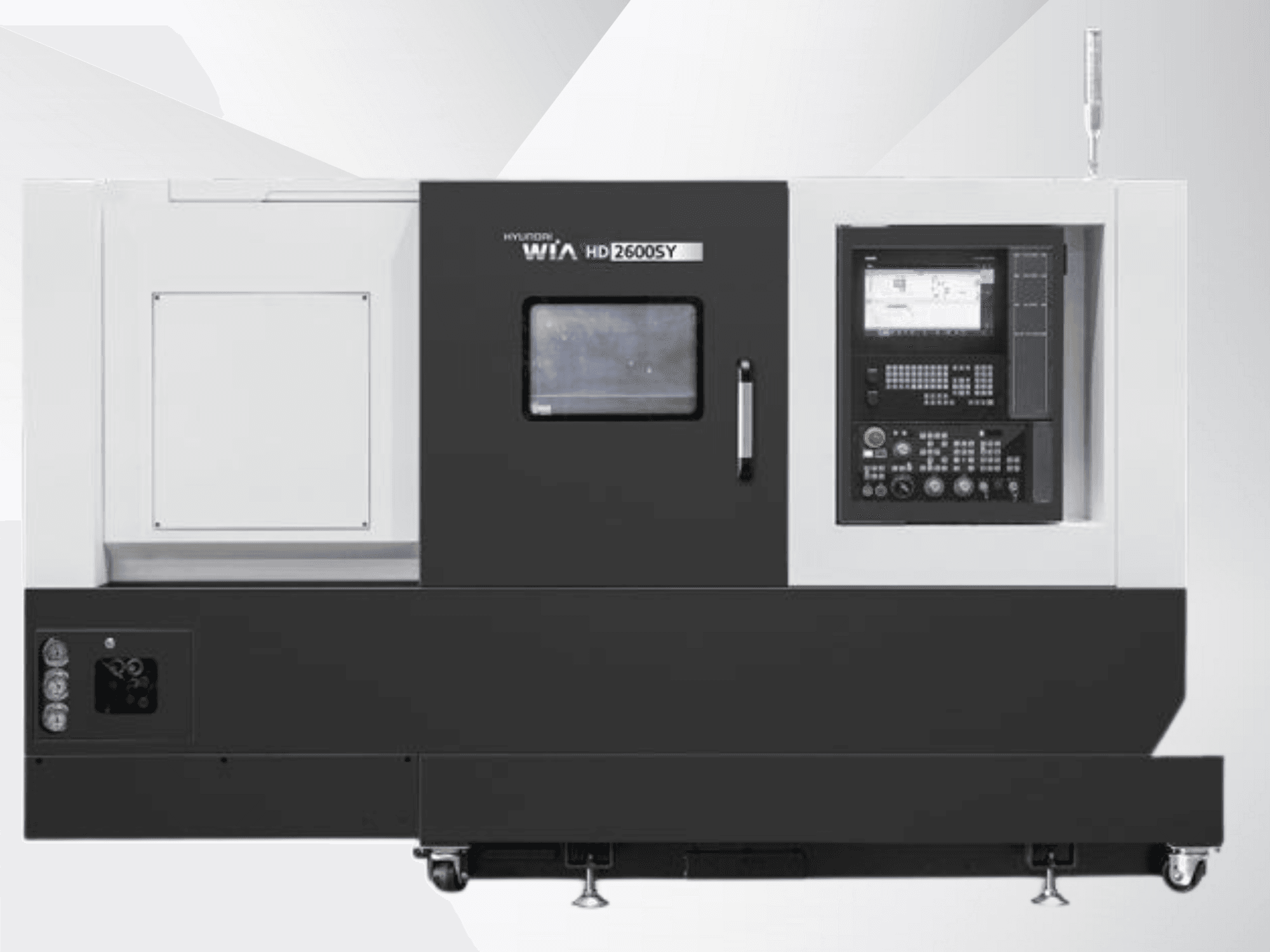

Hyundai - Wia HD2600Y DE-TUR-HYU-2025-00005

• Condition

  • Original packaging

  • 0 operating hours

Capacity

• Swing over bed: Ø820 mm

• Swing over carriage: Ø650 mm

• Max. turning diameter: Ø300 mm

• Max. turning length: 610 mm

• Bar capacity (sub): Ø81 mm

• Chuck size (main): 10"

Spindle

• Spindle bore (main): Ø91 mm

• Motor (max/cont.) (main): 18.5/15 kW (25/20 HP)

• Motor (max/cont.) (sub): 5.5/3.7 kW (7.4/5 HP)

• Torque (max/cont.) (main): 400.7/243.7 Nm (295.7/179.9 lbf·ft)

• Torque (max/cont.) (sub): 46.6/25.3 Nm (34.4/17.7 lbf·ft)

• Spindle type: Belt

• Spindle nose (main): A2-8

• Spindle nose (sub): Ø110 mm

• C-axis indexing: 0.001°

Feed

• Travel (Z/2B): 680 / 680 mm

• Rapid traverse (X/Y): 30 m/min

• Rapid traverse (Z/2B): 24 / 24 m/min

• Slide type: Box guide

Turret

• No. of tools: 12 (24)

• Tool size (OD): Ø25 mm

• Tool size (ID): Ø40 mm

• Indexing time: 0.2 sec

• Y-axis type: Wedge type

Live tool

• Milling tool speed: 6,000 rpm

• Motor (max/cont.): 5.5/3.7 kW

• Torque (max/cont.): 52.6/25.6 Nm

• Collet size: Ø16 mm (ER25)

• Type: BMT55

Tailstock

• Taper: MT#4

• Quill diameter: Ø80 mm

• Quill travel: 120 mm

• Travel: 680 mm

Tank capacity

• Coolant tank: 200 l

• Lubricating tank: 2 l

Power supply

• Electric power supply: 27 kVA

• Thickness of power cable: Over 25 mm²

• Voltage: 220/60 (200/50)

CNC

• Controller: HYUNDAI WIA FANUC i-Series – Smart Plus / SIEMENS 828D
