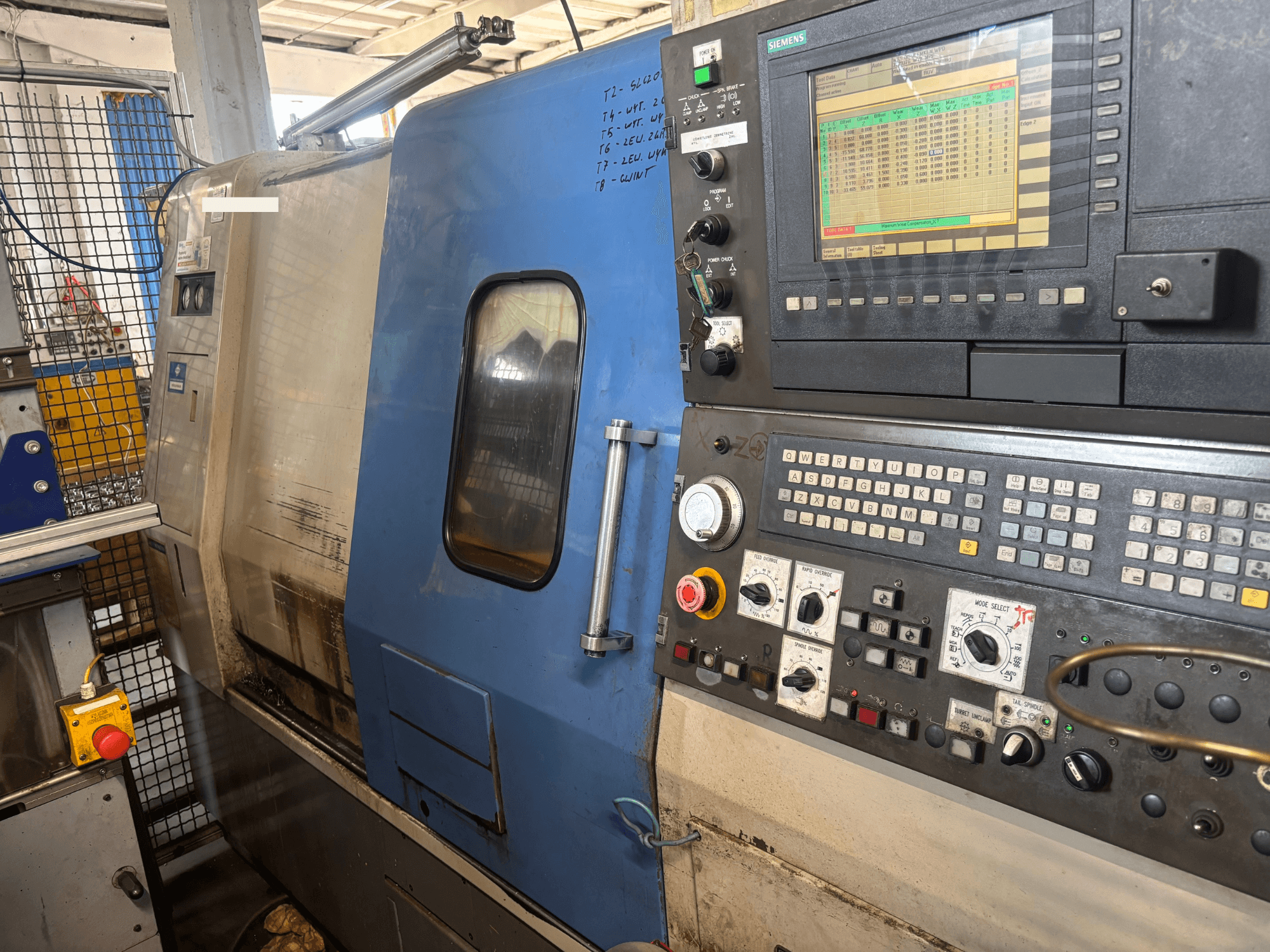

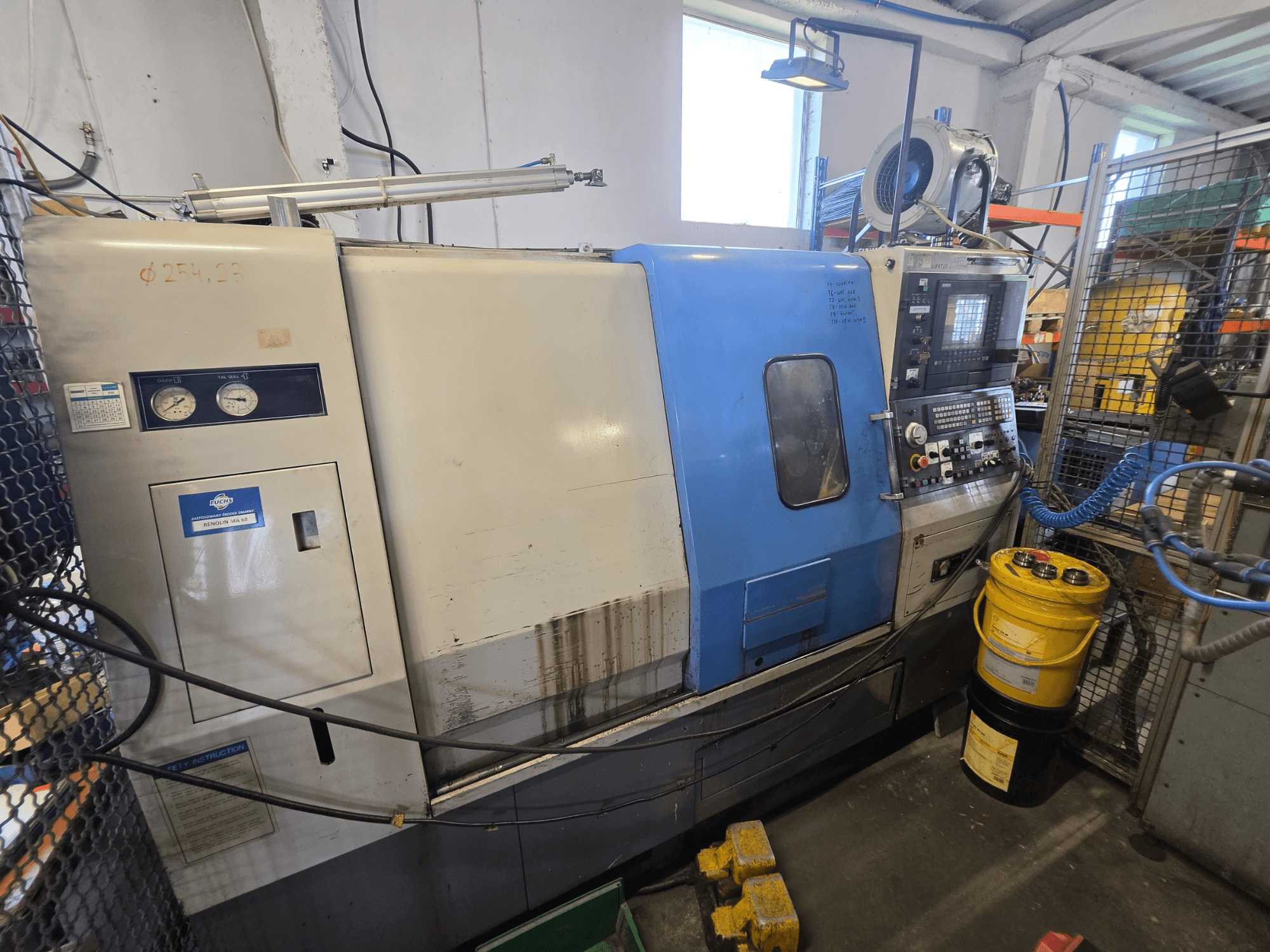

Horizontal turning machine manufactured in 2003. This Hyundai HIT-200C features a maximum turning diameter of 340 mm and a turning length of 420 mm. It is equipped with a Siemens Sinumerik CNC control and has an X-axis travel of 240 mm and Z-axis travel of 430 mm. If you are looking to get high-quality turning capabilities, consider the Hyundai HIT-200C machine we have for sale. Contact us for further details.
Overview
- brand: Hyundai
- year: 2003
- MODEL: HIT-200C
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - Hyundai HIT-200C
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik
Dimensions
- Machine Weight: 4500 kg
Movement
- Number of Axes: 2
- X-axis Travel: 240 mm
- Z-axis Travel: 430 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
Additional Information
Maximum turning diameter: 340 mm
Maximum turning length: 420 mm
Spindle nose: A2-8
Spindle bore: 80 mm
Hydraulic chuck: 10"
Machine condition/accuracy: very rigid and dimensionally stable construction; capable of maintaining IT6 tolerance class
Additional equipment
Optional automation package:
FANUC industrial robot
ROBOTOWER loading and finished-part unloading station
Set of grippers
Operating manuals
CE documentation
Note: Feeder/robot reported in very good condition; complete production cell suitable for serial production (e.g., batches of 500 parts or more)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
