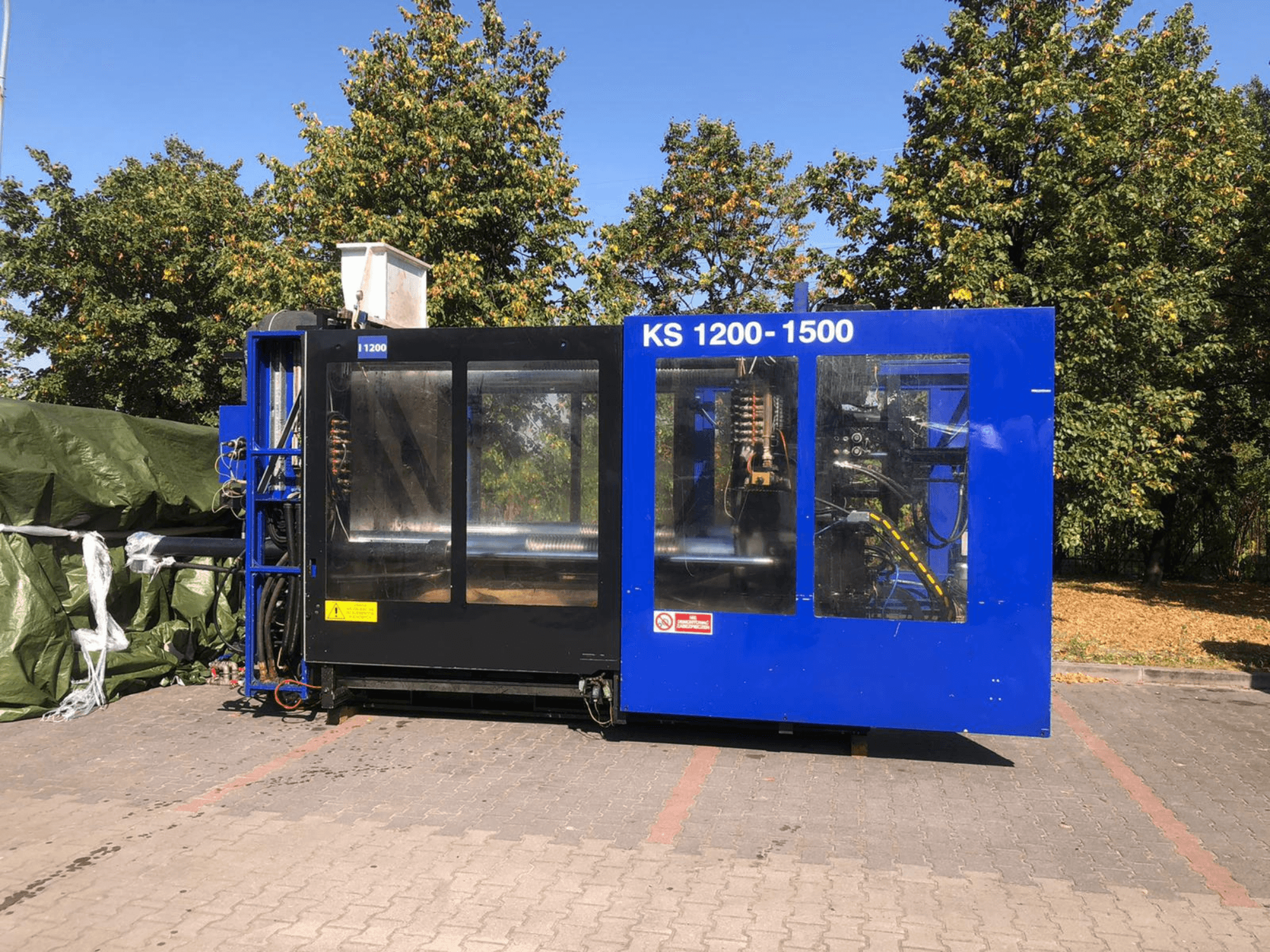

ITALTECH - KS 1200 8300 ES IT-INJ-ITA-2011-00001

Injection Unit

• Injection unit size: 8300

• L/D ratio: 20

• Shot volume (theoretical): 8,630 cm³

• Max injection pressure: 1,460 bar

• Injection flow rate: 1,200 cm³/s

• Screw speed: up to 110 rpm

• Screw torque: 8,400 Nm

• Plasticizing capacity (HDPE): 140 g/s

• Heating capacity: 79 kW

• Temperature control zones: 5 + 1

Clamping Unit

• Clamping force: 11,772 kN (~1,200 t)

• Opening force: 300 kN

• Opening stroke with minimum mould height: 2000 mm

• Opening stroke with maximum mould height: 1400 mm

• Mould height: 600–1,200 mm

• Max daylight: 2,600 mm

Platen & Ejector

• Platen size (W x H): 1,900 x 1,770 mm

• Distance between tie bars (W x H): 1,250 x 1,120 mm

• Tie bar diameter: 220 mm

• Ejector force: 226 kN

• Ejector stroke: 300 mm

Power & Consumption

• Pump motor power: 180 kW

• Installed power: 265 kW

• Oil tank capacity: 1,800 L

Performance

• Dry cycle: 10 s
