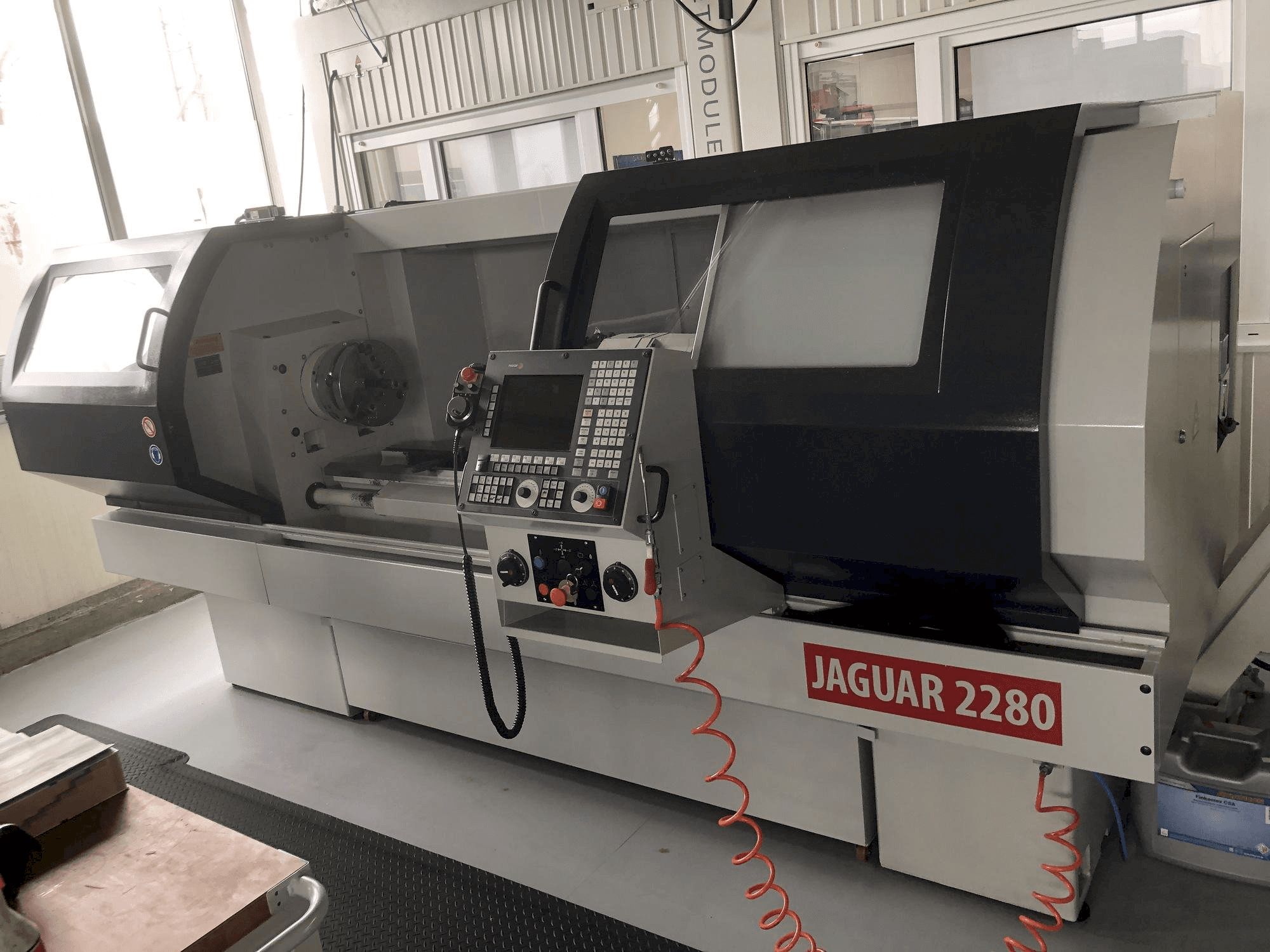

This JESSEY JAGUAR 2280 Lathe was manufactured in the year 2016 in Taiwan. It is equipped with a FAGOR 8055 i/A TC control unit. This 2 axis machine can work with a spindle speed range 26-2400 rpm and a spindle bore 80 mm. It includes several additional parts as a fixed bezel 25-145 mm and a hinged chip conveyor with lateral ejection and chip carriage. This machine includes its electronic documentation in german.
Overview
- brand: JESSEY
- year: 2016
- MODEL: JAGUAR 2280
- application type: Turning
- Location: Germany
- machine type: Horizontal Turning Machine
- control unit brand: FAGOR
Technical Information - JESSEY JAGUAR 2280
Control Unit
- Control Brand: FAGOR
- Control Model: 8055 I/A TC
Dimensions
- Machine Depth: 5772 mm
- Machine Height: 1802 mm
- Machine Weight: 4000 kg
Movement
- Number of Axes: 2
Technical Specification
- Spindle Power: 11 kW
- Spindle Speed: 2400 RPM
Additional Information
Additional equipment
- 8 fold tool turret vdi 40, btp 80 - electromechanical; boring bar 40 mm and turning steel height 25 mm
- hinged chip conveyor with lateral ejection and chip carriage
- fixed bezel 25-145 mm
- fixed steady rest 165 - 385 mm
- schunk rota-s plus 315-92/3
- 3 jaw wedge bar chuck 315 mm
- 92 mm passage with direct spindle mounting with camlock fastening c8 din 55029/c8 with base jaws and hard reversing top jaws
- 1 SET OF ALIGNMENT ELEMENTS
Machine Benefits
Qualitative Machine Benefits
- Chip tray can be pulled out to the front for easy removal of the chips
- Ergonomic control panel with 11'' monitor that can be moved along the entire working lenght, keyboard and 2 electronic handwheels for x and z axis
- Powerful machine tailstock with 75 mm quill, 200 mm quill stroke and quick clamping (mk5)
- Full safety machine enclosure with 2 large sliding doors
- 2 viewing windows with safety glass according to din en 12415
- Powerful coolant system with 1. 5 bar
- Led workspace lighting
- Machine according to ce
Technical Machine Benefits
- Main machine data tip height 280 mm circulation over 560 mm
- Spindle torque 1490 nm
- Machine accuracy according to din 8605
- Control including din-iso programming
- 3- speed manual transmission with electronic gear shifting
- Multifix quick change toolholder system - size mc with 4 inserts
- Prismatic machine guide and precision recirculating ball spindle
- Finely ground guideways hardened to 5o rockwell (hrc) with a large bed widht fro 345 mm
- Removable bed bridge
- Automatic central lubrication system for guideways and ball screws
