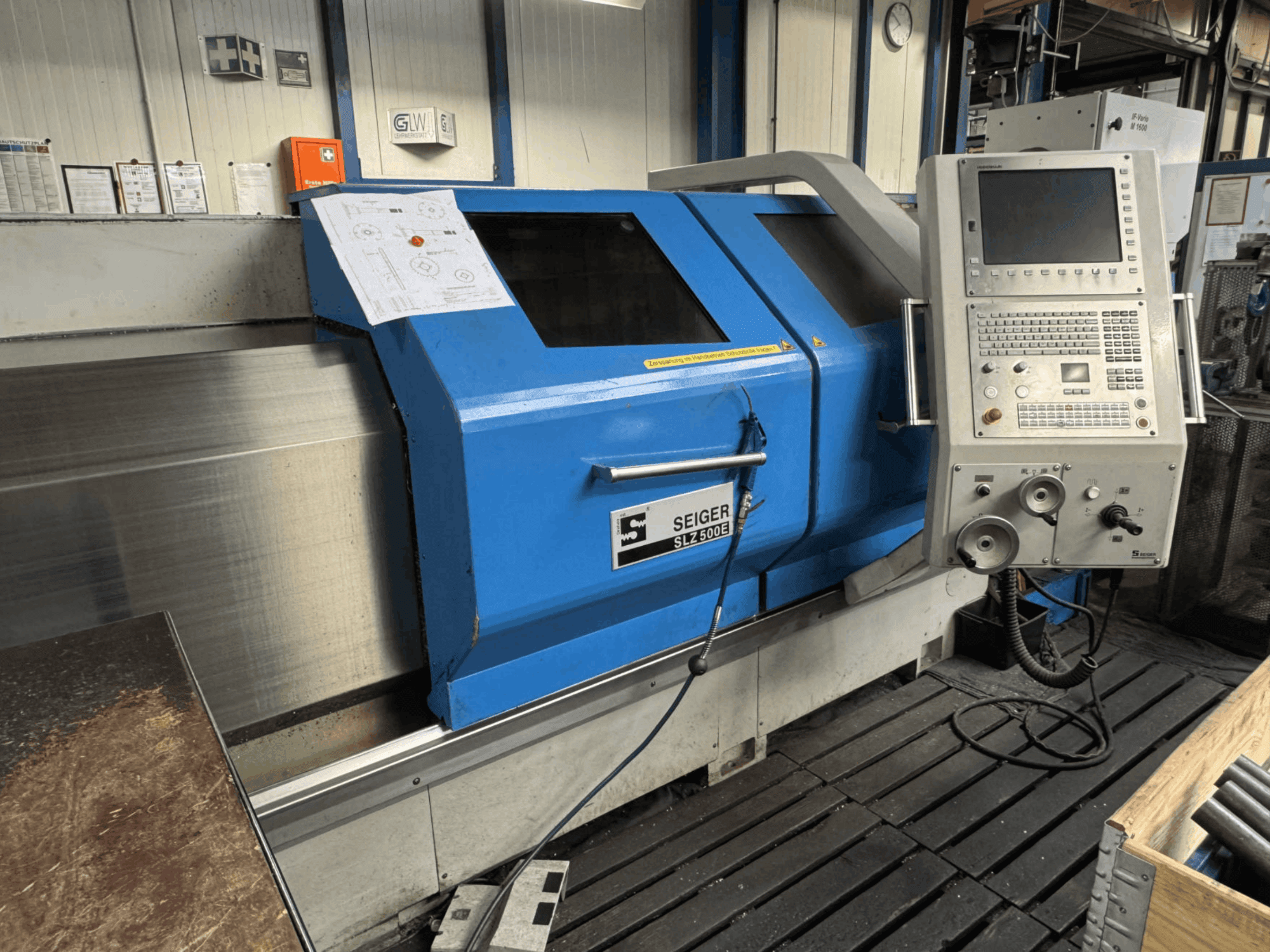

SEIGER - SLZ 500EDE-TUR-SEI-2014-00001

- Spindle Speed: 1 - 3,000 RPM (Stage 1: 1 - 750 RPM, Stage 2: 1 - 3,000 RPM)

- Spindle Power (100/60% ED): 20 / 25 kW

- Taper Size: DIN 55027 Size 8 (Main Spindle Nose) / MT 5 (Tailstock Quill)

- Tool Stations: 8-station Sauter disc turret + Parat 4-way quick-change holder Size 3

- Through-Spindle Coolant: No

- Counter Spindle: No

- Max. Bar Diameter: 78 mm (through Schunk chuck) / 93 mm (spindle bore)

- Max. Workpiece Diameter: 500 mm (swing over bed) / 280 mm (swing over cross slide)

- Max. Tool Weight: No info

- Driven Tools: Yes (Sauter 8-station disc turret for driven tools, VDI shaft D=30 mm with digital servo motor)

- Positioning Accuracy: According to DIN 8605

- X-axis Travel: 260 mm

- Z-axis Travel: 1500 mm (center distance)

- C-axis Specification: Pneumatically engaging with digital motor and gear drive on main spindle (Spindle speed up to 15 rpm, Torque ca. 420 Nm)

- Bed Width: 350 mm

- Turning Tool Cross Section (H x W): 25 x 25 mm

- Spindle Diameter in Front Bearing: 130 mm

- Inner Taper of Main Spindle: Metric 100

- Maximum Spindle Torque: approx. 1400 Nm

- Feed Force Z-axis: 10,000 N

- Feed Force X-axis: 7,000 N

- Feed Range (Longitudinal/Planar): 0.001 - 6000 mm/rev

- Rapid Traverse Speed X/Z: 10 / 7 m/min

- Tailstock Quill Diameter: 90 mm

- Tailstock Quill Stroke: 180 mm

- Max Workpiece Weight (Between Centers): 1,000 kg (1,250 kg with steady rest)

- Max Workpiece Weight (Flying in Chuck): 300 kg (at 200 mm center of gravity distance)

- Operating Voltage: 400 V / 50 Hz

- Control Voltage: 24 V DC

- Connected Load: 41 KVA

- Current Rating: 60 A

- Main Fuse: 63 A

- Additional Equipment:

- Chip protection wall, 2 movable sliding safety doors with windows, machine light, Quick-change tool holder size C, coolant device, live center MT 5, operator tool set, linear scale in X-axis, safety clutch in X and Z axes

- Chip Conveyor: discharge height 1000 mm, length 535 mm, 60-degree gradient, continuous feed, ca. 250 dm³/h capacity, speed ca. 2 m/min

- Two-speed Planetary Gearbox: Item 6054375, automatically shifting, flanged on main spindle motor

- Parat 4-Way Turret Quick-Change Holder: Size 3, manually operated, mounted on zero-point clamping system

- Sauter 8-Station Disc Turret for Driven Tools: VDI shaft D=30 mm with digital servo motor, mounted behind turning center

- Boring Block: with VDI 50 retainer and internal coolant supply, mounted on zero-point clamping system in front of turning center

- Zero-Point Clamping System: base part mounted on cross slide

- Hydraulic Hollow Clamping Unit: Schunk ROTA THW plus D=315 mm 3-jaw chuck with DIN 55027 Size 8 mount and 78 mm bore passage

- Reinforced Coolant Pump: (2.5 bar at 40 L/min, max 5.4 bar at 8 L/min) controlled via frequency inverter and potentiometer

- Hand Spray Gun: connected to coolant unit

- Enclosure Extension: tailstock side closed extension with pivoting door

- Tailstock Driver: Item 6061611, mounted on bed slide for dragging tailstock

- Machine Setup Elements: Item 6054102, 10 pcs machine feet with screws and anchors

- Extraction Unit Installed: IFS Industrie-Filter-Service GmbH IF-Vario M 1600 (Model M 1600, YOM 04-2020, Weight 85 kg, 400/460 V, 50/60 Hz, 0.75 kW, 1.7/1.8 A, IP 54)
