Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Johnford - ST-60CES-TUR-JOH-2008-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Machine Tools
- Johnford ST-60C

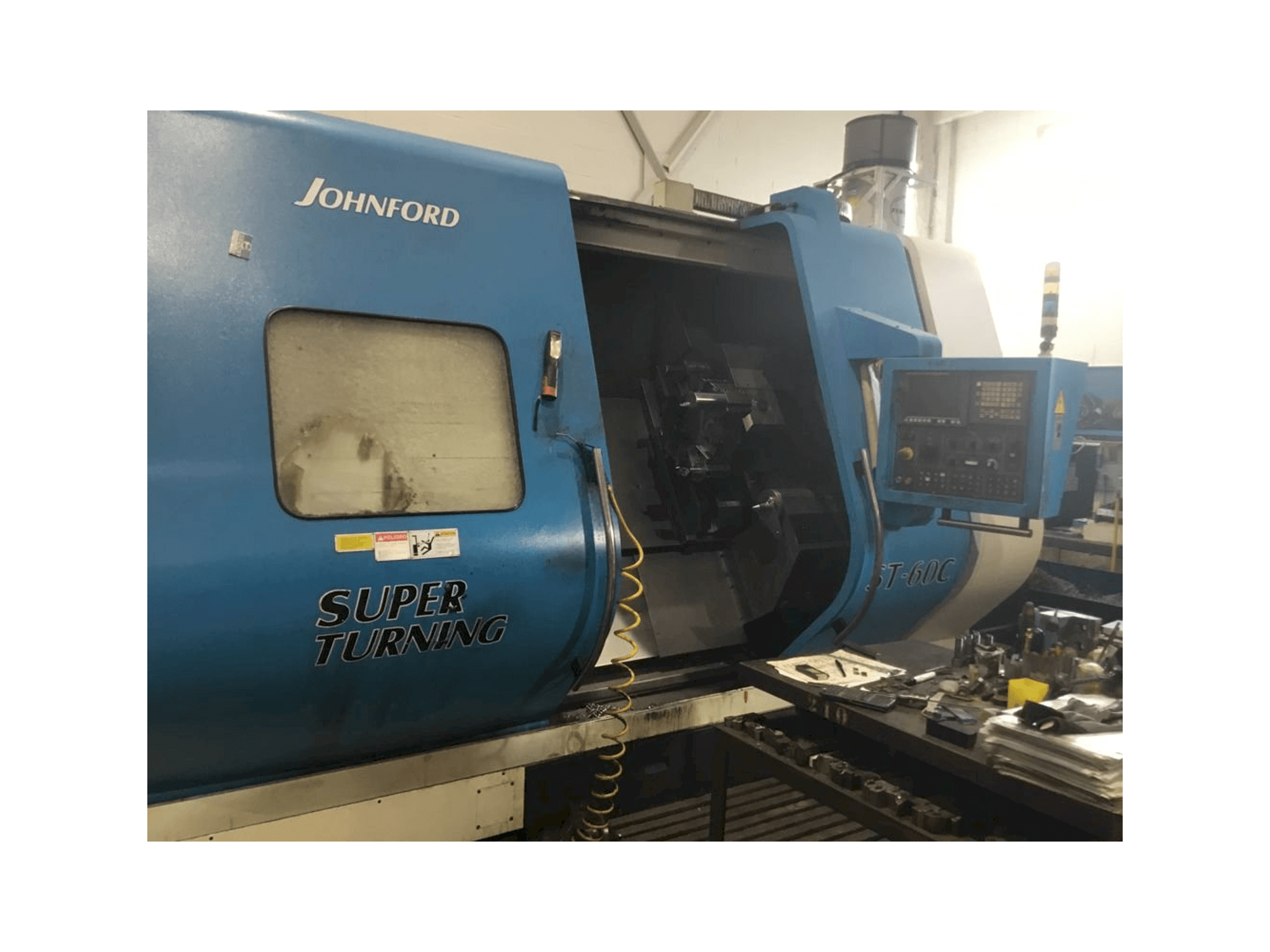

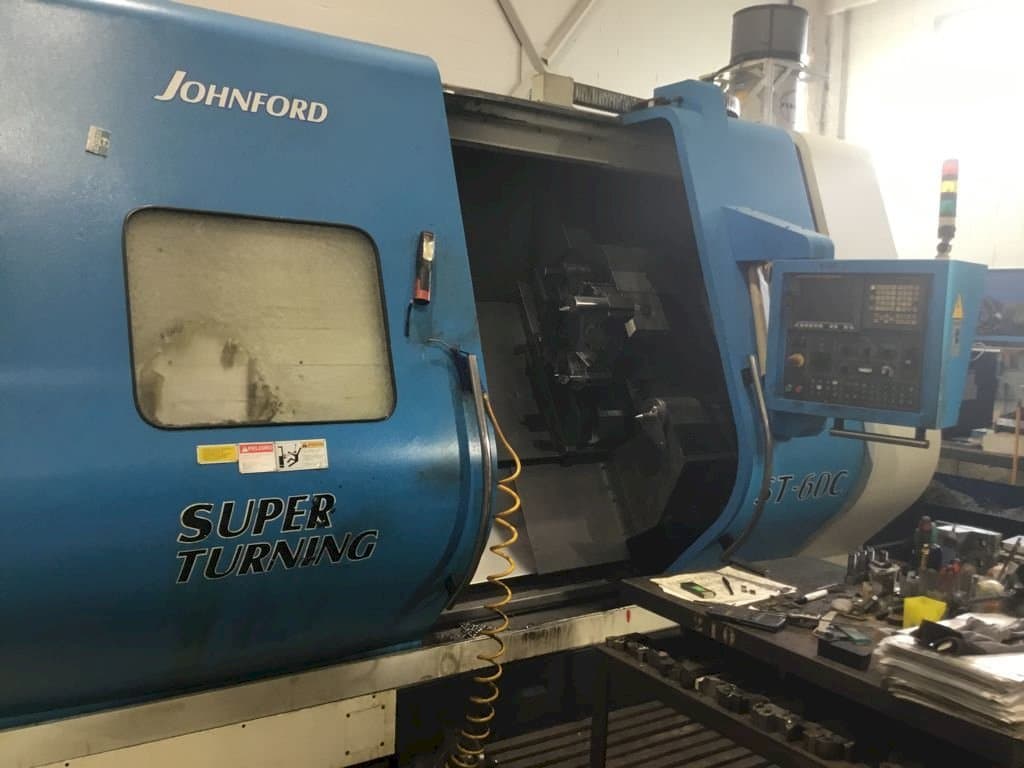

This Johnford ST-60C Lathe was built in 2008. It is equipped with a Fanuc 0i-TC + MGI control unit. This 2 axis machine can work with a spindle speed up to 1200 rpm. It has only been used by two brothers. This machine is very well maintained and works with very good precision.
Overview
- brand: Johnford
- year: 2008
- MODEL: ST-60C
- application type: Turning
- Location: Spain
- machine type: Horizontal Turning Machine
- availability: Sold
- control unit brand: FANUC
Technical Information - Johnford ST-60C
General Data
- Measurements width: 5535 mm
- Measurements depth: 2270 mm
- Measurements height: 2765 mm
- Machine weight: 13150 kg
Control Unit
- Brand: FANUC
- Model: 0i-TC + MGI
Main drive
- Number of spindles: 1
- Spindle speed range: 1200 1/MIN
- Number of axis: 2
Movement
- X-AXIS Movement: 320 mm
- Z-AXIS Movement: 1200 mm
Workpiece
- Workpiece drm: 790 mm
Turret
- Number of turrets: 1
Tools
- Slots in storage: 12
Additional Information
- Technical Machine Benefits:
- - Bar capacity 139 mm
- - Spindle bearing diameter 200 mm
- - Chuck size 510 mm
- - Tailstock travel 900 mm
- Qualitative Machine Benefits:
- - Good status
- - Maintenance
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
