Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
Johnford - SV-48HES-MIL-JOH-2008-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Johnford SV-48H

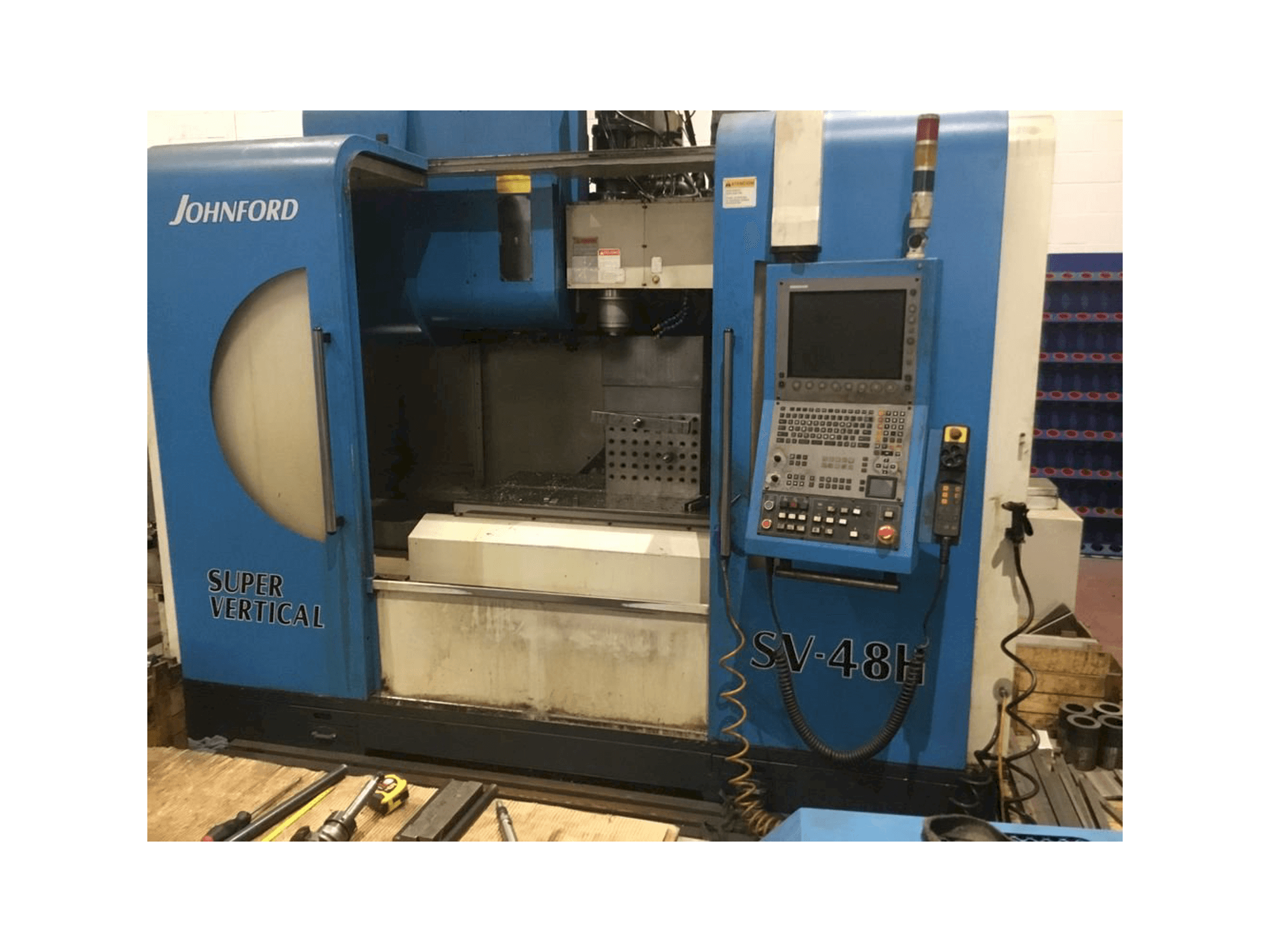

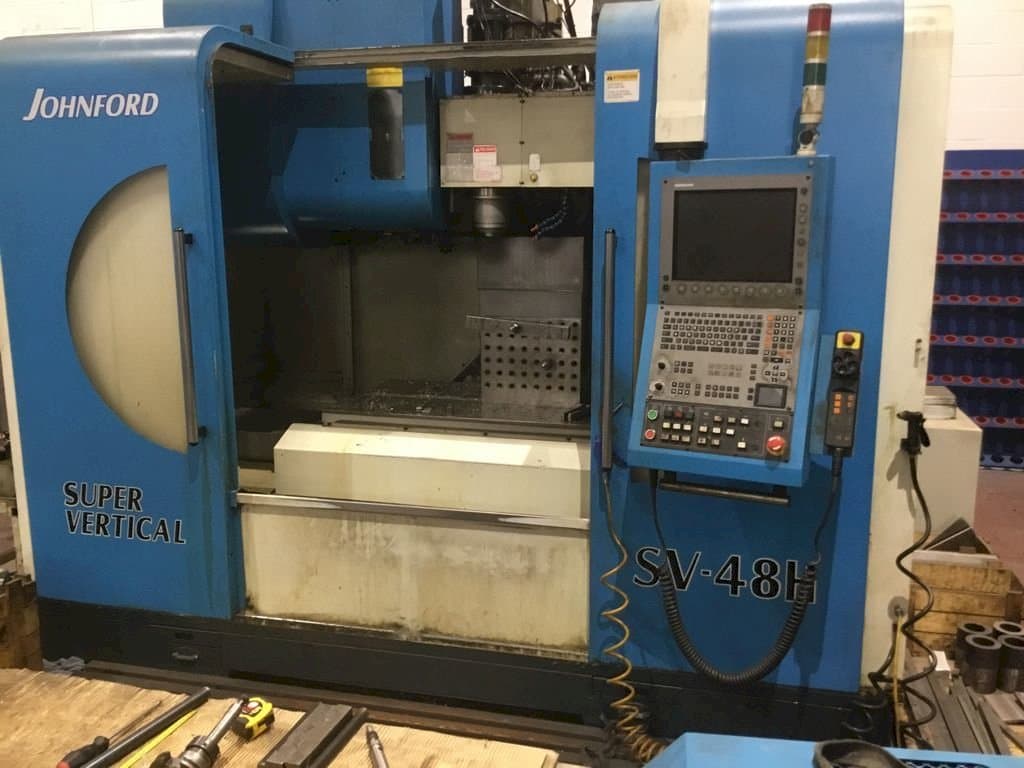

This Johnford SV-48H Vertical Machining Center was built in the year 2008 in Taiwan. It operates through a HEIDENHAIN 530 control unit. This 3 axis machine can work with a spindle speed up to 6000 rpm. It has only been used by two brothers. This machine is very well maintained and works with very good precision.
Overview
- brand: Johnford
- year: 2008
- MODEL: SV-48H
- application type: Milling
- Location: Spain
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - Johnford SV-48H
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: 530
Dimensions
- Machine Depth: 3200 mm
- Machine Weight: 10000 kg
- Table Length: 1300 mm
- Table Width: 700 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1220 mm
- Y-axis Travel: 710 mm
- Z-axis Travel: 630 mm
Technical Specification
- Max. Tool Weight: 15 kg
- Spindle Speed: 6000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Good status
- Maintenance
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
