➤ Used KAFO HMC-500 For Sale | gindumac.com

Show in original language

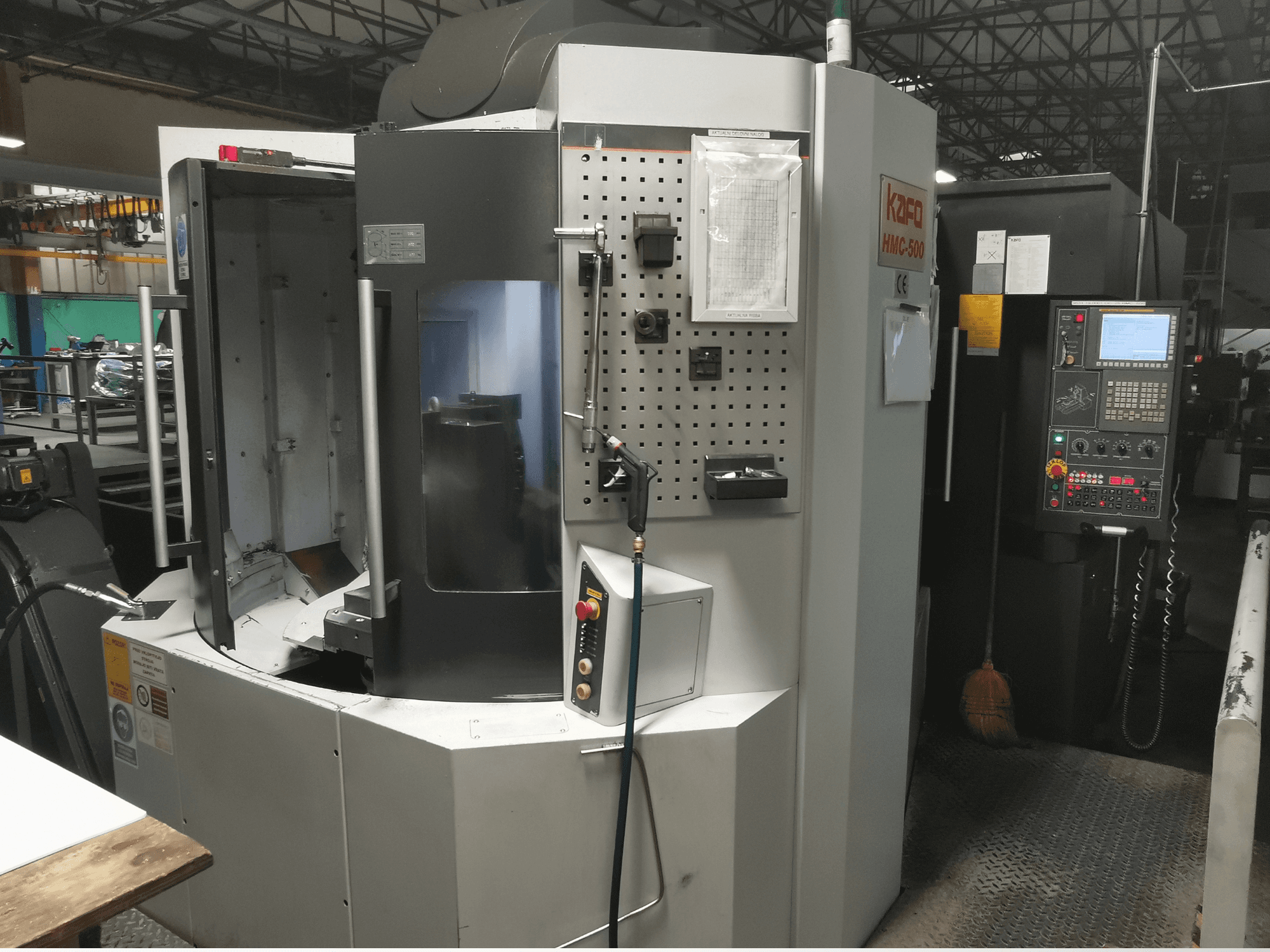

This 4-axis KAFO HMC-500 was manufactured in 2019 and features a robust FANUC 0i-F control unit. With a spindle speed of up to 10,000 rpm and a tool magazine capacity of 40 tools, it ensures efficient machining. The machine has a pallet size of 500x500 mm and a maximum workpiece size of Ø700 mm by 800 mm. Consider the opportunity to buy this KAFO HMC-500 horizontal machining centre. Contact us for more information about this machine.

Overview

brand: KAFO
year: 2019
MODEL: HMC-500
production hours: 10458
application type: Milling
Location: Slovenia
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - KAFO HMC-500

Control Unit

Control Brand: FANUC
Control Model: oi-F

Additional Information

Production Hours: Power On Time: 26225 h, Run Time: 12983 h, Cutting Time: 10458 h, Free Purpose Time: 5548 h
Power Supply: 3×380 V, 50–60 Hz
Full Load Amp: 125 A
Hydraulic Pressure: 50 kg/cm²
Short Circuit Rating: 5 kA
Weight: 13000 kg
Spindle Speed: Max. 10000 rpm
Spindle Power: 25–30 kW
Tool Taper: BT-40
Axis Travels: X-axis: 720 mm, Y-axis: 650 mm, Z-axis: 650 mm
Rapid Traverse (X/Y/Z): 24 / 24 / 18 m/min
Cutting Feedrate: 10 m/min
Axis Motors: X-axis motor: 7.5 kW, Y-axis motor: 6 kW, Z-axis motor: 4 kW, B-axis motor: 4 kW
Max. Workpiece Size (Diameter / Height): Ø 700 mm / 800 mm
Pallet Size: 500 × 500 mm
Pallet Load Capacity: 800 kg
APC Pallet Change Time: 10 s
B-axis Indexing: 0.001°
Tool Magazine Capacity: 40 tools
Max. Tool Diameter: Ø 90 mm
Max. Diameter Without Adjacent Tools: Ø 250 mm
Max. Tool Length: 400 mm
Max. Tool Weight: 20 kg
Chip-to-Chip Time: 2 s
Tool-to-Tool Time: 1 s
Table to Floor: 1246 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
