➤ Used SCHMID SE 371 For Sale | gindumac.com

Show in original language

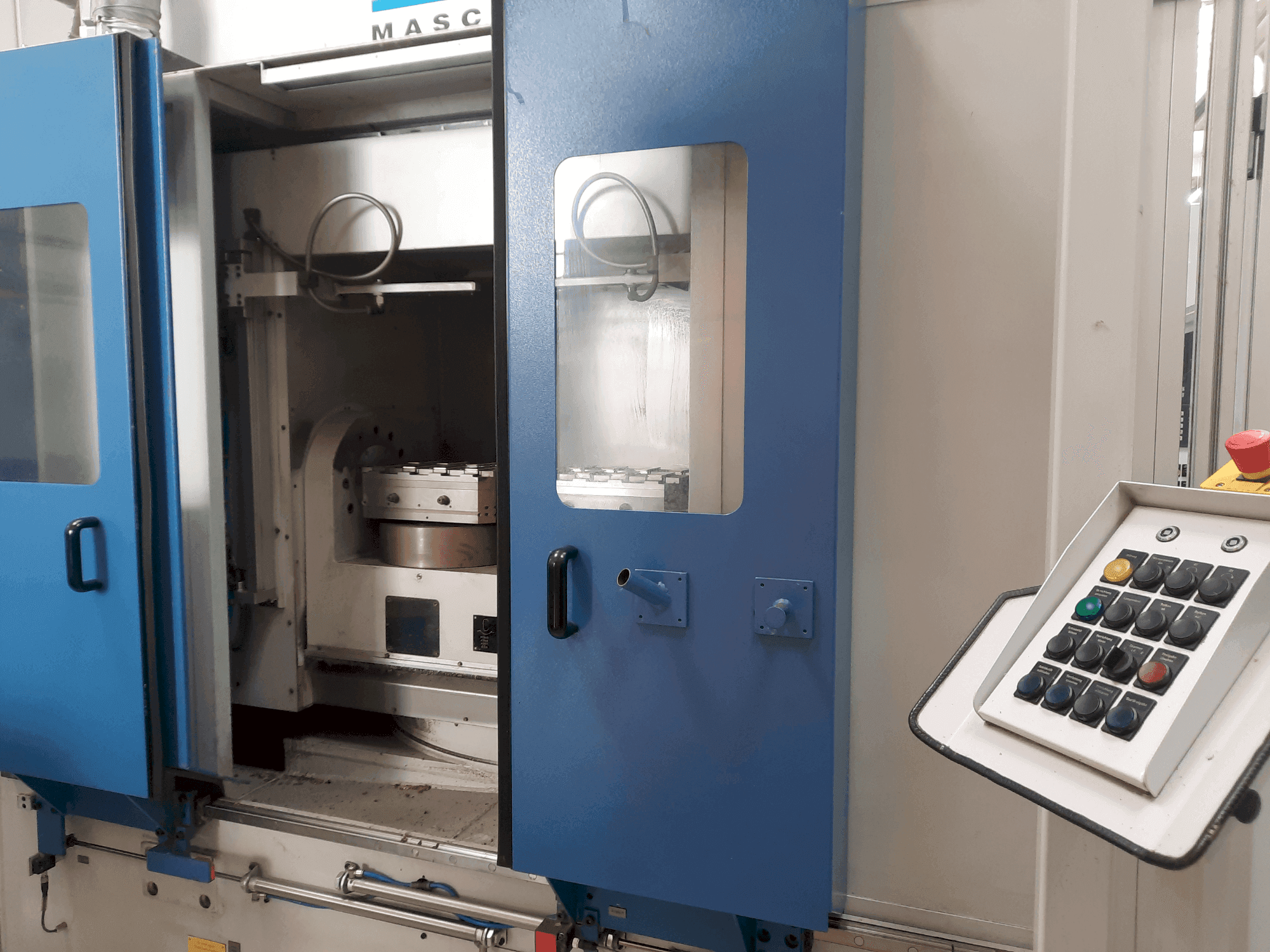

This 5-axis SCHMID SE 371 horizontal machining centre was manufactured in 2019. It features a Siemens Sinumerik 840 D SL control system, a shuttle table, and a 30-position tool changer with HSK-A63 tool holders. Additional highlights include a chip conveyor by Knoll and a recooling system by Lahntechnik. A great opportunity to buy this SCHMID SE 371 horizontal machining centre. Contact us for further details regarding this horizontal machining centre.

Overview

brand: SCHMID
year: 2019
MODEL: SE 371
production hours: 5936
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
control unit brand: SIEMENS

Technical Information - SCHMID SE 371

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 840 D SL

Dimensions

Machine Weight: 10000 kg

Movement

Number of Axes: 5
X-axis Travel: 715 mm
Y-axis Travel: 400 mm
Z-axis Travel: 500 mm

Technical Specification

Max. Tool Weight: 8 kg
Spindle Speed: 10000 RPM

Additional Information

Additional equipment

Shuttle table
2x NC rotary swivelling unit
Chip conveyor Knoll 600K-1/II 2019
Filter system
Recooling system Lahntechnik KOF1803-100 2020
Hydraulic unit
Switch and control cabinets
Rotary table rotation axes NC/hydr. clamping : 360 x n° degrees
Rotary table diameter : 284 mm,

Machine Benefits

Qualitative Machine Benefits

Digital inverter system
Space requirement incl. Operation : approx. 3. 5 x 5 m2
The machine ran dry / without coolant. The machine has a profibus interface. Special schmid chucks are currently installed. Part-specific, hydraulic.

Technical Machine Benefits

Swivelling range: -22/+95°
Traverse range x - y - z : 715 - 400 - 500 mm
Three-phase main drive : 20/26 kw at s1 100% / s6 40% ed
Key performance data working spindle kw / s1 / s6 : 0. 5/0. 7 10/14 20/26 20/26
Spindle speeds approx. 1/min : 50 1,000 1,850 10,000
Torque approx. Nm s1/s6 : 100/135 100/135 100/135 24/31
Acceleration x - y - z : 4-6-9 m/sec2
Tool change time : approx. 2. 5 sec.
Horizontal swivelling range nc/hydr. Clamping : - 22° / + 95° degrees
Centre distance of the rotary axes / chuck : 430 mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
