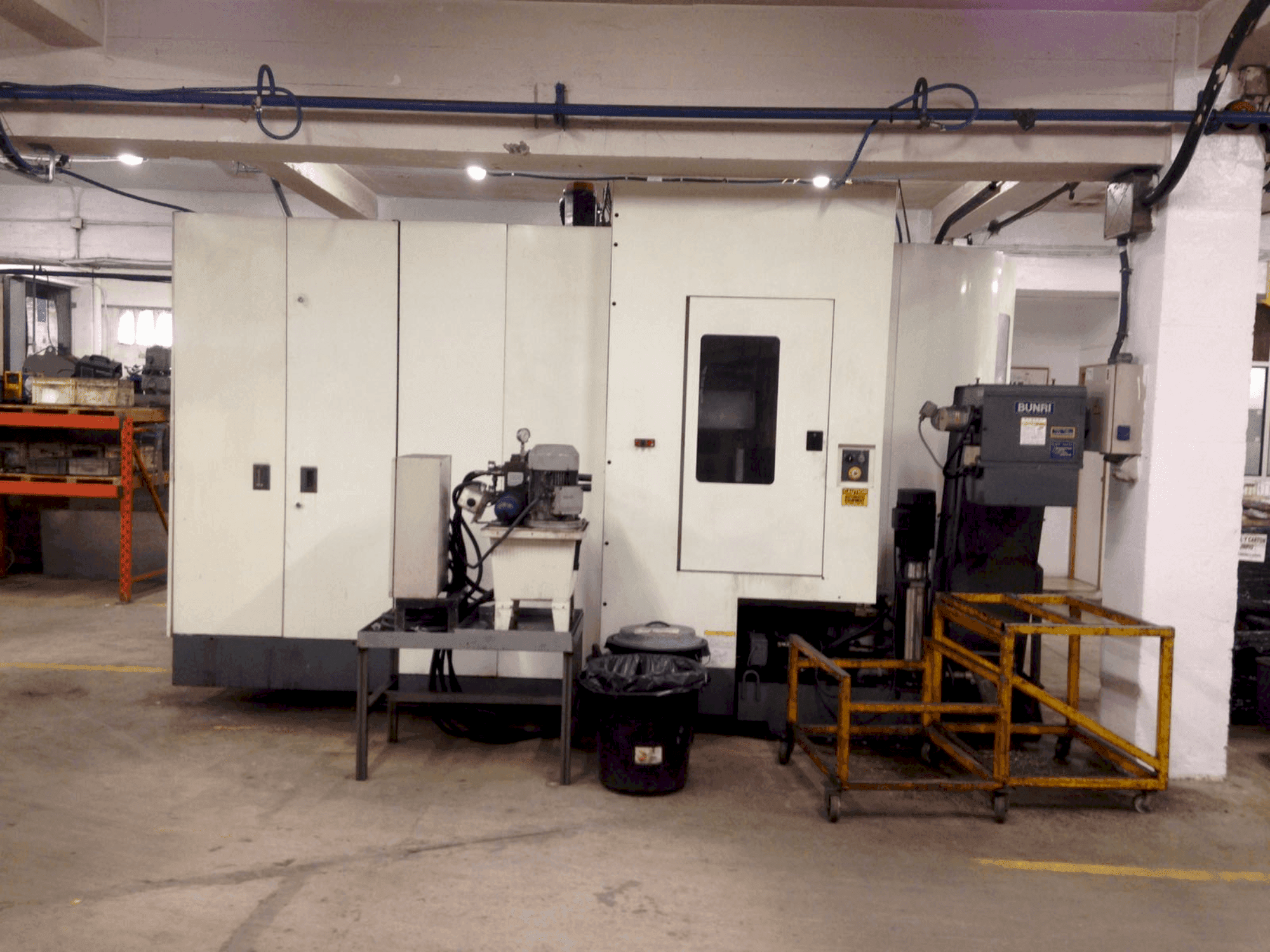

Front view of Kitamura HX400I  machine

Kitamura - HX400IES-MIL-KIT-2001-00001

25,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis Kitamura HX400I horizontal machining center was manufactured in 2001. It features a table work area of 400 x 400 mm, a maximum work size of 610 x 960 mm, and a table load capacity of 400 kg. The machine includes a tool storage capacity of 50 tools with a random selection method. Ideal for complex machining tasks, the Kitamura HX400I machine we have for sale. Contact us for further details regarding this horizontal machining center.

Overview

  • brand: Kitamura
  • year: 2001
  • MODEL: HX400I
  • application type: Milling
  • Location: Spain
  • machine type: Machining centers (horizontal)
  • availability: Immediately

Technical Information - Kitamura HX400I

General Data

  • Machine weight: 16,000 KG

Main drive

  • Spindle speed range: 35-13,000 1/MIN
  • Tool taper: NST NO.40

Movement

  • X-AXIS Movement: 660 mm
  • X-AXIS Rapid traverse: 50 mm/min
  • Y-AXIS Movement: 610 mm
  • Z-AXIS Movement: 560 mm

Workpiece

  • Workpiece x: Max 610 mm
  • Workpiece y: Max 960 mm

Table

  • Outer length: 400 mm
  • Outer width: 400 mm
  • Min distance between vertical spindle and table: 50 mm
  • Max distance between vertical spindle and table: 660 mm
  • Table load: 400 kg

Tools

  • Slots in storage: 50
  • Max weight: 10 kg
  • Max tool diameter: 95 mm

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Table indexing 4th axis: 0. 001º
      • - Distance from table center to spindle nose: 150 - 710 mm
      • - Tool selection method random, tool identified at magazine
      • - Max. Tool size: 95 mm x 360mm
      • - High precision 4th axis indexing, large tool storage capacity.
      • - Tool change time: 1 sec
    • Qualitative Machine Benefits:
      • - Accommodates a variety of workpieces, precise positioning capabilities.

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
