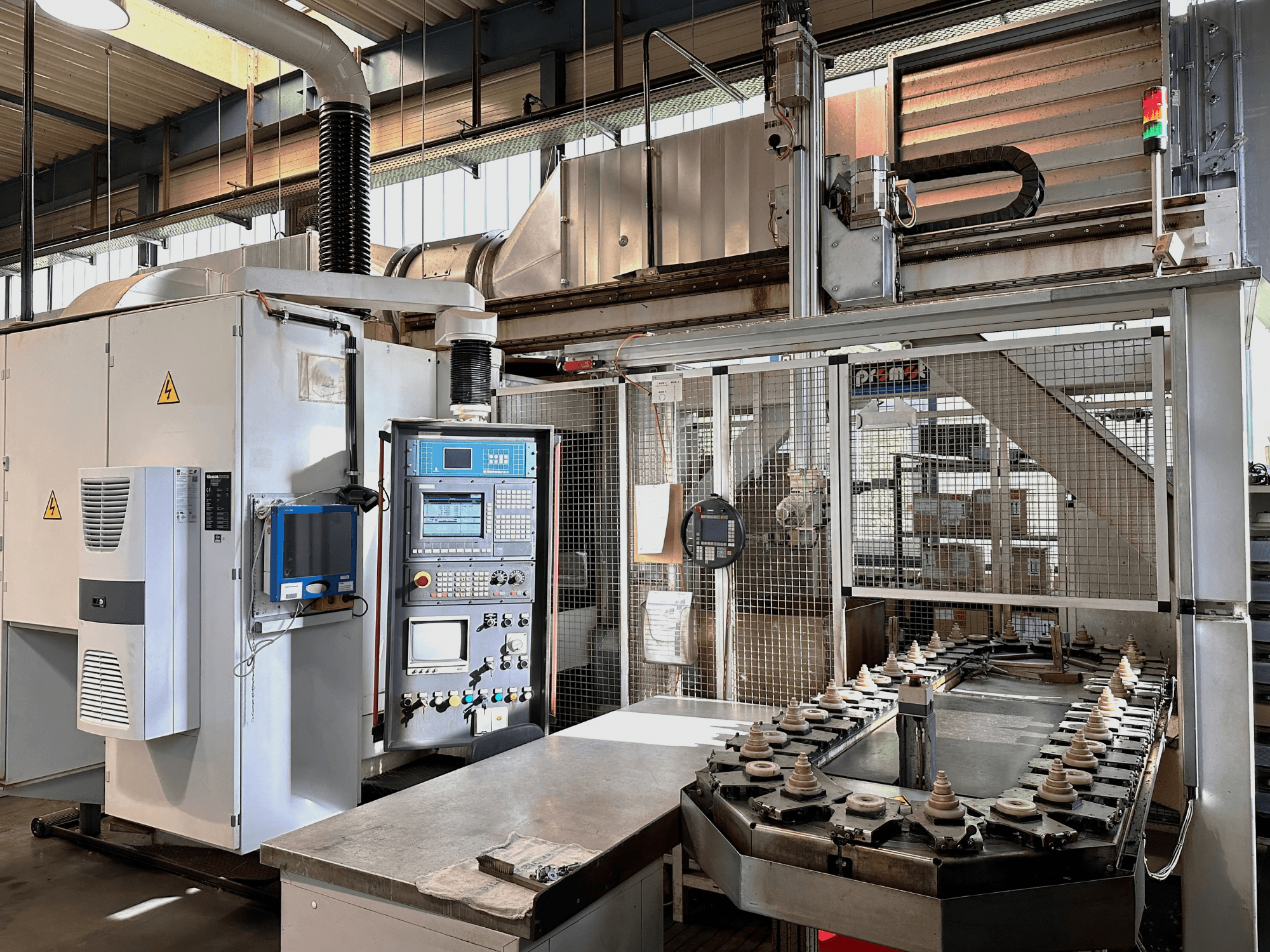

Gleason PFAUTER - G320 CNC + Promot AutomationDE-MIL-GLE-2001-00001

• Operator panel: included

• Module range: 0.5–7.0

• Workpiece diameter: min 10 mm, max 380 mm

• Number of teeth: 10–600

• Axis travels: Z (vertical) 200 mm; X (horizontal) 230 mm; Y (tangential/shift) 135 mm

• Clamping head swivel (A): ±45°

• Tailstock stroke: 125 mm

• Dressing travels: V (tangential) 180 mm; U (radial) 110 mm

• Grinding wheel speed: up to 3000 rpm, stepless

• Linear axis speed: 10,000 mm/min

• Max. table rotation speed: 240 rpm

• Table resolution: 0.001°

• Feeds: machining and working feeds stepless

• Grinding wheel dimensions: diameter 270–350 mm; width up to 104 mm; bore 160 mm

• System weight: approx. 11,500 kg

• Space required (machine): approx. 3.7 m × 2.4 m × 2.75 m

Additional equipment

• Promot Automation handling unit (robotics handling)

• Operator panel/handheld (for automation)

• Conveyor belt

• Cooling belt system

• Hydraulic unit

• Space required (automation): approx. 4.5 m × 1.6 m × 4.0 m
