KNUTH HFS 2550 VC Grinding machine

Show in original language

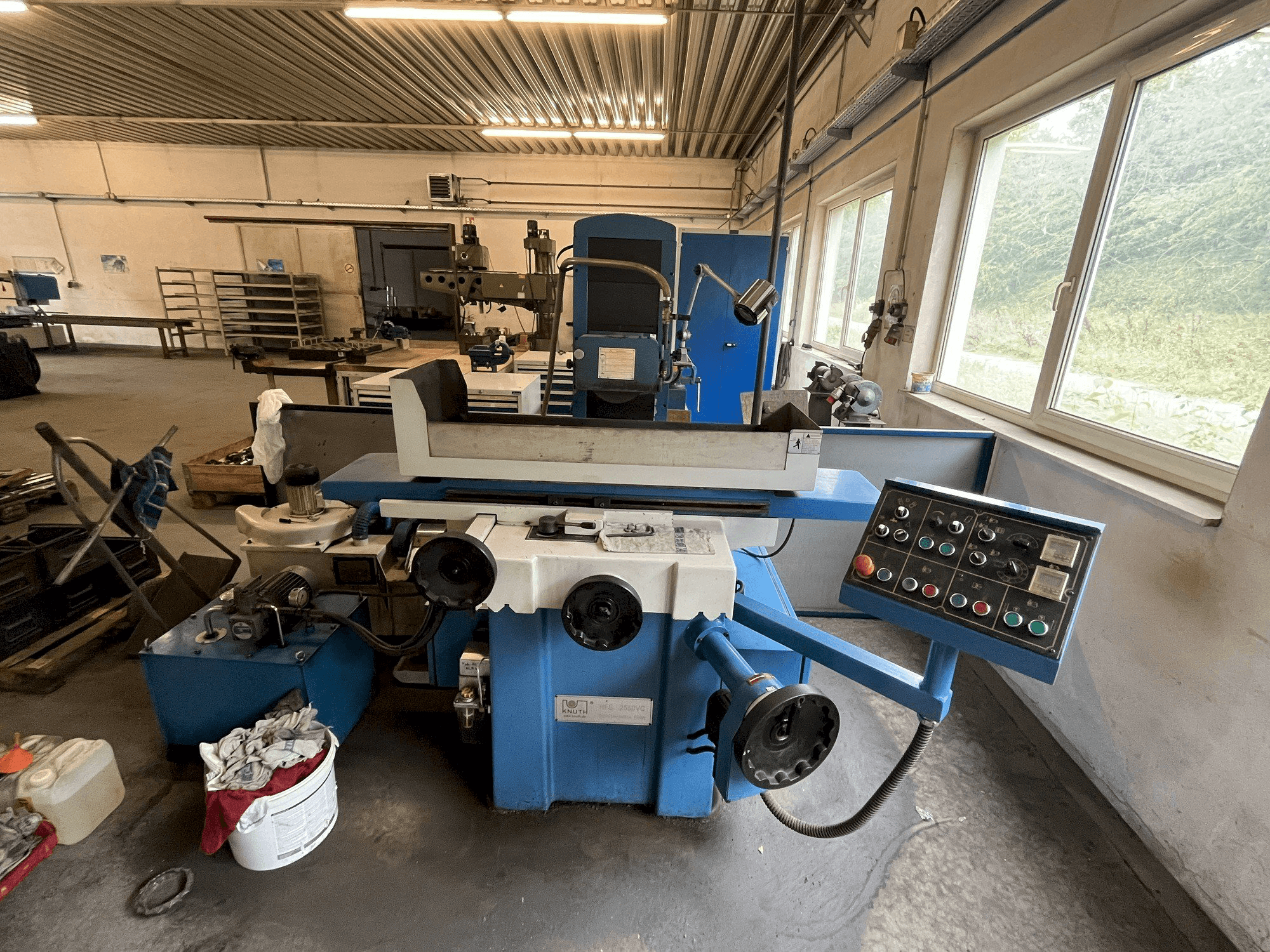

This KNUTH HFS 2550 VC Grinding machine was manufactured in the year 2008 in Germany.

Overview

brand: KNUTH
year: 2008
MODEL: HFS 2550 VC
application type: Grinding
Location: Germany
machine type: Grinding machines
availability: Sold
GINDUMAC ID: DE-GRI-KNU-2008-00001

Technical Information

General Data

Measurements width: 2650 mm
Measurements depth: 2150 mm
Measurements height: 1675 mm
Machine weight: 1800 kg

Movement

X-AXIS Movement: 560 mm
Y-AXIS Movement: 275 mm

Table

Outer length: 250 mm
Outer width: 500 mm
Table load: 180 kg

Additional Equipment

- Coolant tank, fan
- A device with a dressing diamond is included in the accessory box. Of course, the dressing is done on the machine

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Grinding wheels dimensions 200 x 20 x 31,75 mm
- - Spindle axis-to-table surface distance 450 mm
- - Scale ring division y-axis 0,02 mm
- - Scale ring division z-axis 0,005 mm
- - Autom. Transverse feed 0,1 - 8 mm
- - Autom. Vertical feed 0,005 - 0,05 mm
- - Hydr. Feed x: 7 - 23 m/min, rapid feed: y-axis: 990 mm/min, rapid feed z-axis: 460 mm/min, drive capacity, motor rating grinding spindle: 2,2 kw, motor rating servo drive: 0,5 kw
- - Coolant tank
- - Various accessories
Qualitative Machine Benefits:
- - The surface grinding machine has an automatic vertical infeed
- - The magnetic plate belongs to the machine furthermore the machine also has a magnetic coolant cleaning system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
