➤ Used KOVOSVIT MAS MCV 500 For Sale | gindumac.com

Show in original language

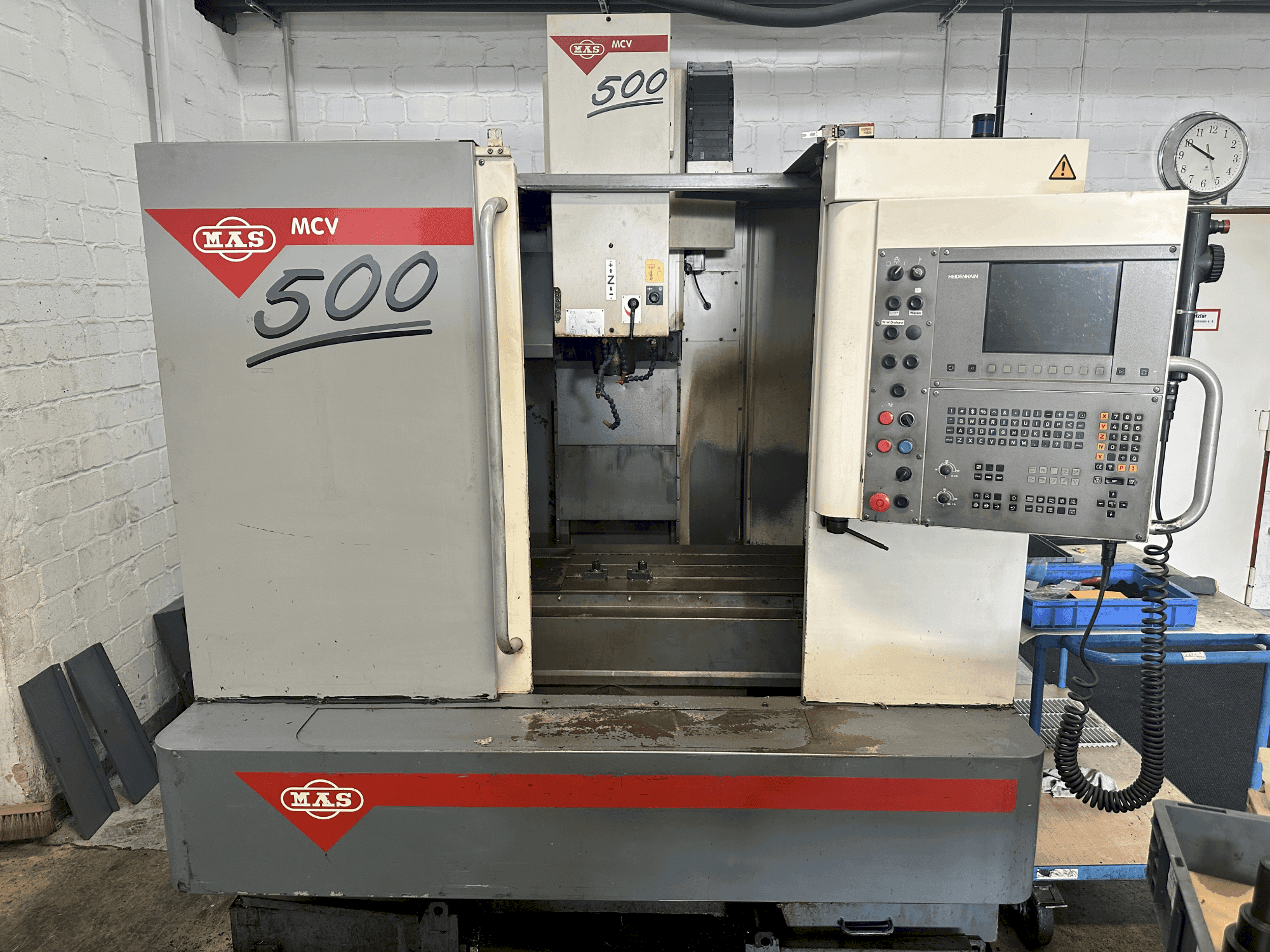

This 3-axis KOVOSVIT MAS MCV 500 vertical machining centre was manufactured in 2002. It features a robust table with dimensions of 800x500mm, capable of handling a maximum load of 400kg. The spindle supports a speed range of 20-8000 rpm and a rapid feed of 25000 mm/min. The tool magazine holds 20 positions. Ideal for precision machining, the KOVOSVIT MAS MCV 500 machine we have for sale. Contact us for further details regarding this vertical machining centre.

Overview

brand: KOVOSVIT MAS
year: 2002
MODEL: MCV 500
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - KOVOSVIT MAS MCV 500

Dimensions

Machine Depth: 2320 mm
Machine Height: 2560 mm
Machine Weight: 3800 kg
Table Load: 400 kg

Movement

Number of Axes: 3
X-axis Travel: 500 mm
Y-axis Travel: 500 mm
Z-axis Travel: 500 mm

Technical Specification

Spindle Speed: 8000 RPM

Additional Information

Additional equipment

Diameter when drilling into solid steel with strength 600 MPa with drill made of RO: 25 mm
Tool Shanks: CSN 220434
Spindle Diameter for Bearing: 70 mm
Spindle Distance from Table Surface: 150-650 mm
Rapid Feed: 25000 mm/min
Feed Rate: 1-5000 mm/min
Working Pressure: 0.6 MPa
Tool Magazine: Max. tool diameter: 80 mm, Max. tool weight: 6 kg, Max. tool weight in magazine: 60 kg

Machine Benefits

Qualitative Machine Benefits

Robust construction with a maximum table load of 400 kg, efficient operation with rapid feed of 25000 mm/min

Technical Machine Benefits

Table size: 800 x 500 mm
Width and pitch of t-slots: 18/125 mm

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
