➤ Used KOVOSVIT MAS OPTIMAT A50CA For Sale | gindumac.com

Show in original language

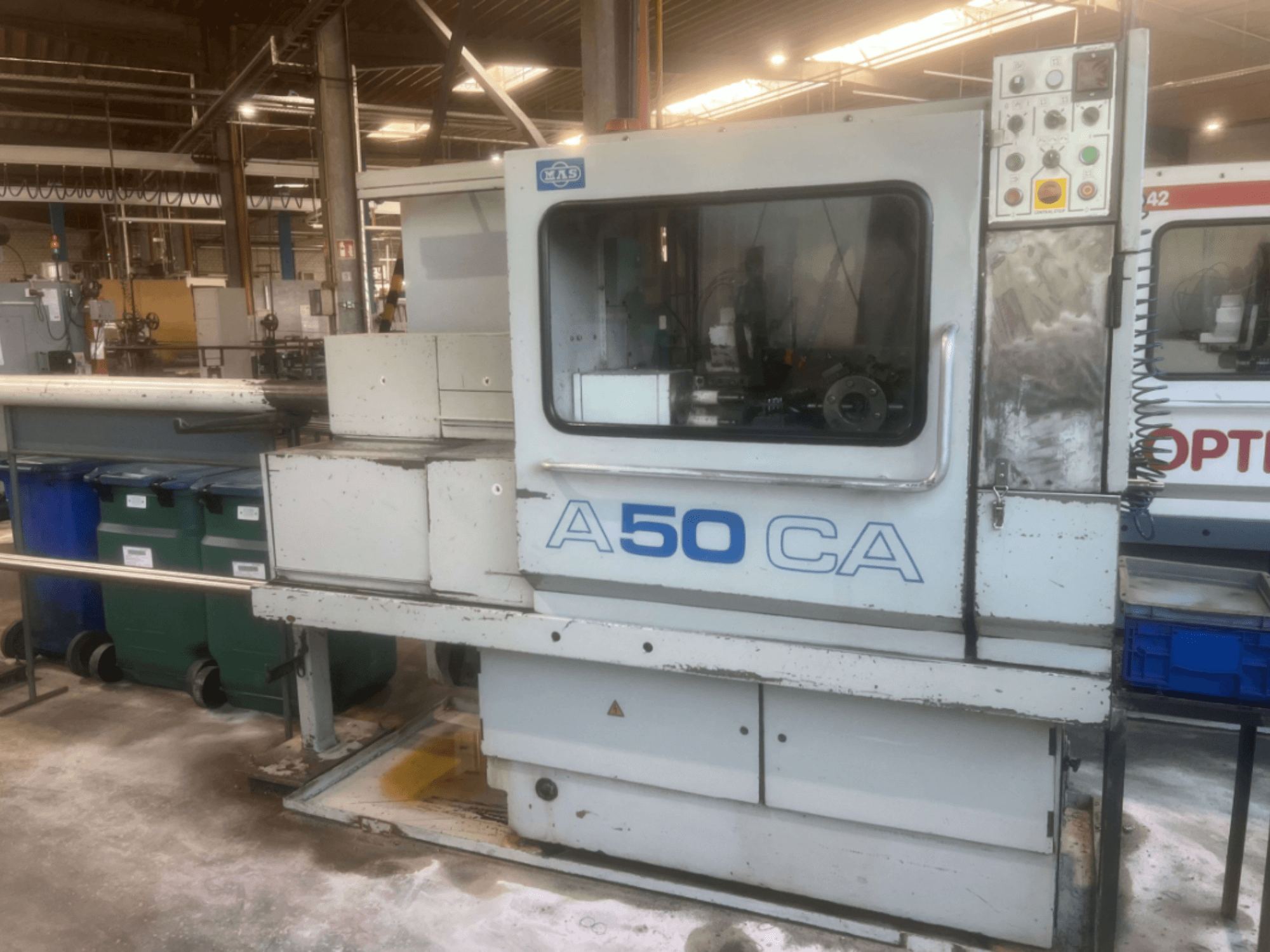

Horizontal turning machine manufactured in 1994. This KOVOSVIT MAS OPTIMAT A50CA features a robust design with a machine weight of 2490 kg. It includes essential equipment such as a bar feeder guide channel system and a tool turret assembly. If you are looking to get high-quality turning capabilities, consider the KOVOSVIT MAS OPTIMAT A50CA machine we have for sale. Contact us for further details.

Overview

brand: KOVOSVIT MAS
year: 1994
MODEL: OPTIMAT A50CA
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - KOVOSVIT MAS OPTIMAT A50CA

Dimensions

Machine Weight: 2490 kg

Movement

Number of Axes: 2
X-axis Travel: 220 mm
Z-axis Travel: 500 mm

Technical Specification

Counter Spindle: No
Driven Tools: No
Spindle Speed: 2244 RPM
Tool Stations: 6

Additional Information

- Main Voltage: 3 x 380 V

- Current: 25 A

- Frequency: 50 Hz

- Control Voltage: 24 V DC / 110 V AC

- Enclosure Protection Rating: IP 54 / IP 20

- Technical Standard: ČSN 33 2200

- Control: Curve

- Spindle diameter: 52 (60) mm

- Spindle speed: 68 – 2,244

- Number of tools: 4 side-cutting slides

- 6 tool stations on the turret

- Included Equipment: Bar feeder guide channel system, coolant piping hoses, work area enclosure guarding with viewing window, tool turret assembly

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
