➤ Used Krauss Maffei 160-750 EX Injection Moulding Machine

Show in original language

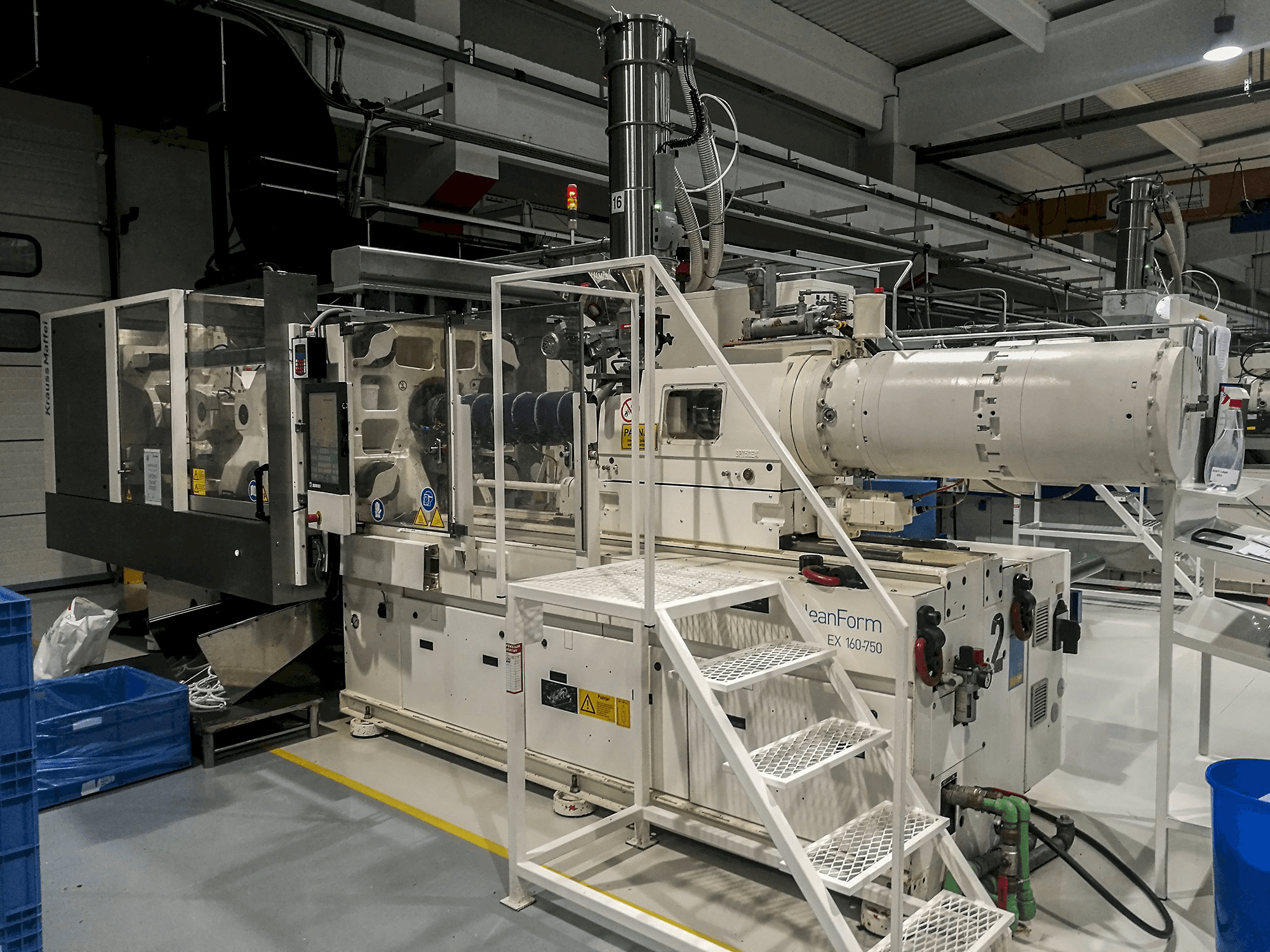

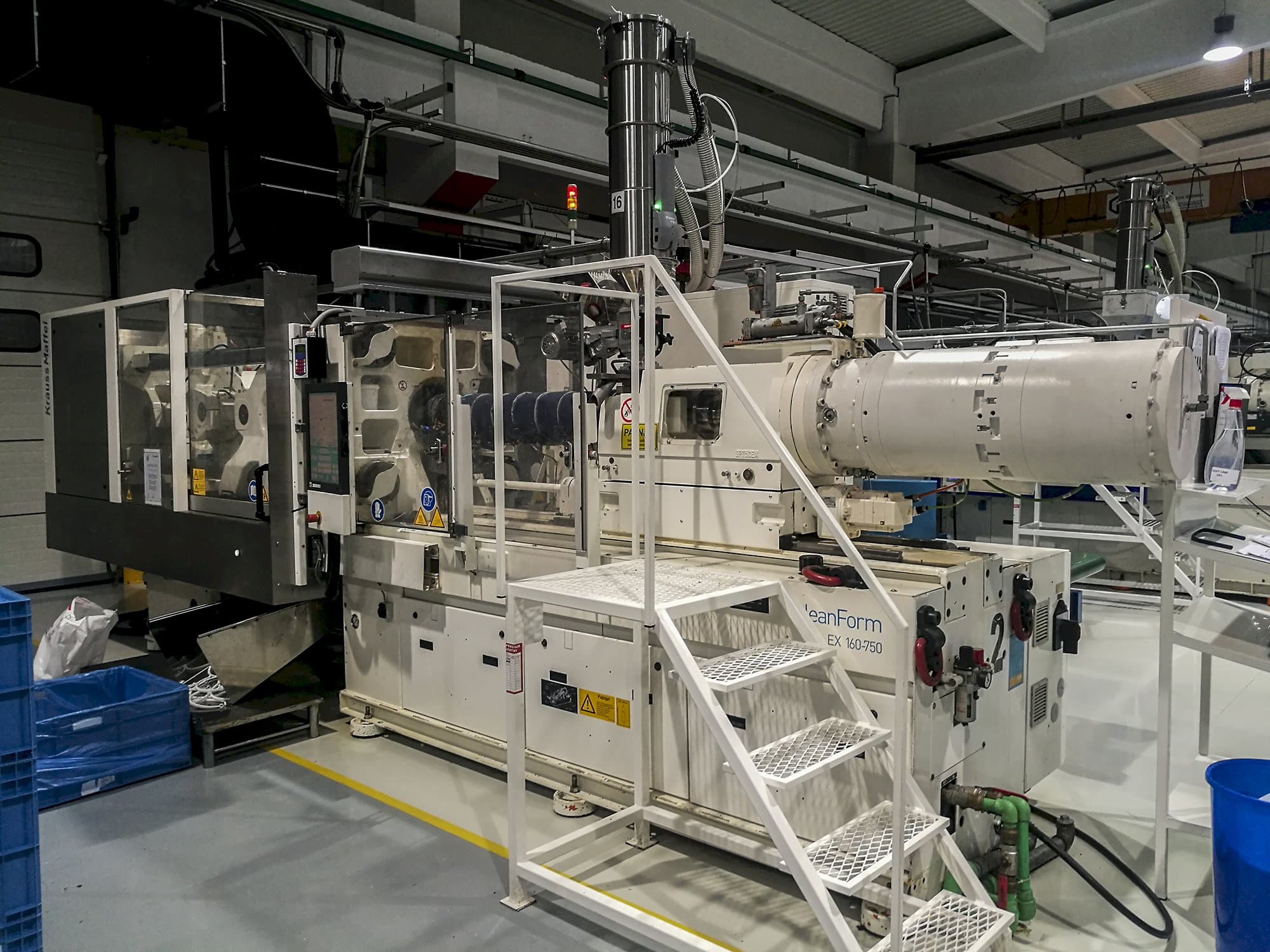

This Krauss Maffei 160-750 EX Injection Moulding Machine was made in Germany in 2012 and has a production time of 34168 production hours. Operated through a Krauss Maffei MC5 Control unit, this model is ready to work with robots and manipulators for finished work pieces and stands out due to a low energy consumption for production cycles with less than 8 seconds of duration. The machine is in perfect conditions and was regularly serviced.

Overview

brand: Krauss Maffei
year: 2012
MODEL: 160-750 EX
production hours: 34168
application type: Injection Moulding
Location: Bosnia and Herzegovina
machine type: Electrical Injection Moulding Machine
availability: Sold
control unit brand: KRAUSS MAFFEI

Technical Information - Krauss Maffei 160-750 EX

General Data

Measurements width: 8000 mm
Measurements depth: 1800 mm
Measurements height: 2000 mm
Machine weight: 11350 kg

Control Unit

Model: MC 5
CNC main language: Croatian
CNC language customizable: Yes
Brand: KRAUSS MAFFEI

Injection Unit

Screw diameter: 50 mm
Shot weight: 343 g/PS
Stroke volume: 377 cm3 CM³
Injection pressure: 1892 bar
Plasticizing rate max.: 62.6 g/s PS
Screw speed: 458 1/min
Heating capacity: 15.6 kW
Adjustable heating zones: 5

Clamping unit

Clamping force: 1600 kN
Opening stroke: 450 mm
Distance between bars: 520x520 mm
Mould height min: 300 mm
Mould height max: 550 mm
Ejector stroke: 150 mm
Ejector force for / back: 22 kN

Media

Main electronic connection: 380 V
Power consumption: 14 kVA
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
