KREWEMA HFDM 40

Photo Gallery

KREWEMA - HFDM 40DE-TUR-KRE-1990-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used KREWEMA HFDM 40 For Sale | gindumac.com

Show in original language

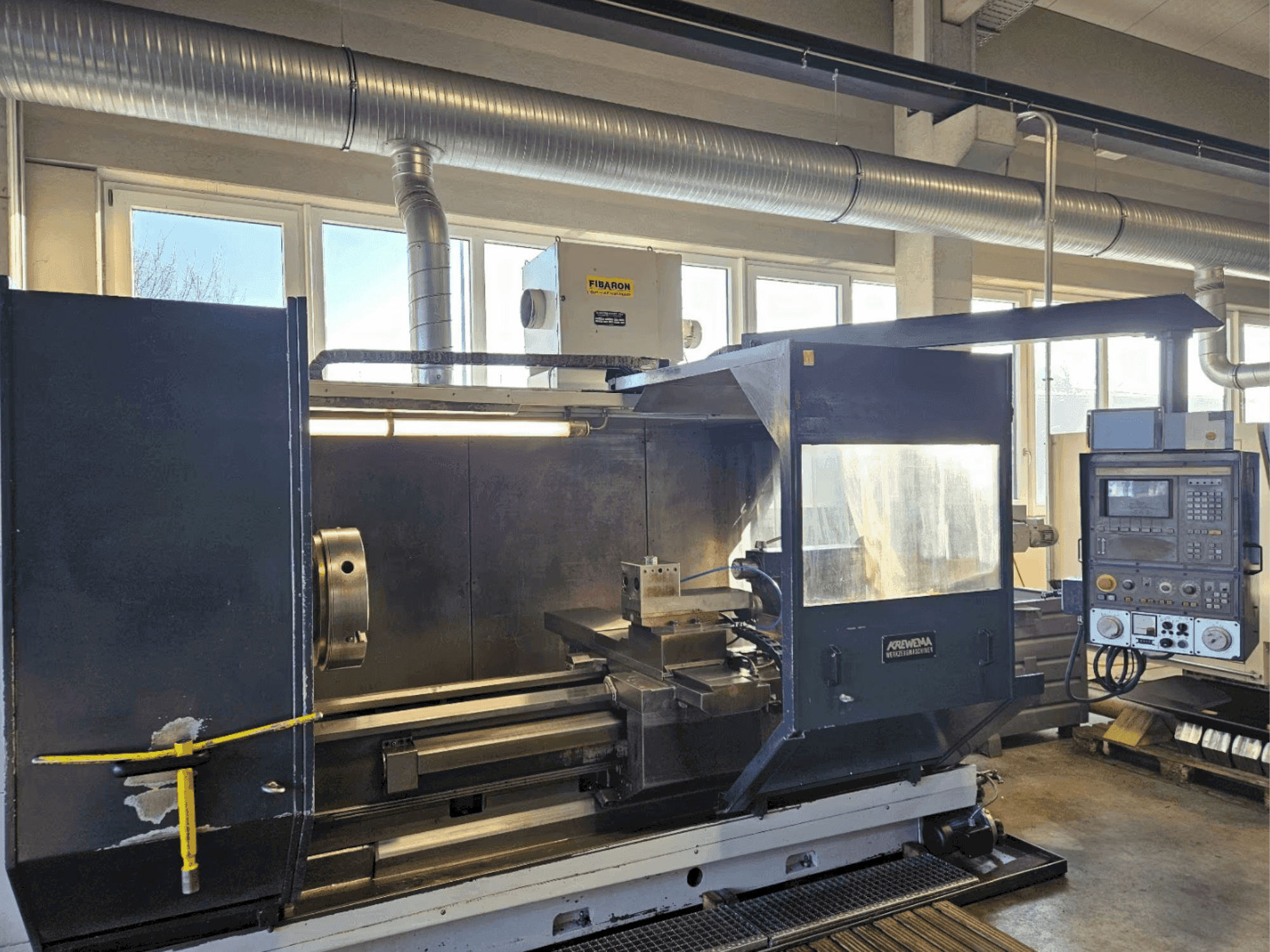

This KREWEMA HFDM 40 was manufactured in 1990. It features a motor-driven, extendable machine bed, reinforced main spindle bearings, and a Z-axis travel of 1500 mm plus an additional 1000 mm via the machine bed. The turning diameter reaches up to Ø1200 mm, with a center height of 410 mm. It includes a 3-jaw Schunk chuck Ø500 mm and is equipped with a Siemens Sinumerik 810T control system. Contact us for more information about this machine.

Overview

brand: KREWEMA
year: 1990
MODEL: HFDM 40
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - KREWEMA HFDM 40

Control Unit

Control Brand: SIEMENS
Control Model: Sinumerik 810T

Dimensions

Machine Weight: 6500 kg

Movement

Z-axis Travel: 1500 mm

Technical Specification

Spindle Power: 30 kW
Spindle Speed: 1400 RPM

Additional Information

Machine Benefits

Technical Machine Benefits

Distance between centers: max. 2500 mm
Turning diameter max. : Ø1200 mm
Turning diameter over bed max. : Ø800 mm // turning diameter over slide max. : Ø500 mm
Center height: approx. 410 mm
Faceplate max. Ø1200 mm possible (not included in the offer)
3-jaw schunk chuck Ø500 mm (including one set of hard jaws)
Tailstock
Lynette max. Ø400 mm
Tool holder for vdi40 and 2" boring bars (Ø58 mm)
Vdi40 tool holders (see photos for the number and type included in the offer – tools not included)

Extra Information

Design with reinforced main spindle bearings Motor-driven, extendable machine bed Original KREWEMA and Siemens documentation Backup file for control system available The machine is still in operation and can be inspected by appointment.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
