LAGUN GVC 1000
LAGUN - GVC 1000
2005
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Lagun GVC 1000 Machining Center

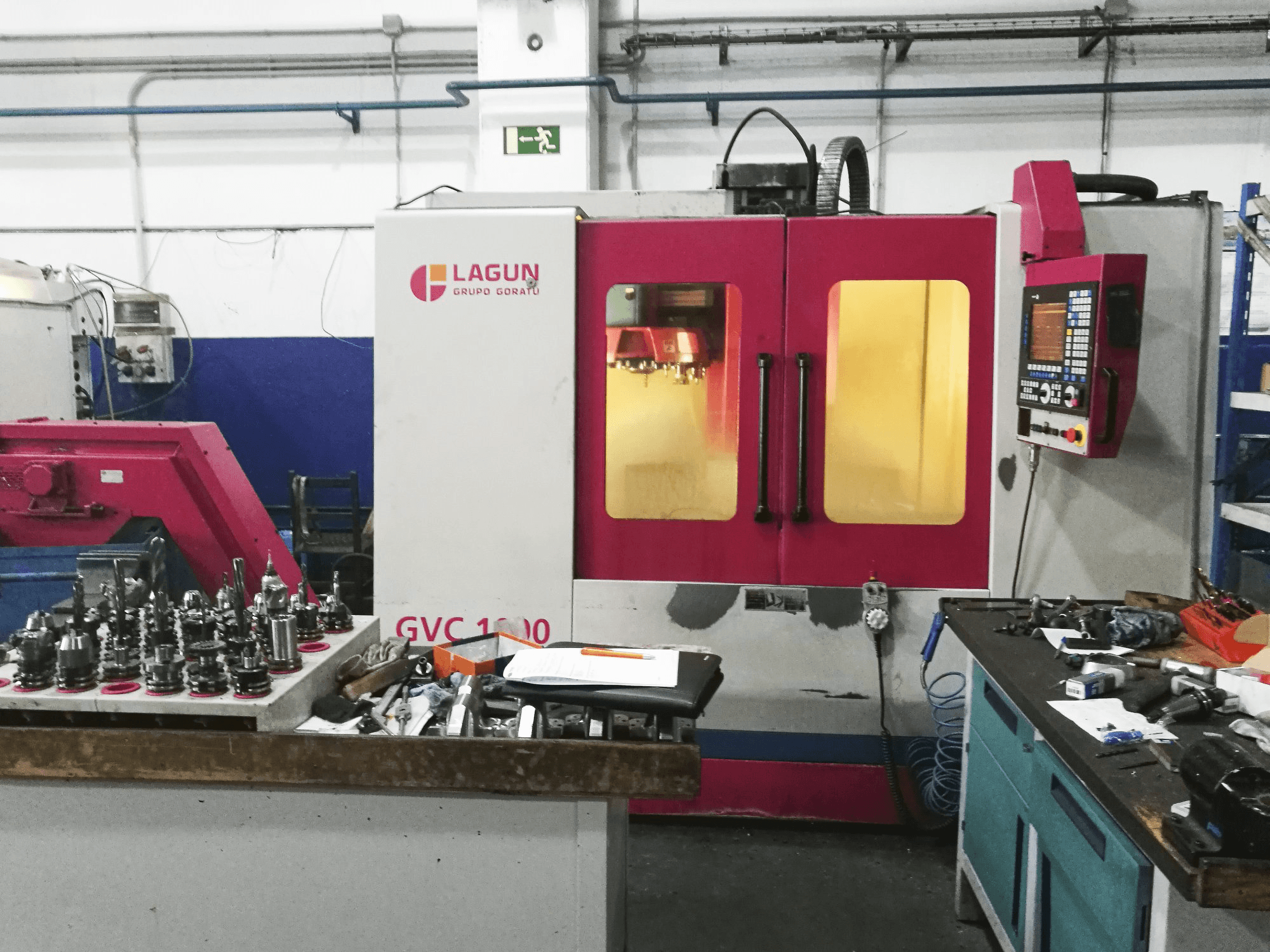

This Lagun GVC 1000 Machining Center from 2005 has a production record of 6000 working hours. Operated through a Fagor 8055 Power Control unit (version of 2016, with remote control), the GVC 1000 stands out for its internal cooling system and offers the possibility to connect to Internet via RJ45. Additionally, its fast tool change and prismatic guides makes this robust model an excellent choice amongst Machining Centers. In the past, this machine has mainly produced special pieces for the Machine tool industry. The equipment is still under a maintenance contract, and had a Control unit replacement last year as well as a cone rectification in November 2016.
Overview
- brand: LAGUN
- year: 2005
- MODEL: GVC 1000
- production hours: 6000
- application type: Milling
- Location: Spain
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: Fagor
- GINDUMAC ID: ES-MIL-LAG-2005-00001
Technical Information
General Data
- Measurements width: 2600 mm
- Measurements depth: 2240 mm
- Measurements height: 2370 mm
- Machine weight: 6300 kg
Control Unit
- Brand: Fagor
- Model: 8055 Power
- Release: 2016
- Remote control: Yes
Main drive
- Number of spindles: 1
- Spindle speed range: 60-6000 1/min
- Spindle motor power: 13 kW
- Tool taper: BT-40
Movement
- X-AXIS Movement: 1000 mm
- X-AXIS Rapid traverse: 20000 mm/min
- Y-AXIS Movement: 500 mm
- Y-AXIS Rapid traverse: 20000 mm/min
- Z-AXIS Movement: 621 mm
- Z-AXIS Rapid traverse: 20000 mm/min
Workpiece
- Workpiece weight: 750 kg
Table
- Outer length: 1200 mm
- Outer width: 500 mm
- TSlots size: 20 mm
- Number of tslots: 3
- Distance between: 135 mm
Tools
- Slots in storage: 18
- Max weight: 8 kg
- Max tool diameter: 130 mm
- Max tool length: 300 mm
Media
- Air pressure: 6 bar
- Chip conveyor: Yes
- Internal cooling: Yes
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
