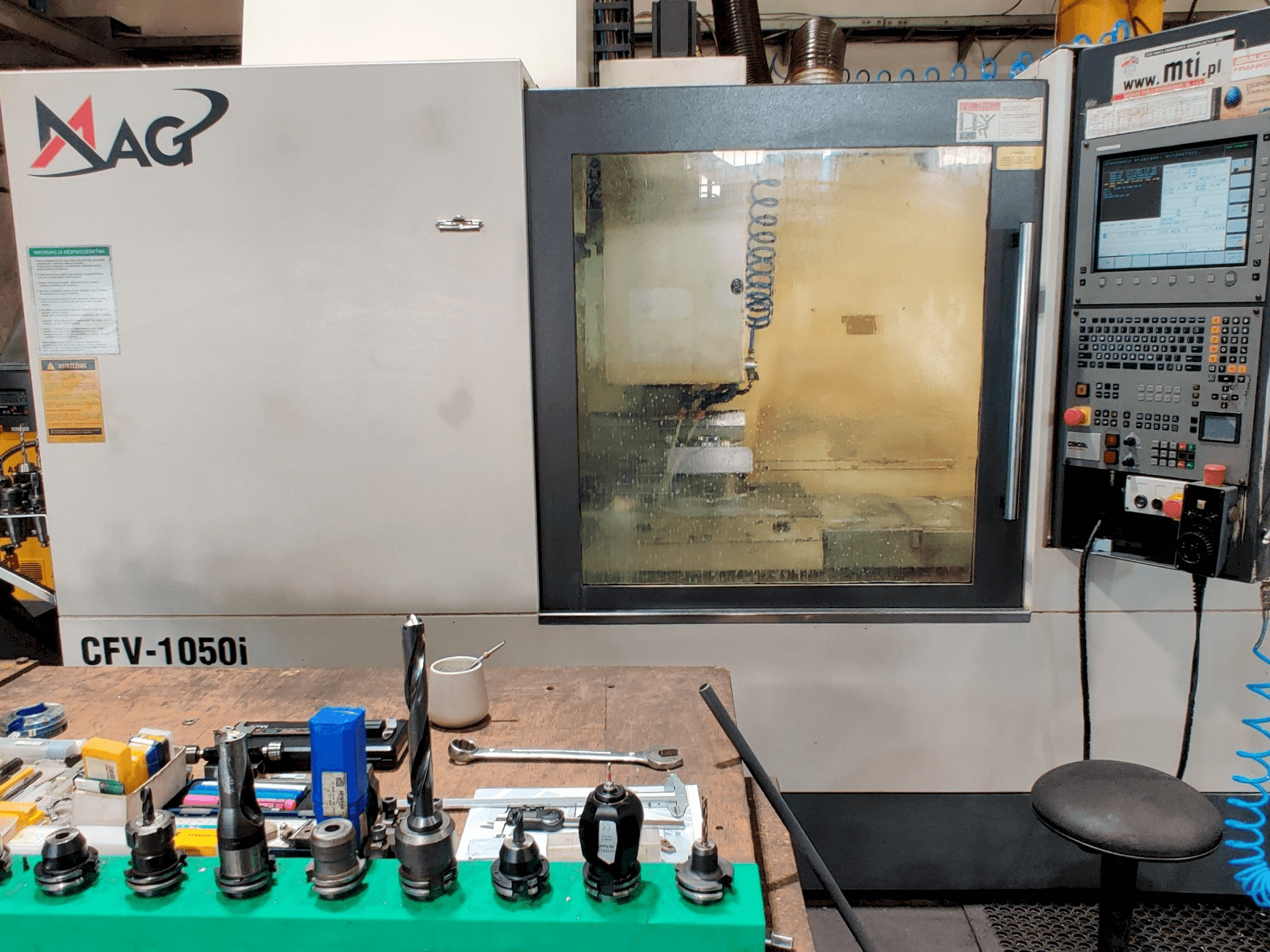

MAG CFV 1050 vertical machine center

Show in original language

This MAG CFV 1050 vertical machine center was manufactured in the year 2011 in Germany and has 38906 hours, of which 17858 are spindle hours. It is equipped with a HEIDENHAIN iTNC530 control unit and has 3 axis. The machine has a spindle speed of 10000 rpm and the possibility to connect 4-axis to numerical control.

Overview

brand: MAG
year: 2011
MODEL: CFV 1050
production hours: 38906
application type: Milling
Location: Poland
machine type: Machining centers (vertical)
availability: Sold
control unit brand: HEIDENHAIN
GINDUMAC ID: PL-MIL-MAG-2011-00001

Technical Information

General Data

Measurements width: 3400 mm
Measurements depth: 3000 mm
Machine weight: 5200 kg

Control Unit

Brand: HEIDENHAIN
Model: iTNC530

Main drive

Spindle speed range: 10000 1/MIN
Spindle motor power: 11 kW
Tool taper: SK-40
Number of axis: 3

Movement

X-AXIS Movement: 1050 mm
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 540 mm
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 720 mm
Z-AXIS Rapid traverse: 36 m/min

Workpiece

Workpiece weight: 1000 kg

Table

Outer length: 1120 mm
Outer width: 600 mm

Tools

Slots in storage: 30 pcs
Max weight: 6 kg
Max tool diameter: 70 mm
Max tool length: 300 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Number of t-slots: 5
- - Screw chip conveyor
- - Possibility to connect 4-axis to numerical control
- - High pressure pump 20 bar

Extra information

- There is no tooling included in the offer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
