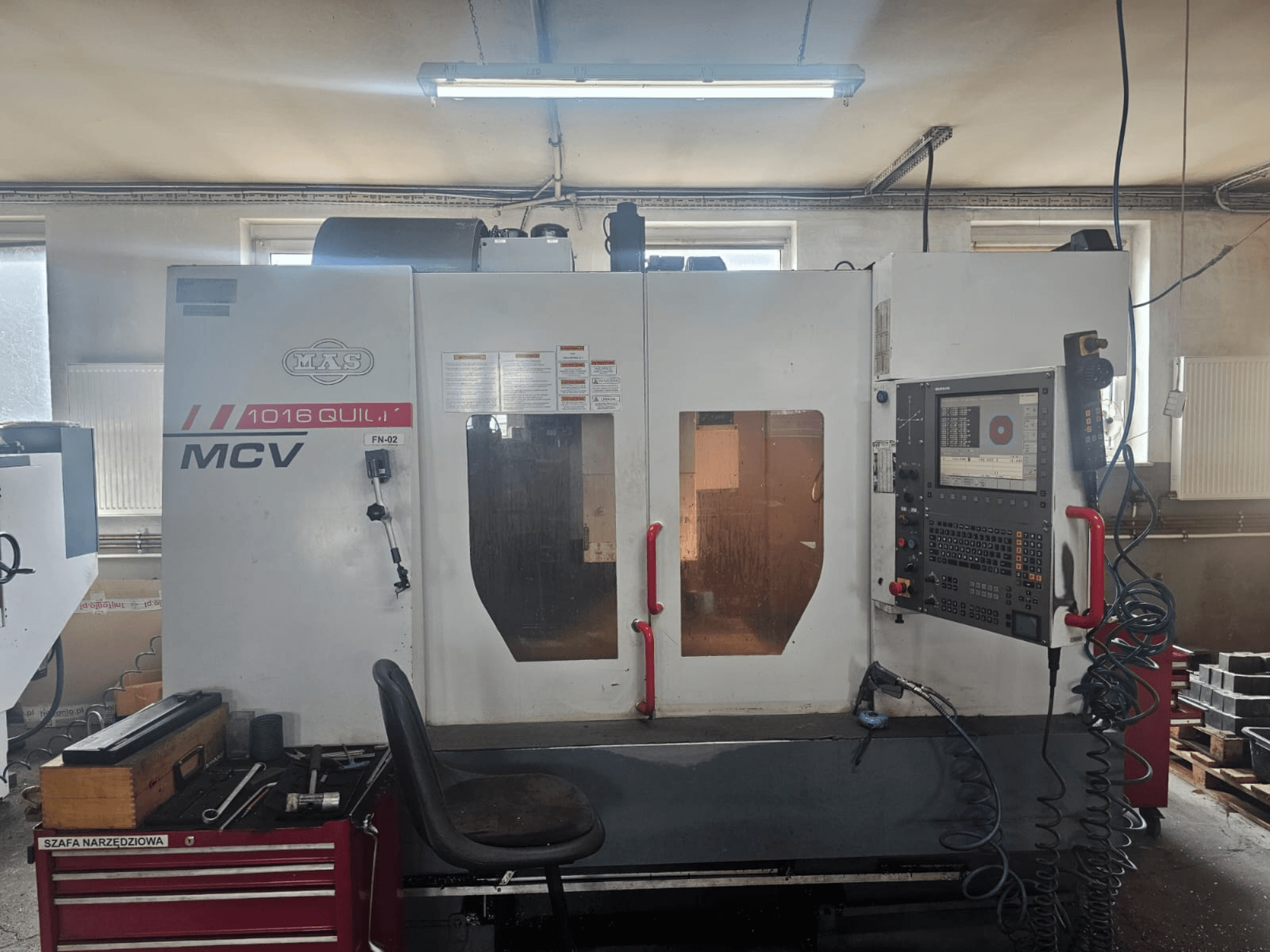

MVS MCV 1016 QUILL CNC machine, front view, featuring control panel, tool drawer, and workspace with tools.
MVS MCV 1016 QUILL CNC machine, front view, featuring control panel, tool drawer, and workspace with tools.

MAS - MCV 1016 QUICKPL-MIL-MAS-2010-00001

37,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis MAS MCV 1016 QUICK was manufactured in 2010. It features a table size of 1300 × 600 mm, with a maximum travel of 1016 mm in the X-axis, 610 mm in the Y-axis, and 710 mm in the Z-axis. The spindle supports a speed range of 20–10000 rpm with stepless speed change. It can handle a maximum table load of 700 kg. If you are looking to get high-quality milling capabilities consider the MAS MCV 1016 QUICK machine we have for sale. Contact us for more information.

Overview

  • brand: MAS
  • year: 2010
  • MODEL: MCV 1016 QUICK
  • application type: Milling
  • Location: Poland
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - MAS MCV 1016 QUICK

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: TNC 530

Dimensions

  • Table Load: 700 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 1016 mm
  • Y-axis Travel: 610 mm
  • Z-axis Travel: 710 mm

Technical Specification

  • Spindle Speed: 10000 RPM
  • Taper Size: ISO 40

Additional Information

  • Table size: 1300 × 600 mm

  • Number of T-slots in table: 5

  • Maximum workpiece dimensions (with maximum tool length): 1016 × 600 × 420 mm

  • Spindle bearing diameter: 75 mm

  • Distance from spindle nose to clamping surface: 100–810 mm

  • Distance from spindle axis to column: 635 mm

  • Tool clamping force: 12,000 N

  • Positioning accuracy (VDI/DGQ 3441): 0.012 mm

  • Measurement in X, Y, Z: direct

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
