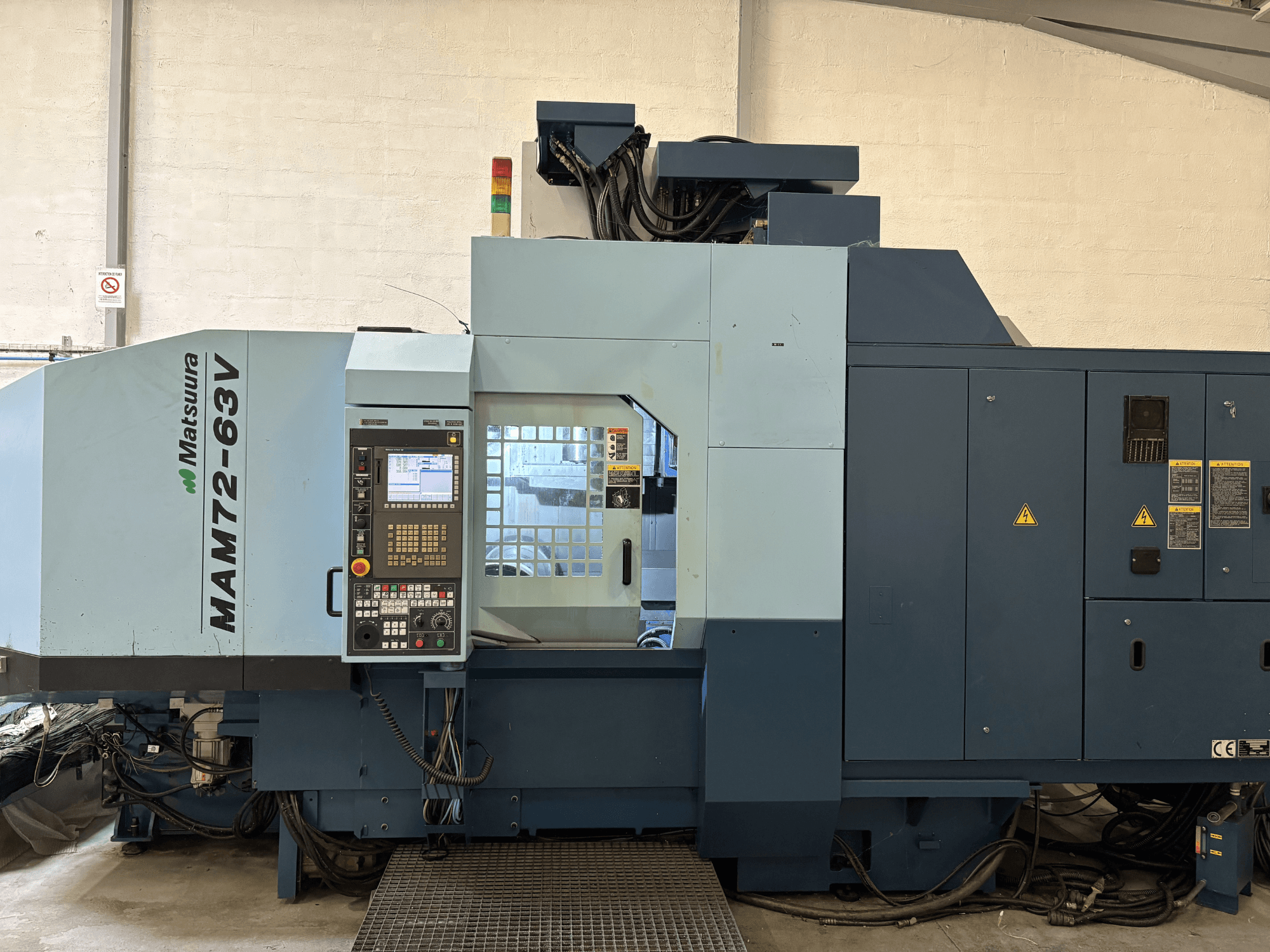

This 5-axis Matsuura MAM 72-63 V was manufactured in 2008. It features impressive travels with an X-axis of 760 mm, Y-axis of 845 mm, and Z-axis of 610 mm. The machine includes a maximum workpiece capacity of Ø800 mm × 450 mm height and a tool magazine with 150 positions. If you are looking to get high-quality machining capabilities, consider the Matsuura MAM 72-63 V vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Matsuura
- year: 2008
- MODEL: MAM 72-63 V
- application type: Milling
- Location: France
- machine type: Vertical Machining Centre
Technical Information - Matsuura MAM 72-63 V
Movement
- Number of Axes: 5
- X-axis Travel: 760 mm
- Y-axis Travel: 845 mm
- Z-axis Travel: 610 mm
Technical Specification
- Spindle Speed: 20000 RPM
Additional Information
Rotary axes: A +110° / -110°; C 360°
Table/work area:
Max workpiece: Ø800 mm × 450 mm height
Table to spindle nose: 120 – 730 mm
Feed rates:
Rapid traverse (X/Y/Z): 50,000 mm/min
Cutting feed (X/Y/Z): 1 – 50,000 mm/min
Accuracy: Minimum increment 0.001 mm
Tooling: Tool magazine with 150 positions
Other: Spindle hours 23,000 h
Additional equipment
Twin pallet system
Workpiece probe
Tool probe
High-pressure coolant (50 bar)
Filtration system
Chip conveyor with drum filter
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
