Mazak - QTC 300MY L500

2018

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Mazak QTC 300MY L500

Show in original language

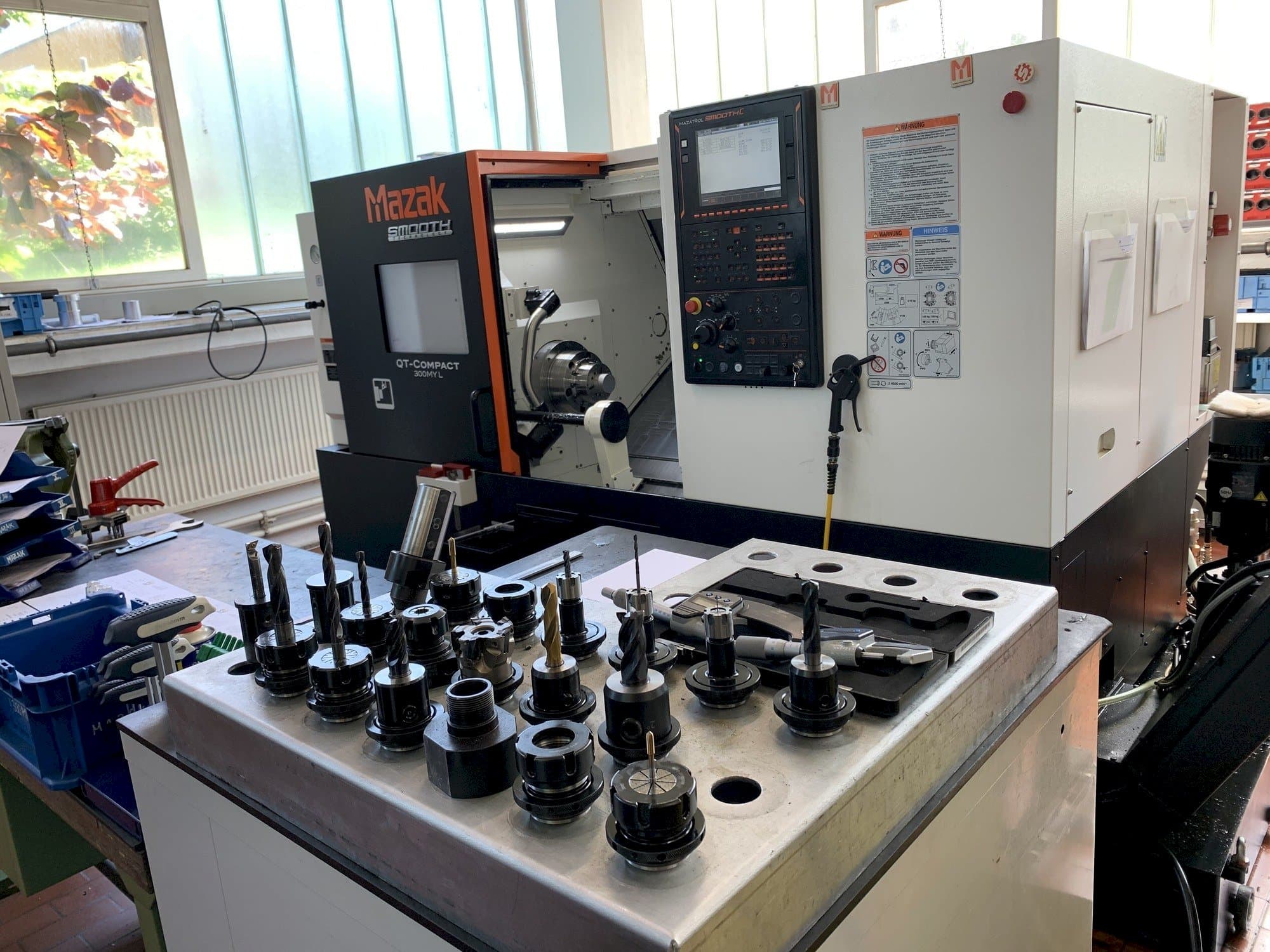

This Mazak QTC 300MY L500 Lathe was made in China in the year 2018. It has been working for 5056 hours. This 3 axis machine is operated through a MAZATROL SMOOTHC control unit. It can work with a spindle speed up to 4000 rpm and a spindle bore 91 mm. This machine includes several options as 1 set of adjustment tools and a small tool box with a spanner, screwdriver and an Allen key. It comes with a set of manuals in electronic form on OD.

Overview

brand: Mazak
year: 2018
MODEL: QTC 300MY L500
production hours: 5056
application type: Turning
Location: Germany
machine type: Lathe
availability: Sold
control unit brand: MAZATROL
GINDUMAC ID: DE-TUR-MAZ-2018-00001

Technical Information

General Data

Measurements width: 1690 mm
Measurements depth: 2700 mm
Measurements height: 1725 mm
Machine weight: 4670 kg

Control Unit

Brand: MAZATROL
Model: SMOOTHC

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 15.0 kW
Spindle bore: 91 mm
Pressing force: 5000 KN
Number of axis: 3

Movement

X-AXIS Movement: 215 mm
X-AXIS Rapid traverse: 30.0 m/min
Y-AXIS Movement: 100 mm
Y-AXIS Rapid traverse: 10.0 m/min
Z-AXIS Movement: 605 mm
Z-AXIS Rapid traverse: 30.0 m/min

Workpiece

Workpiece weight: 500 kg

Turret

Number of tool slots: 12

Media

Main electronic connection: 400 V 50/60 HZ
Power consumption: 26.8 kVA

Additional Equipment

- B688EL110 Transformer for the European market
- B688M0575 Use of linear systems with carriages from leading manufacturers
- B688N0839 SD MEMORY l/F(1P) + USB MEMORY l/F(1P) 1 x USB - Memory Interface (1 SIot)
- B688SD120 1 set of adjustment tools
- Small tool box with - spanner - Screwdriver - l Allen key
- B688SD130 Machine feet / levelling shoes
- B688S1039 C-axis input accuracy 0.0001
- B688TT014 Integrated travelling quill MK 4 (1000)
- B688TT640 Tailstock with fixed quill MK5 (500U)
- B688YI 030 Y-axis control

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chuck diameter main spindle 10''
- - Max. Swing diameter 695 mm
- - Standard machining diameter 255 mm
- - Max. Machining diameter 340 mm
- - Max. Bar diameter main spindle 80 mm
- - Distance between spindle end and turret 59. 5 - 664. 5 mm
- - Max. Workpiece weight chuck machining main spindle 450 kg
- - Spindle nose a2-8
- - Max. Torque 356. 0 nm
- - Travel range tailstock body 565 mm
Qualitative Machine Benefits:
- - Tool cross-section (external turning tool) 565 mm2
- - Boring bar diameter (max. ) 40 mm
- - Tool size drill 20 mm
- - Tool size milling cutter 20 mm
- - Switching time 1 turret station 0. 23 s
- - Switching time full turret rotation 0. 63 s
- - Milling spindle power (continuous operation) 3. 7 kw
- - Milling spindle power (40% ed) 5. 5 kw
- - Max. Milling spindle speed milling spindle speed 4500 min-1
- - Max. Milling spindle torque 47. 0

Extra information

- Set of manuals in electronic form on OD

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
