Mazak VARIAXIS J-600

Show in original language

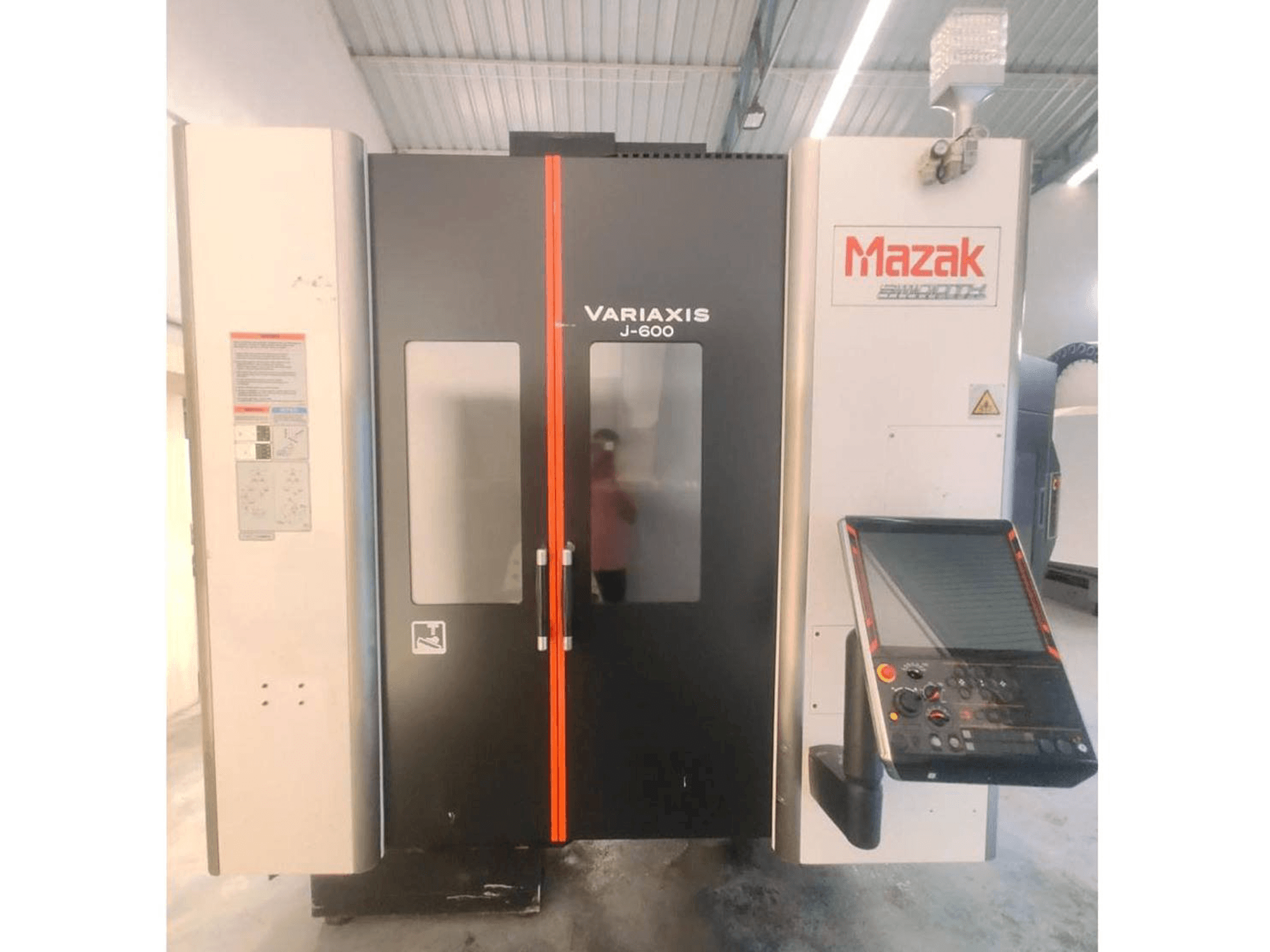

This Mazak VARIAXIS J-600 Vertical Machining Center was manufactured in 2017. This 5 axis machine has a record of 14433 hours, of which 4772 are auto operational time and 4574 are auto cutting time. It stands out for its spindle speed range 35-12000 rpm and its table diameter 600 x 500 mm. It has internal cooling 25 bar.

Overview

brand: Mazak
year: 2017
MODEL: VARIAXIS J-600
production hours: 14433
application type: Milling
Location: India
machine type: Machining centers (vertical)
availability: Sold
GINDUMAC ID: IN-MIL-MAZ-2017-00001

Technical Information

General Data

Measurements width: 2400 mm
Measurements depth: 3325 mm
Measurements height: 3060 mm
Machine weight: 11000 kg

Main drive

Spindle speed range: 35-12000 1/MIN
Spindle motor power: 7.5/11 KW
Spindle bore: 7/24 taper no. 40
Tool taper: BT 40
Number of axis: 5

Movement

X-AXIS Movement: 850 mm
X-AXIS Rapid traverse: 30000 mm/min
X-AXIS Accuracy: 0.016 mm
Y-AXIS Movement: 550 mm
Y-AXIS Rapid traverse: 30000 mm/min
Y-AXIS Accuracy: 0.012 mm
Z-AXIS Movement: 510 mm
Z-AXIS Rapid traverse: 30000 mm/min
Z-AXIS Accuracy: 0.012 mm
B-AXIS Accuracy: 14 s
C-AXIS Accuracy: 14 s

Table

Outer length: 600 mm
Outer width: 500 mm
Height adjustment: 950 MM
Table load: 500 KG

Tools

Max tool diameter: 130 mm
Max tool length: 300 mm
Type of tool holder: BT40 or CAT. no. 40

Media

Main electronic connection: 50 / 60 hz +- 1 hz
Power consumption: 29.4 kw
Air pressure: 0.5 to 0.9 mpa
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle with chiller unit; 4 + 1 axis simultaneously
- - B axis travel -120 º to +90º; c axis travel +- 360º
- - B/c axis rapid traverse y cutting feed 10800 º/min
- - 30 tool atc; coolant through spindle (25 bar)
- - Distance between spindle nose and top of the table: 70 to 580 mm
- - Distance between spindle nose and center of the table: 20 to 530 mm
- - Job possibility diameter 730 mm x 450 mm height
- - X/y/z cutting feed: 30000 mm/min
- - Magazine capacity 30 tools
- - Has internal cooling 25 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
