➤ Used MIKRON HSM600U For Sale | gindumac.com

Show in original language

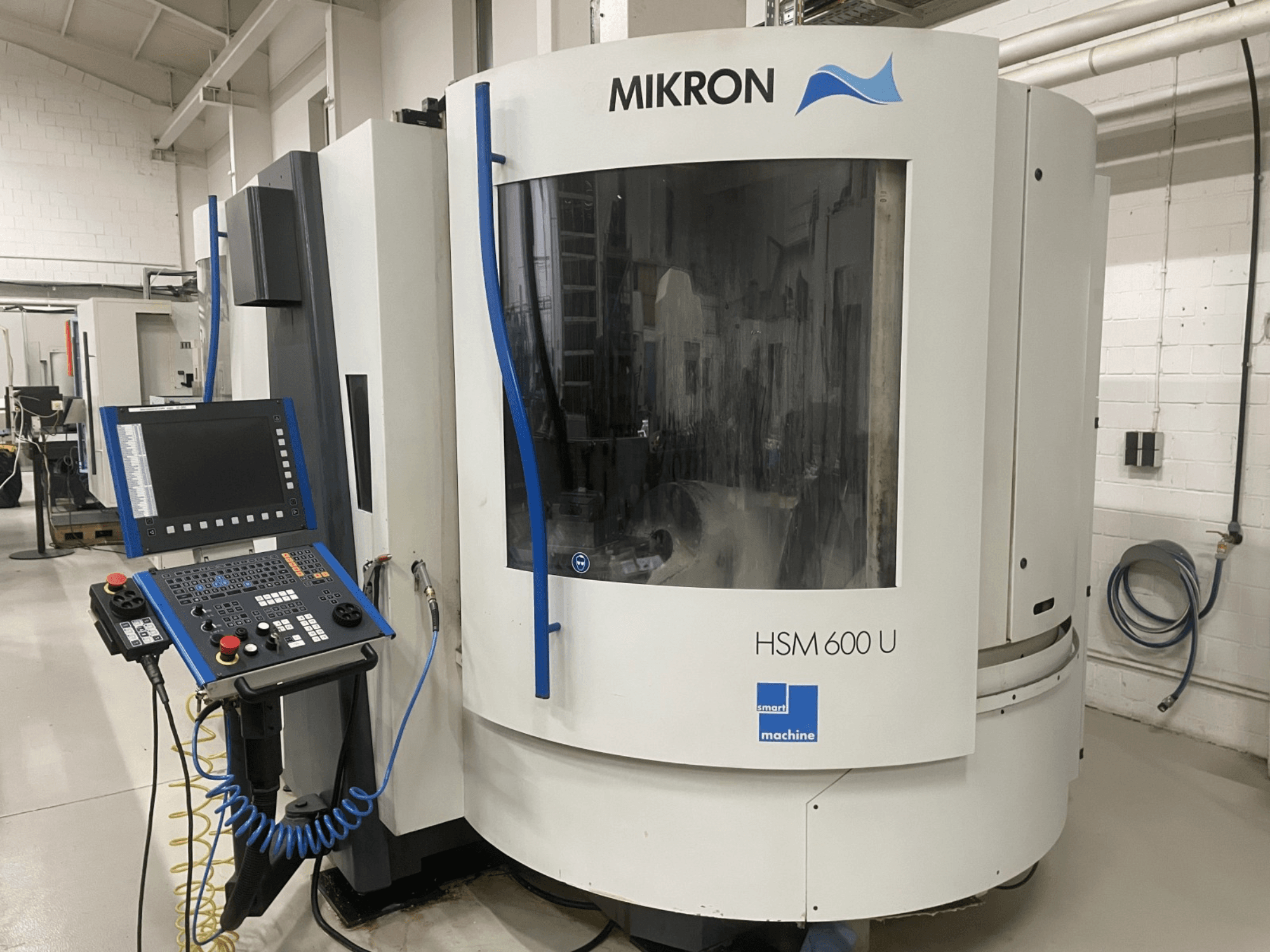

This 5-axis MIKRON HSM600U was manufactured in 2004. It features an impressive X-axis travel of 800 mm, Y-axis travel of 600 mm, and Z-axis travel of 500 mm. The machine is equipped with a high-speed spindle capable of reaching up to 36,000 rpm and a tool magazine with a capacity of 60 positions. If you are looking to get high-quality machining capabilities, consider the MIKRON HSM600U vertical machining centre we have for sale. It includes a pallet changer. Contact us for further details.

Overview

brand: MIKRON
year: 2004
MODEL: HSM600U
production hours: 22032
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - MIKRON HSM600U

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC 530

Dimensions

Machine Weight: 910 kg

Movement

Number of Axes: 5
X-axis Travel: 800 mm
Y-axis Travel: 600 mm
Z-axis Travel: 500 mm

Technical Specification

Taper Size: HSK 50

Additional Information

Tool magazine capacity: 60 positions
Coolant system: Through-spindle coolant (IKZ)
Lubrication: Minimum quantity lubrication (MQL)
Electrical: 400 V, 50/60 Hz, 4 kVA, 5.7 A (full load)
Condition note: Without tools, pallets and vises (available separately)
Program run time: 35,982 h
Spindle hours: 22,032 h

Additional equipment

6-fold pallet changer
Table system: Delphin system (System 3R)
The following materials were processed on the machine
Aluminum
Steel
Non-ferrous metals
Plastics
Hardened steel
The following parts were replaced/repaired:
Several power components until the throttle was replaced
Y-axis cover (2x)
X-axis cover
X-axis ball screw bearings
Coolant pump motor
Several proximity sensors
2x Hydraulic pressure sensors
1x Hydraulic hose
Since the system was a production variant, it was converted to central lubrication
2x 3R clamping system maintenance kits
Clamping tables included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
