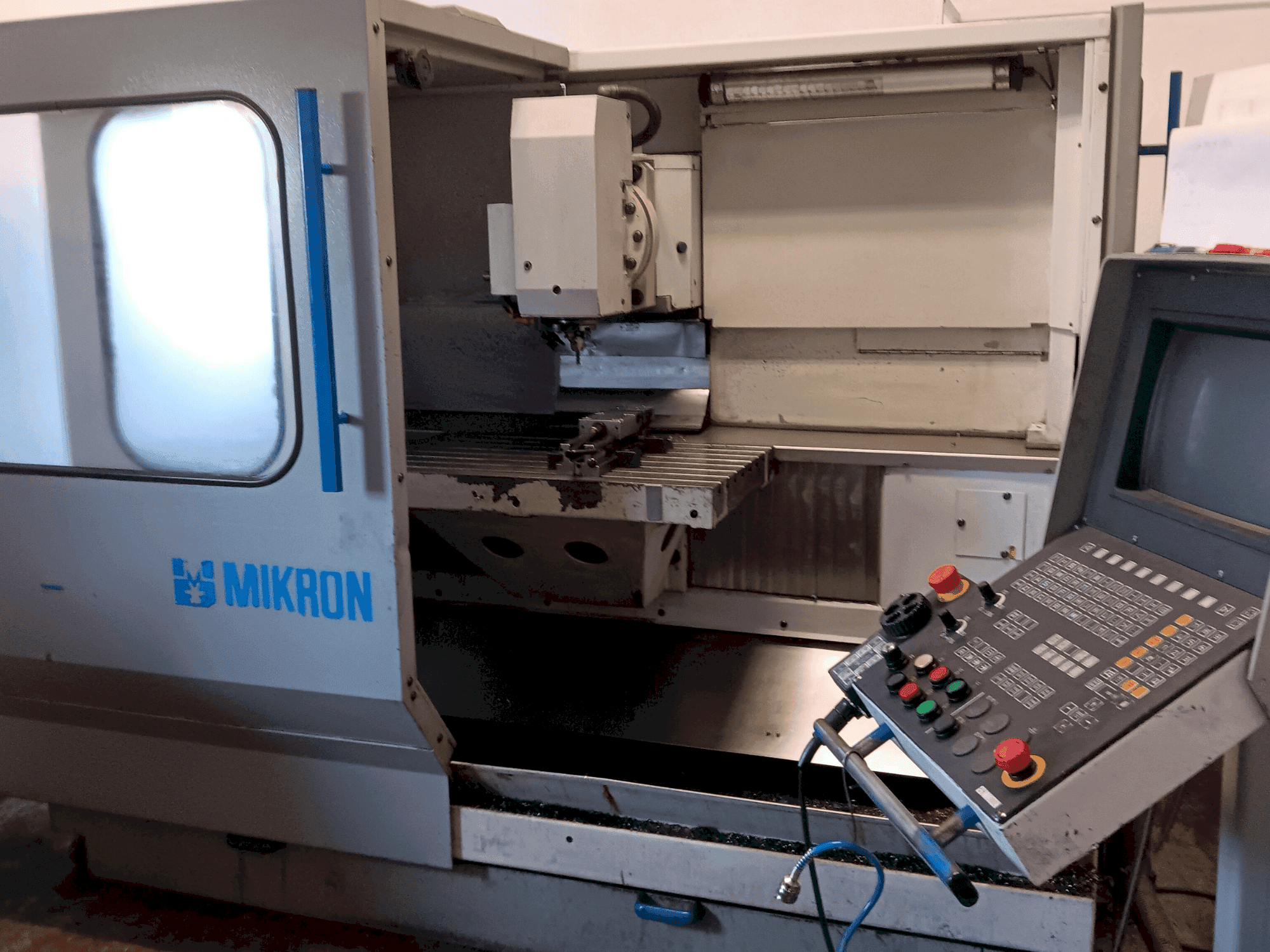

This 3-axis MIKRON UM 600 vertical machining center was manufactured in 1997. If you are looking to get high-quality milling capabilities, consider the MIKRON UM 600 machine we have for sale. Contact us for more information.
Overview
- brand: MIKRON
- year: 1997
- MODEL: UM 600
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - MIKRON UM 600
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 410/426
Technical Specification
- Max. Tool Weight: 12 kg
Additional Information
Additional equipment
- Noise Emission: Sound power level of 75 dB (A)
Machine Benefits
Technical Machine Benefits
- Ac main spindle drive
- Drive power at 40% duty cycle: 9 kw // drive power at 100% duty cycle: 6 kw
- Max. Torque at the spindle: 35 nm
- Stepless speed control: yes
- Tool spindles (fk 40)
- Max. Torque at the spindle at 40% duty cycle: 800 nm
- Speed range adjustable: 5 - 5000 min⁻¹
- Number of gear stages: 4
- Minimum draw-in force: 100000 n
- Minimum ejection force: 3500 n
Extra Information
Movement Travels in Automatic Mode: Rapid traverse of the clamping fixture (X-axis): 600 mm Rapid traverse of the spindle slide (Z-axis): 500 mm Rapid traverse of the clamping fixture (Z-axis): 450 mm AC Feed Drives Programmable feed rate: 0 - 15000 mm/min (X, Y-axis), 0 - 12000 mm/min (Z-axis) Rapid traverse speed: 15 m/min (X, Y-axis), 12 m/min (Z-axis) Feed force at 100% duty cycle: 9000 N (X, Y-axis), 11000 N (Z-axis) Media Coolant System Capacity: 150 liters Flow rate: approx. 30 l/min at 2.2 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
