MIKRON - Multistar CX-24/500RFR-OTH-MIK-2009-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used MIKRON Multistar CX-24/500R For Sale | gindumac.com

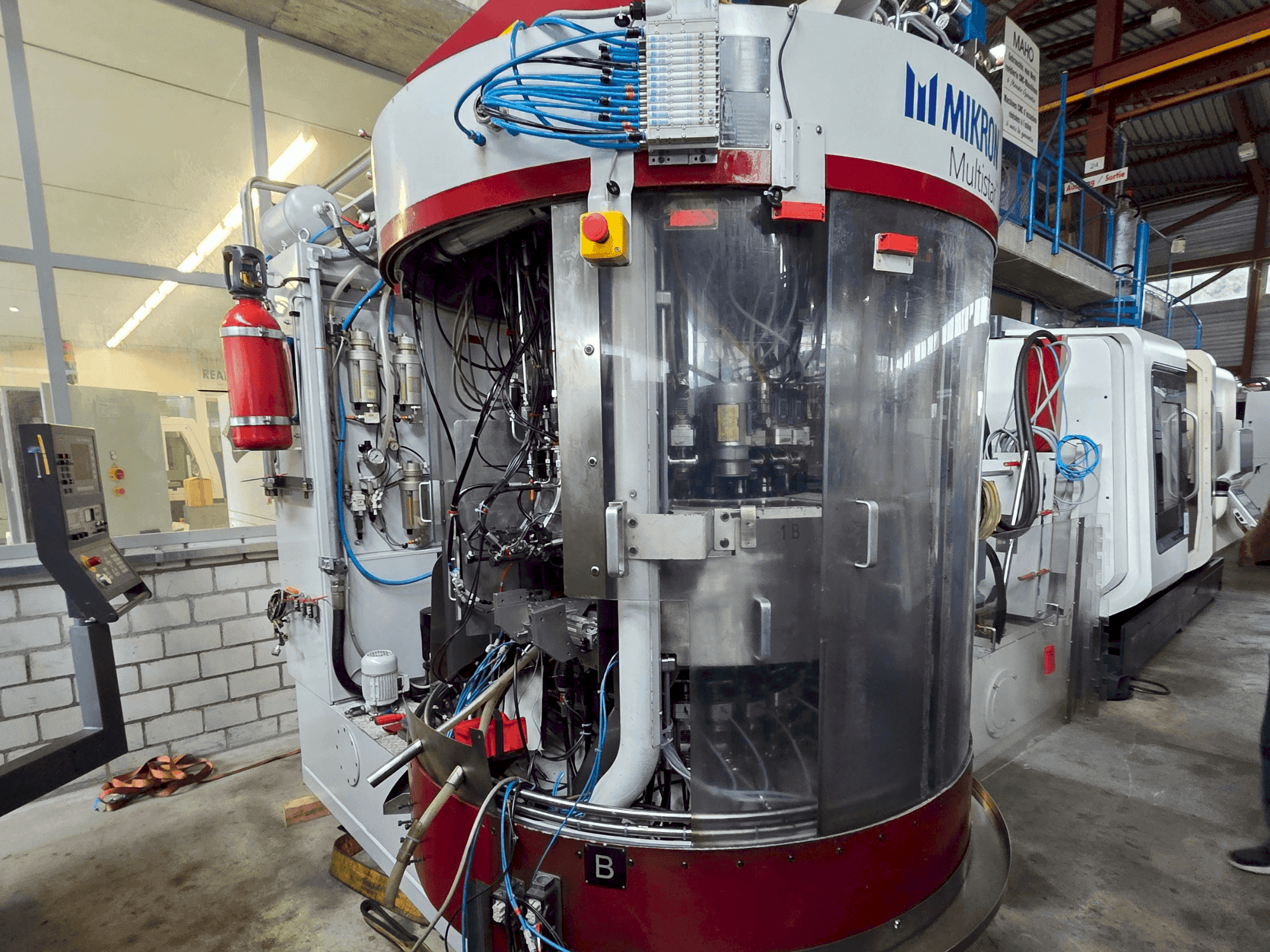

This MIKRON Multistar CX-24/500R was manufactured in 2009. It features a high production capacity with up to 280 pcs/min in multiple cycles and a main motor power of 2.2 kW. The machine accommodates a maximum workpiece diameter of 24 mm with swivel clamp and operates efficiently with a spindle rotation speed up to 32,000 rpm. Ideal for high-volume production environments. Contact us for more information about this machine.
Overview
- brand: MIKRON
- year: 2009
- MODEL: Multistar CX-24/500R
- application type: Other Machine Tools
- Location: France
- machine type: Machine Tool
Technical Information - MIKRON Multistar CX-24/500R
General Data
- Machine weight: 3000 kg
Main drive
- Spindle speed range: 500 – 32000 rpm 1/MIN
Tools
- Number of stations: 24
General Data
- Machine weight: 3000 kg
Main drive
- Spindle speed range: 500 – 32000 rpm 1/MIN
Tools
- Number of stations: 24
Additional Information
Additional equipment
- Environmental conditions: +10 °C to +40 °C, max. humidity 50% at 40 °C, 90% at 20 °C, max. altitude 1000 m a.s.l.
- Machine lifetime: 20 years
Machine Benefits
Technical Machine Benefits
- Max. Production: 70 pcs/min
- Max. Production in multiple cycle: 280 pcs/min
Extra Information
Control Unit Input voltage: 400V – 3-phase – 50/60 Hz – 200 A Power consumption: ~15–30 kWA Movement Max. stroke of units: 53 mm Max. speed: 0.2 m/sec Acceleration: 1.3 m/sec² + 3 m/sec² Electrical cabinet weight: ~800–1500 kg Spindle Rotating collet rotation speed: 6000 rpm Tools Max. stroke (X): 30 mm Max. stroke (Y): 35 mm Max. stroke (Z): 40 mm Media Compressed air: 5–6 bar (max. 6 g/m humidity) Compressed air consumption: ~10–20 m³/h Oil tank capacity: ~850 litres Oil vapour emissions: below permitted limits (with electrostatic filter)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
Products related to MIKRON Multistar CX-24/500R

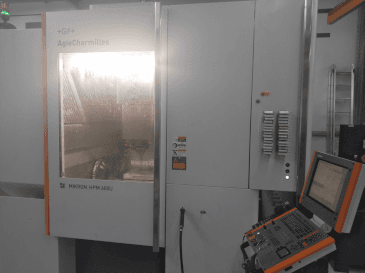

HPM 600U
MIKRON - Vertical Machining Centre

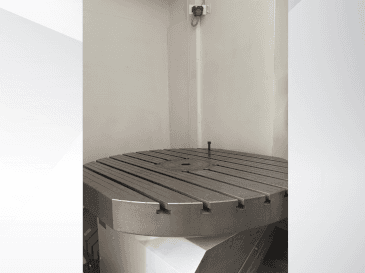

BO 110
