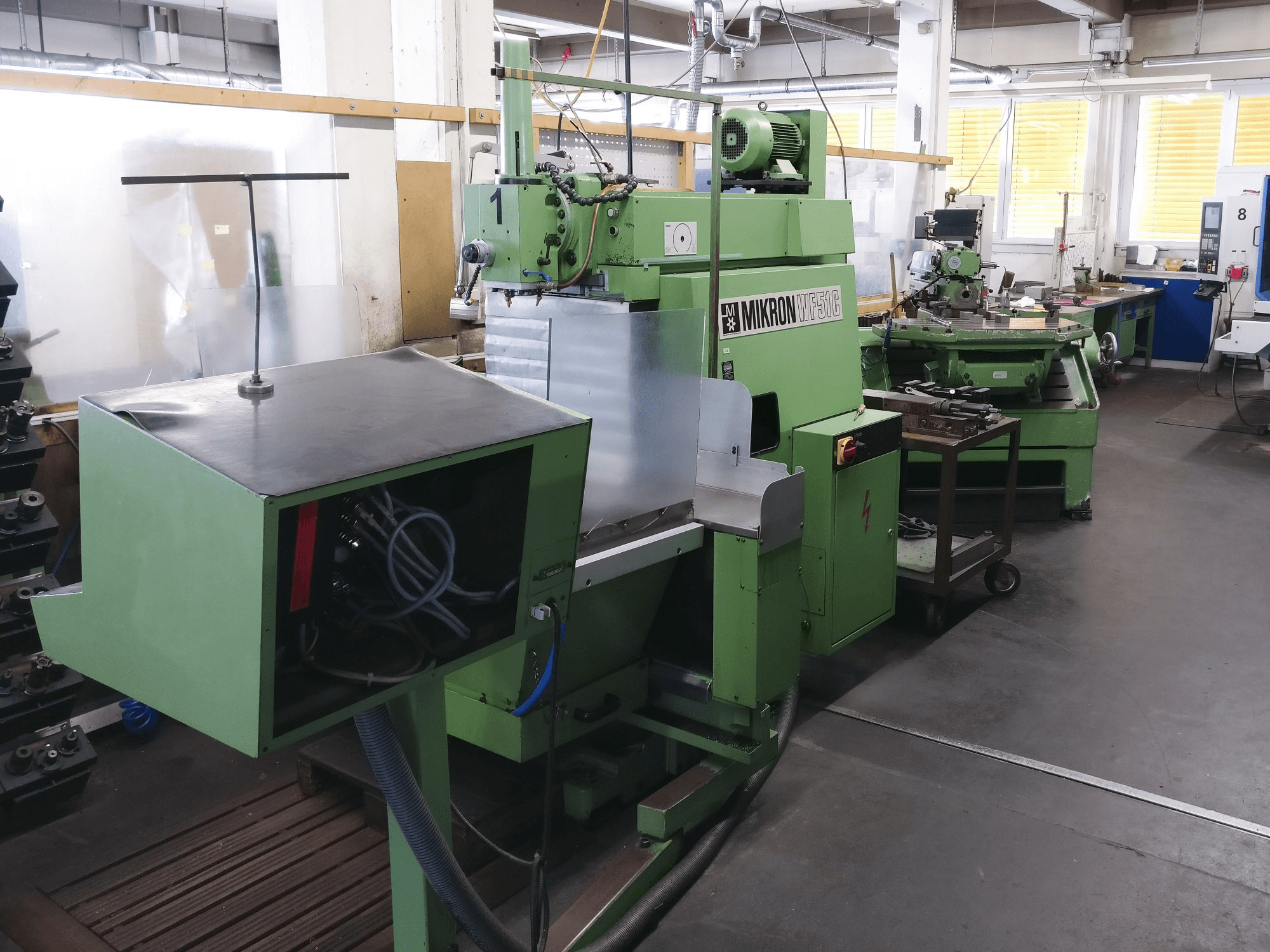

Left view 1 of MIKRON WF 51C/150 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MIKRON WF 51C/150

MIKRON - WF 51C/150DE-MIL-MIK-1983-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
MIKRON WF 51C/150 Milling Machine

Show in original language

This MIKRON WF 51C/150 Milling Machine was manufactured in Switzerland in 1983 and has a working record of 45829 production hours ever since. Operated through a HEIDENHAIN TNC 150 Control unit, the machine comes with holders as additional equipment. As benefits, this WF 51C/150 stands out for its solid components: its double track is strong and stable, and the included gears are robust in comparison to newer stepper motors. Moreover, its safety clutch provides extra protection.

Overview

brand: MIKRON
year: 1983
MODEL: WF 51C/150
production hours: 45829
application type: Milling
Location: Germany
machine type: CNC Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - MIKRON WF 51C/150

General Data

Measurements width: 2700 mm
Measurements depth: 2250 mm
Measurements height: 2330 mm
Machine weight: 3100 kg

Control Unit

Model: TNC 150
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 3150 1/min
Spindle motor power: 8 kW
Spindle bore: 110 mm
Tool taper: ISO 40/M16

Movement

X-AXIS Movement: 800 mm
X-AXIS Working Feed: 3000 mm/min
X-AXIS Rapid traverse: 6000 mm/min
Y-AXIS Movement: 500 mm
Y-AXIS Working Feed: 3000 mm/min
Y-AXIS Rapid traverse: 6000 mm/min
Z-AXIS Movement: 460 mm
Z-AXIS Working Feed: 3000 mm/min
Z-AXIS Rapid traverse: 4000 mm/min

Workpiece

Workpiece weight: 500 kg

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 17.5 kVA
Lubrication tank: 100 L

Additional Equipment

- Holders

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
