Mitsubishi - MV2400S NEWGENPL-EDM-MIT-2018-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- MITSUBISHI MV2400S NEWGEN Erosion machine
Show in original language

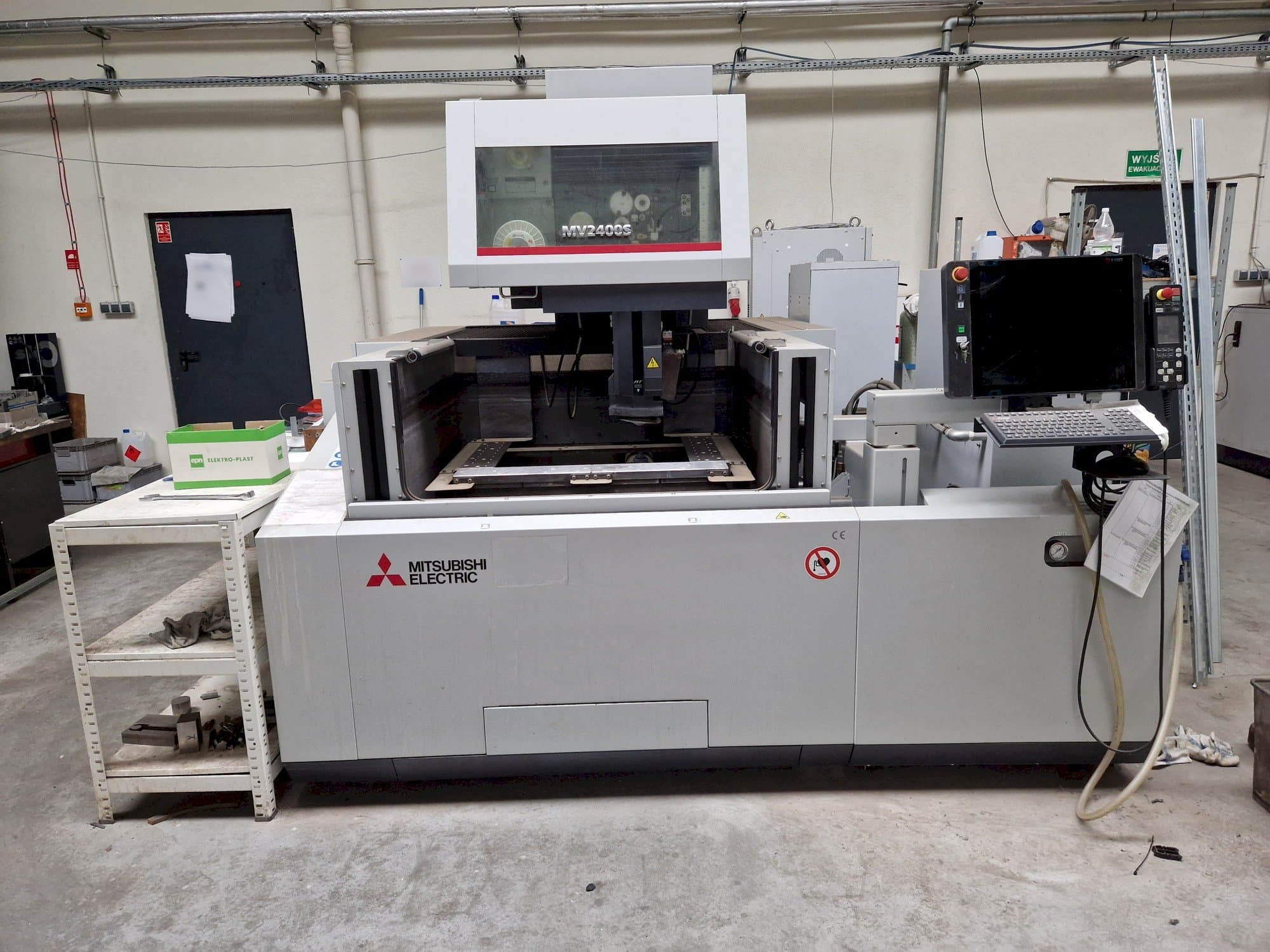

This MITSUBISHI MV2400S NEWGEN Wire Erosion machine was manufactured in the year 2018 in Japan and has no more than 1000 working hours. It is equipped with a MITSHUBISHI M800 D-CUBE control unit. The machine has a table of 840 x 640 mm, is in very good condition, and well maintained.
Overview
- brand: Mitsubishi
- year: 2018
- MODEL: MV2400S NEWGEN
- production hours: 1000
- application type: EDM
- Location: Poland
- machine type: Wire EDM Machine
Technical Information - Mitsubishi MV2400S NEWGEN
Dimensions
- Machine Depth: 3030 mm
- Machine Height: 2150 mm
- Machine Weight: 3500 kg
- Table Length: 840 mm
- Table Width: 640 mm
Movement
- X-axis Travel: 600 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 310 mm
Additional Information
Machine Benefits
Qualitative Machine Benefits
- 3d cam magic 3d files import and generating program for solids
- Angelmaster set for angle cutting over 30 deg.
- Inside led lighting
- Ods-optical driver system-tubular motors in x-axis, y-axis tubular technology
- Optical rulers in x, y axes
- Intelligent at - automatic wire threading
- Nui natural user interface intuitive control mitsubishi advance plus m800
- 2d cad / cam system with 2d dxf and iges drawings import, 64-bit cnc
- Pfc-precise finish circuit-package to improve stability and cutting speed
- Advanced cutting technology e. G. , graphite, pcd/cbn, carbon with esper expert system
Technical Machine Benefits
- Taper angle: +/-15 deg / 260 mm +/-30 deg / 1100 mm
- Possible wire diameters – 0. 1 – 0. 3 mm
- Automatic wire threader – yes
- Configurable remote control with lcd display
- Job-scheduler queuing programs ( optional)
- 2d cammagic - generate program
- Import 3d parasolid (optional), 2d dxf / dwg files
- Graphics check, machining simulation
- Templates machining, fast programming
- Network card, 2 x usb ports
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
