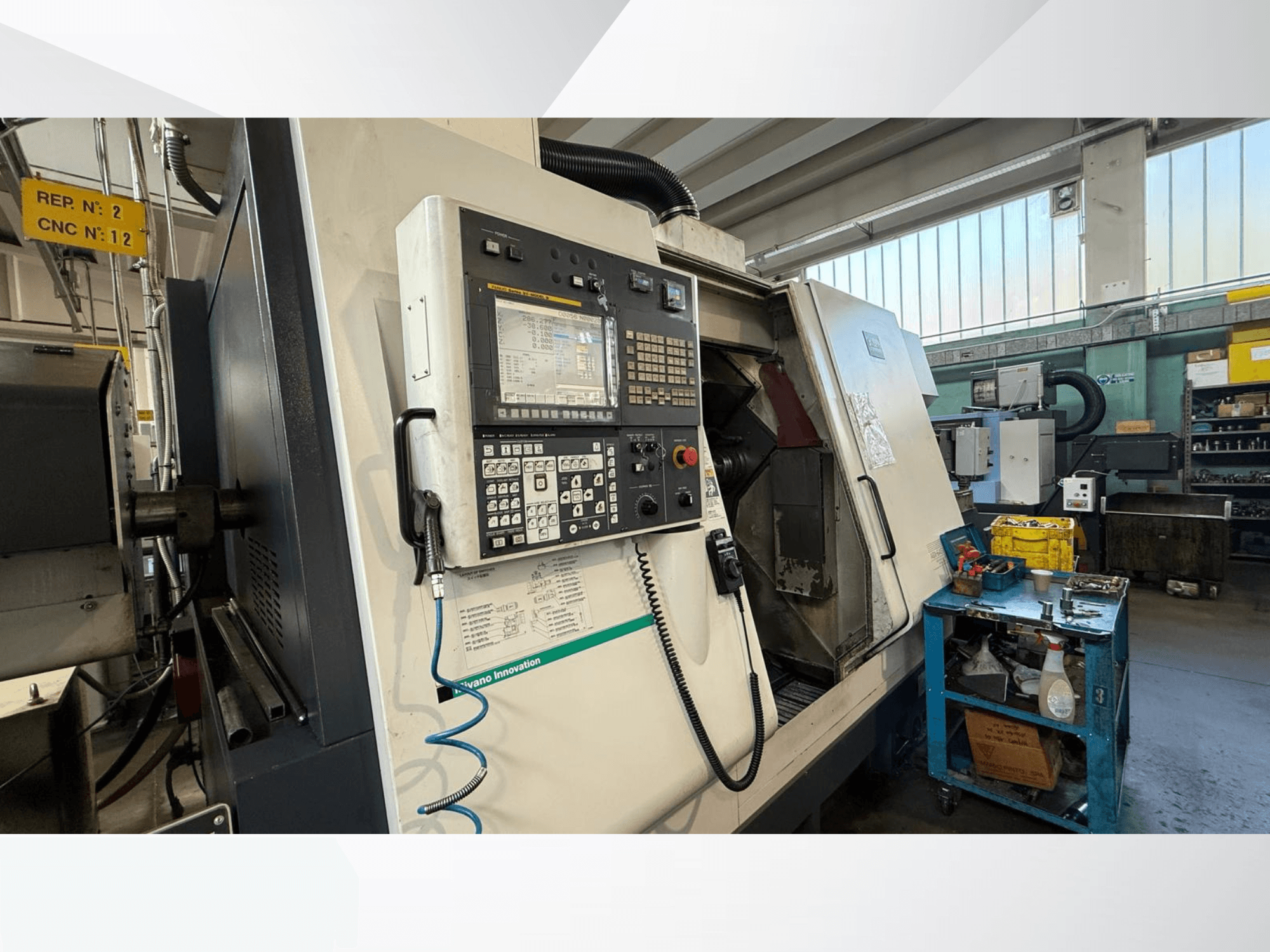

Miyano ABX64 YY2 horizontal turning machine front view, featuring control panel, with tools and equipment in workshop setting.
Miyano ABX64 YY2 horizontal turning machine front view, featuring control panel, with tools and equipment in workshop setting.

Miyano - ABX64 YY2IT-TUR-MIY-2014-00001

142,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 8-axis Miyano ABX64 YY2 was manufactured in 2014. It features a maximum work length of 125 mm and a maximum work diameter of Ø 165 mm. The machine is equipped with two turrets, each having 12 positions, and rapid traverse rates of up to 30 m/min. If you are looking to get high-quality turning capabilities, consider the Miyano ABX64 YY2 horizontal turning machine we have for sale. Contact us for further details.

Overview

  • brand: Miyano
  • year: 2014
  • MODEL: ABX64 YY2
  • application type: Turning
  • Location: Italy
  • machine type: Horizontal Turning Machine

Technical Information - Miyano ABX64 YY2

Dimensions

  • Machine Height: 2222 mm
  • Machine Length: 3290 mm
  • Machine Weight: 10600 kg
  • Machine Width: 2204 mm

Additional Information

  • Number of spindles: 2

  • Spindle speed: SP1: 40 – 4000 rpm, SP2: 50 – 5000 rpm

  • Inner diameter of draw tube: SP1: Ø 65.5 mm, SP2: Ø 52 mm

  • Chuck system: Hydraulic cylinder (SP1 / SP2)

  • Collet chuck type: SP1: S collet system H-S26 / DIN185E, SP2: S collet system H-S22 / DIN177E

  • Power chuck: SP1: 6" hydraulic chuck, SP2: 6" hydraulic chuck

  • Number of turrets: 2

  • Turret stations: 12 positions each

  • Tool shank size: □ 20 mm

  • Internal tool hole size: Ø 25 mm / Ø 40 mm

  • Index time: 0.25 sec / position

  • Turret HD1: X1: 16 m/min, Z1: 30 m/min, Y1: 12 m/min

  • Turret HD2: X2: 20 m/min, Z2: 30 m/min, Y1: 12 m/min

  • Sub-spindle axis: Zs: 30 m/min

  • Number of rotary tools (HD1, HD2, HD3): 12 (max. 24)

  • Maximum spindle speed: 6000 rpm

  • Machining capacity: Drilling: max. Ø 20 mm, Tapping: max. M14 × 2, End milling: max. Ø 16 mm

  • Hydraulic tank capacity: 10 l

  • Lubricating tank capacity: 4 l

  • Coolant tank capacity: 400 l

  • Voltage: AC 200/220 V ± 10%

  • Frequency: 50/60 Hz ± 1 Hz

  • Power consumption: 48 kVA

  • Air supply: 5 bar (5 kgf/cm²)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
