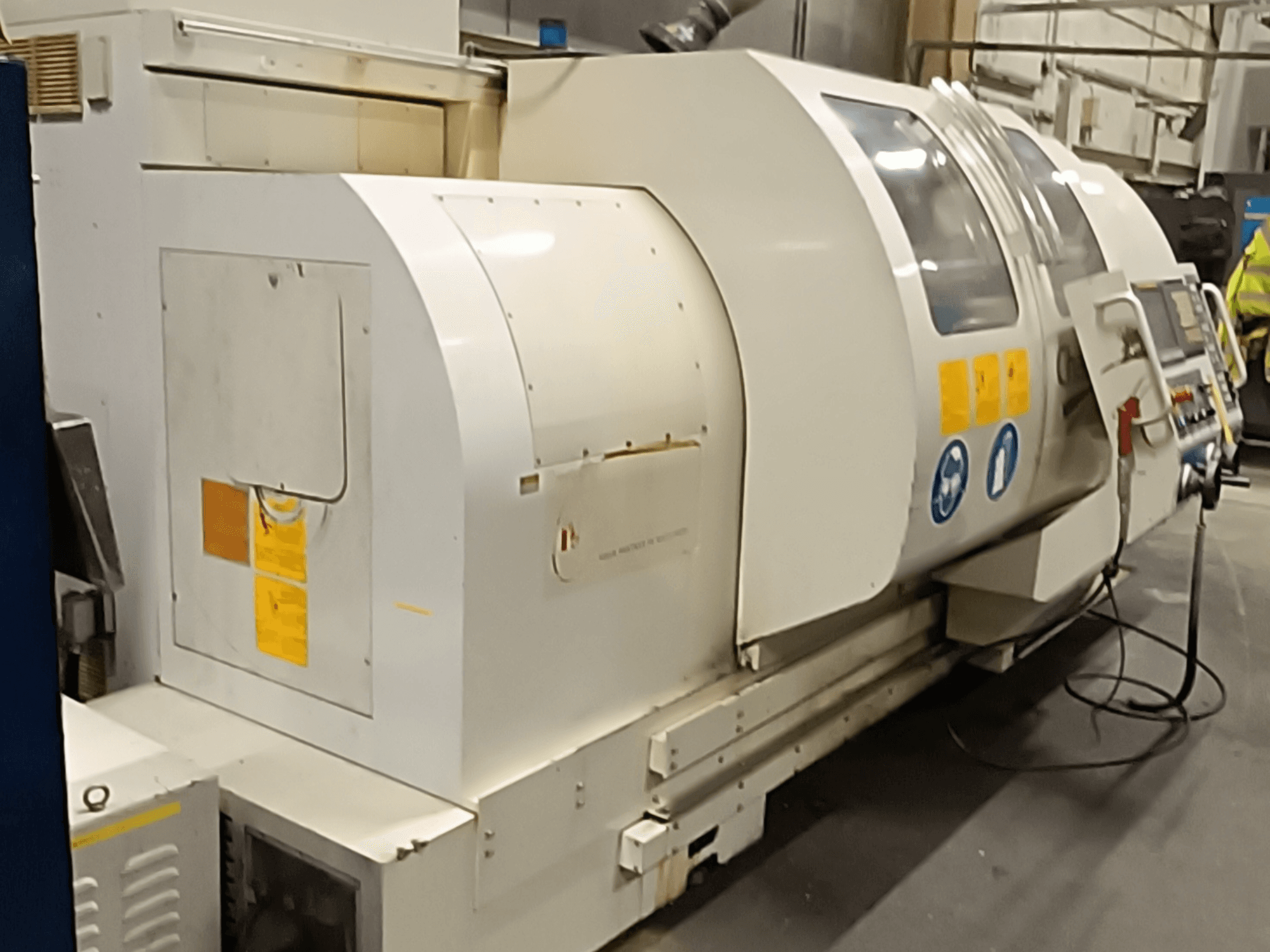

Horizontal turning machine manufactured in 2008. This MONDIALE BNC-2260XL features a maximum turning length of 1500 mm and a swing over bed of 550 mm. It includes a bar capacity of 69 mm and a maximum workpiece weight of 2000 kg. If you are looking to get high-quality turning capabilities, consider the MONDIALE BNC-2260XL machine we have for sale. Contact us for further details regarding this machine.
Overview
- brand: MONDIALE
- year: 2008
- MODEL: BNC-2260XL
- application type: Turning
- Location: Belgium
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - MONDIALE BNC-2260XL
Control Unit
- Control Brand: FANUC
- Control Model: Oi-TC
Dimensions
- Machine Height: 2050 mm
- Machine Length: 3690 mm
- Machine Weight: 4400 kg
- Machine Width: 2225 mm
Movement
- Number of Axes: 2
- X-axis Travel: 300 mm
- Z-axis Travel: 1650 mm
Technical Specification
- Counter Spindle: No
- Driven Tools: No
- Spindle Power: 15.5 kW
- Spindle Speed: 3500 RPM
Additional Information
Swing over bed: 550 mm
Swing in gap: 790 mm
Swing over cross slide: 310 mm
Max. turning length: 1500 mm
Bar capacity (hyd. chuck cylinder): 69 mm (91 mm option)
Gap length from spindle nose surface: 283 mm
Max. workpiece weight (with tailstock): 2000 kg
Spindle speed range (choice 1): 80–3500 rpm (82 mm bore)
Spindle speed range (choice 2): 80–2400 rpm (82 mm/106 mm bore)
Spindle nose: A2-8 / D1-8 (82 mm); D1-8 / A1-11 (106 mm)
Spindle hole diameter: 82 mm (std.) / 106 mm (option)
Main motor power: 11/15.5 kW (std.) / 15/22 kW (opt.)
Number of tool stations: 8
Tool shank: 40 mm
Turret indexing time: 0.42 s (BARUFFALDI)
X/Z axis rapid traverse: 15 m/min
Positioning accuracy: 0.005 mm
Repeatability: 0.005 mm
X axis feed motor torque: 9.3 Nm
Z axis feed motor torque: 14.8 Nm
Ballscrew X axis: 32×5-C5
Ballscrew Z axis: 45×10-C5
Tailstock quill stroke: 150 mm
Tailstock quill diameter: 80 mm (std.) / 100 mm (opt.)
Tailstock quill taper: MT 5
Coolant pump motor: 450 W
Coolant pump capacity: 55 L/min
Lubrication pump motor: 25 W
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
