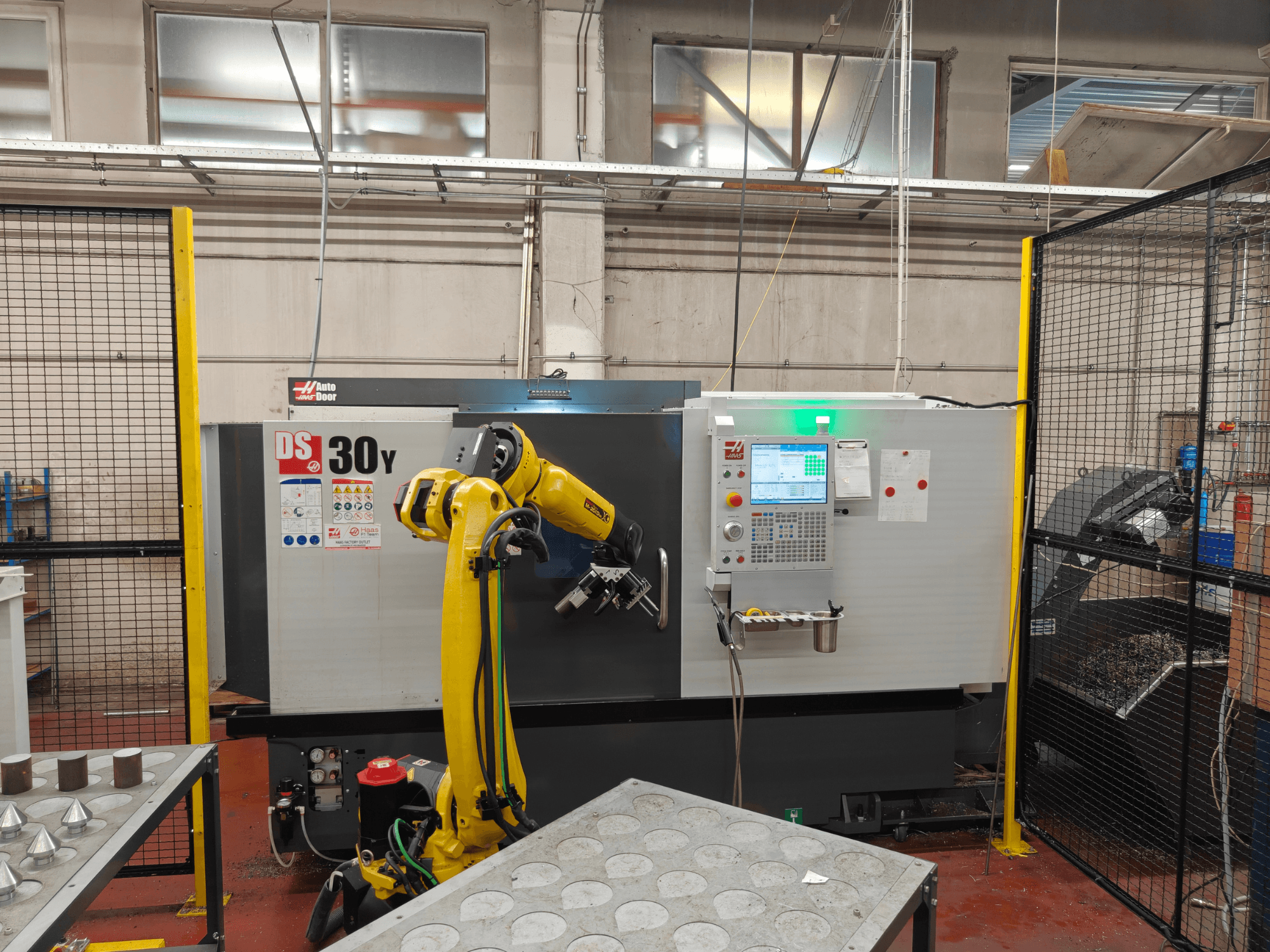

HAAS - DS30Y BE-TUR-HAA-2023-00002

Capacities:

• Chuck size (main): 10.0 in / 254 mm

• Max part swing: 21.0 in / 533 mm

• Max cutting diameter (with BMT65 turret): 13.75 in / 349 mm

• Max cutting length (varies with workholding): 32.5 in / 826 mm

• Bar capacity: 3.00 in / 76 mm

• Between centers: 32.5 in / 826 mm

Feedrates (rapids):

• X: 472 ipm / 12.0 m/min

• Y: 472 ipm / 12.0 m/min

• Z: 945 ipm / 24.0 m/min

Axis motors (max thrust):

• X: 4100 lbf / 18238 N

• Y: 2300 lbf / 10231 N

• Z: 5100 lbf / 22686 N

Main spindle:

• Spindle nose: A2-6

• Drive system: Direct speed, belt drive

• Max torque: 275 ft-lbf @ 500 rpm / 373 Nm @ 500 rpm

• Draw tube bore: 3.0 in / 76 mm

• Spindle bore: 3.50 in / 88.9 mm

Main spindle C axis:

• Max speed: 60 rpm

• Max rating: 5.0 hp / 3.7 kW

• Positioning (±): 0.01°

• Brake diameter: 13.9 in / 353 mm

• Brake holding torque: 250 ft-lbf / 339 Nm

• Control type: Interpolated motion and positioning

Secondary spindle:

• Chuck size: 8.3 in / 210 mm

• Spindle nose: A2-5

• Drive system: Direct speed, belt drive

• Max rating: 15.0 hp / 11.2 kW

• Max speed: 4000 rpm

• Max torque: 100 ft-lbf @ 870 rpm / 135.6 Nm @ 870 rpm

• Spindle bore ø (non-through): 0.81 in / 20.7 mm

Secondary spindle C axis:

• Max rating: 5.0 hp / 3.7 kW

• Max speed: 60 rpm

• Positioning (±): 0.01°

• Brake diameter: 8.5 in / 216 mm

• Brake holding torque: 140 ft-lbf / 190 Nm

• Control type: Interpolated motion and positioning

Secondary spindle positioning (M119):

• Positioning (±): 0.02°

• Brake diameter: 8.5 in / 216 mm

• Control type: Positioning only

Turret:

• Number of tools: 12 stations

• OD vs ID tools: Any combination (will vary with turret)

• Boring bar rear clearance (from back of turret): 4.00 in / 102.0 mm

Live tooling:

• Max speed: 4000 rpm

• Drive ratio: 1:1

• Tooling: BMT65

General:

• Coolant capacity: 55 gal / 208 L

Air requirements:

• Air required: 4 scfm @ 100 psi / 113 L/min @ 6.9 bar

• Inline air hose: 3/8 in

• Coupler (air): 3/8 in

• Minimum air pressure: 80 psi / 5.5 bar

Electrical specification:

• Spindle speed: 4500 rpm

• Drive system: Direct speed, belt drive

• Spindle power: 30.0 hp / 22.4 kW

• Input AC voltage (3-phase) – low: 220 VAC; full load amps: 70 A

• Input AC voltage (3-phase) – high: 440 VAC; full load amps: 35 A

Dimensions – shipping:

• Domestic pallet: 171 in x 90 in x 98 in / 434 cm x 229 cm x 249 cm

• Export pallet: 171 in x 90 in x 98 in / 434 cm x 229 cm x 249 cm
