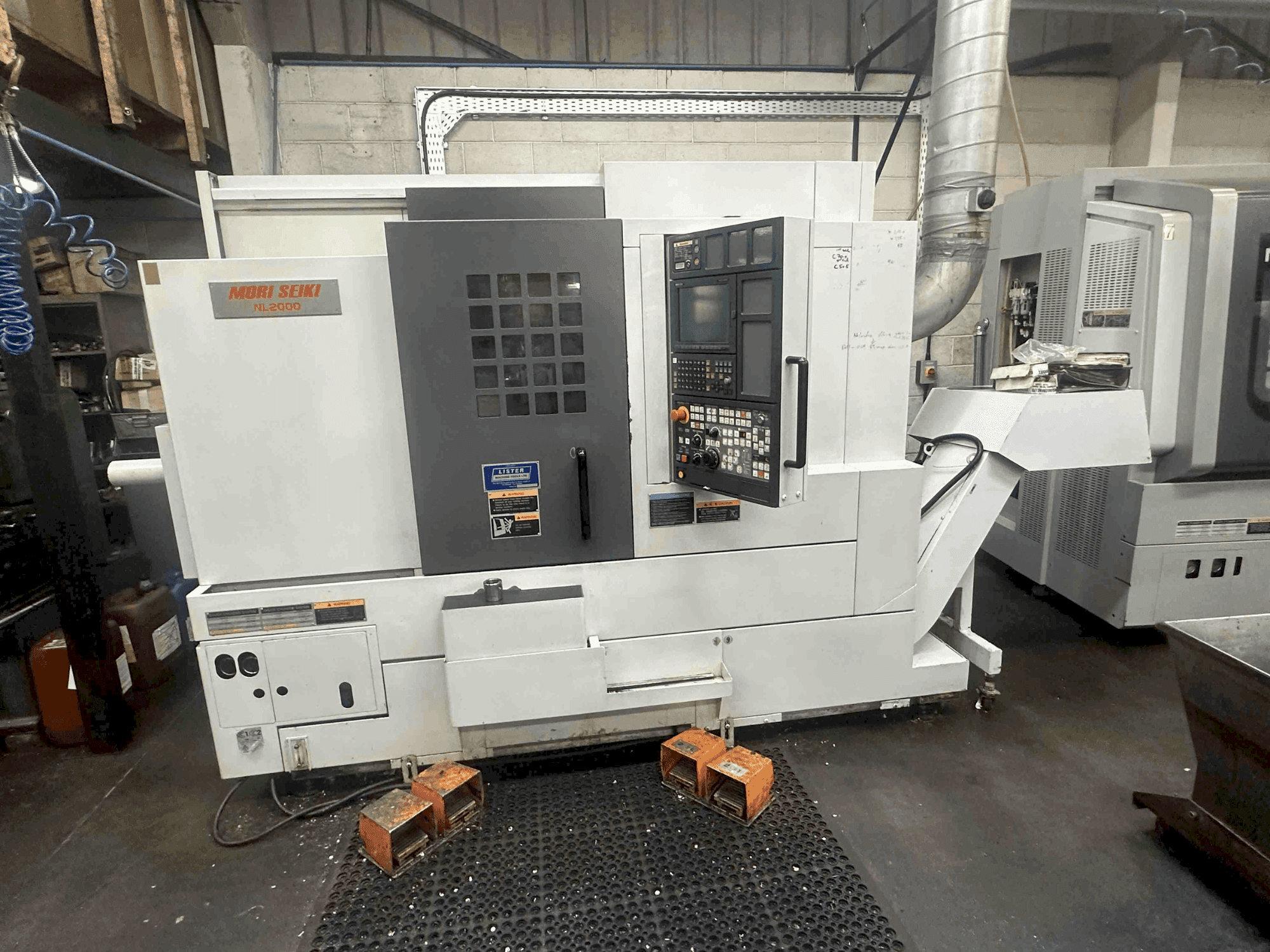

Front view of MORI SEIKI NL2000SY/500  machine

MORI SEIKI - NL2000SY/500IE-TUR-MOR-2006-00001

60,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This MORI SEIKI NL2000SY/500 was manufactured in 2006. A robust CNC lathe with sub spindle and driven tools, it features a max turning diameter of 366mm and a length of 510mm. It supports bar work up to 65mm and includes a BMT tool turret and a swarf conveyor. Ideal for precision tasks, the machine we have for sale offers a swing over bed of 923mm and a main spindle speed up to 5000rpm. Contact us for more information.

Overview

  • brand: MORI SEIKI
  • year: 2006
  • MODEL: NL2000SY/500
  • application type: Turning
  • Location: Ireland
  • machine type: Turn-Mill Centre
  • availability: Immediately
  • control unit brand: Mori Seiki/Mitsubishi

Technical Information - MORI SEIKI NL2000SY/500

General Data

  • Measurements width: 2000 MM
  • Measurements depth: 2705 MM
  • Measurements height: 2120 MM
  • Machine weight: 5800 KG

Control Unit

  • Brand: Mori Seiki/Mitsubishi
  • Model: MSX-850III

Main drive

  • Spindle speed range: Main Spindle: 5000: Sub Spindle: 6000 1/MIN
  • Spindle motor power: 15kW

Movement

  • X-AXIS Movement: 260 mm
  • X-AXIS Rapid traverse: 30,000mm/min
  • Y-AXIS Movement: +/-50mm(100mm)
  • Y-AXIS Rapid traverse: 10,000mm/min
  • Z-AXIS Movement: 590mm
  • Z-AXIS Rapid traverse: 30,000mm/min
  • V-Axis Movement: 624mm
  • V-Axis Rapid traverse: 30,000mm/min

Workpiece

  • Workpiece drm: 366mm
  • Workpiece x: 510 mm

    Additional Equipment

    • - Static Tool Holders
    • - 2 x Axial Driven Tool Holders
    • - 1 x Radial Driven Tool Holder
    • - Barfeed Interface
    • - Swarf Conveyor
    • - Tool Presetter
    • - Parts Catcher
    • - BMT Tool Turret

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Sub spindle motor power: 11kw
        • - Rotary tool motor power: 5. 5kw
        • - Min spindle indexing: 0. 001゜
        • - Turret indexing time: 0. 25sec
        • - Coolant tank capacity: 235l
        • - Distance between centres: 500mm
        • - Standard chuck size - spindle 1: 8"
        • - Standard chuck size - spindle 2: 6"
        • - Bar work capacity: 65mm
        • - Swing over bed: 923mm
      • Qualitative Machine Benefits:
        • - Swing over cross-slide: 755mm
        • - Standard turning diameter: 275mm
        • - Shank height for square tool: 25mm
        • - Boring bar shank diameter: 50mm
        • - Rotary tool shank diameter: 26mm
        • - Electrical power supply: 35. 9kva
        • - Very good condition

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
