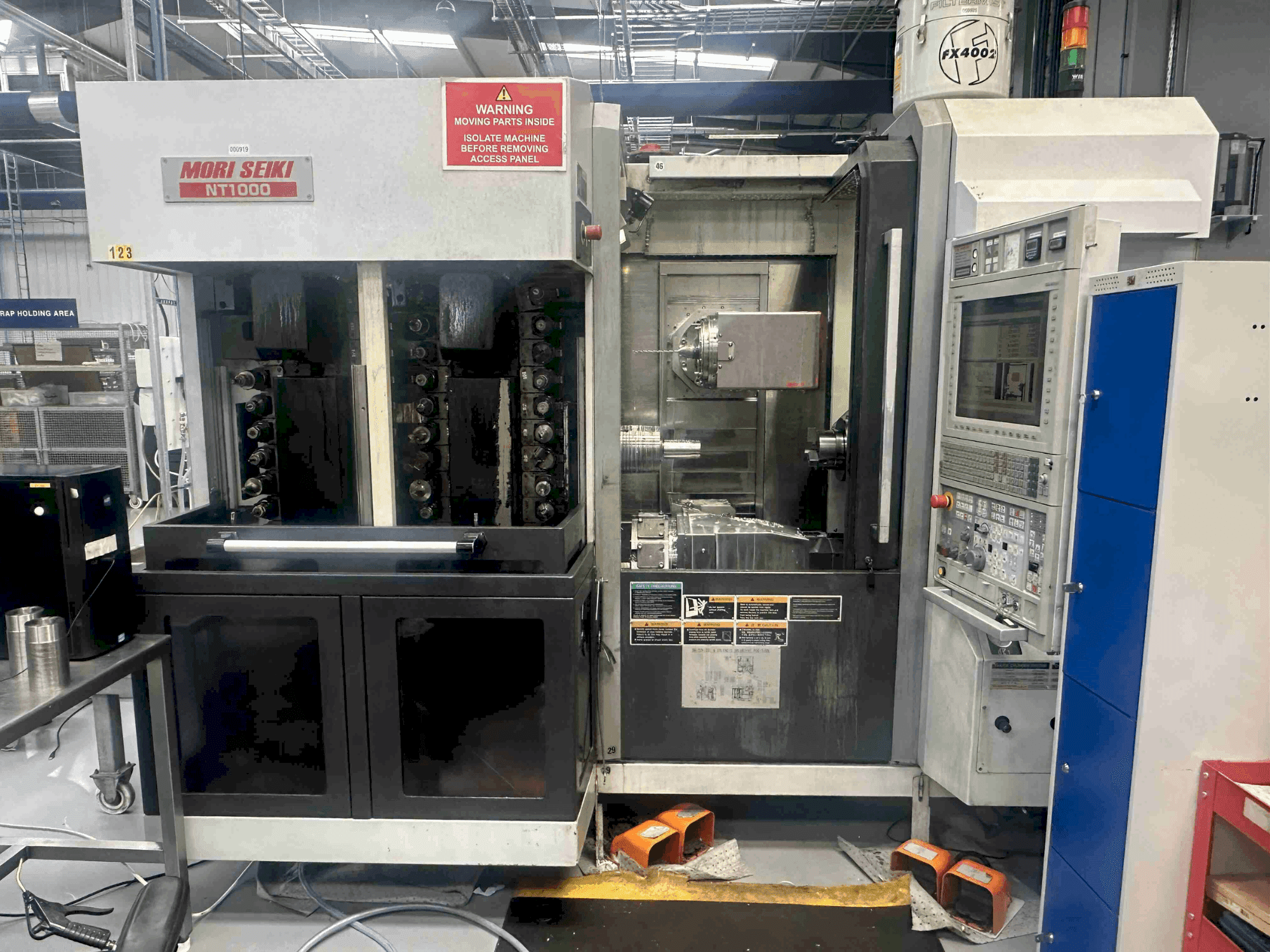

Front view of MORI SEIKI NT1000SZM machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

MORI SEIKI NT1000SZM

Photo Gallery

MORI SEIKI - NT1000SZMIE-TUR-MOR-2010-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used MORI SEIKI NT1000SZM Lathe For Sale | gindumac.com

Show in original language

This Mill Turn Centre was manufactured in 2010. A robust Mori Seiki NT1000SZM, it features MSX-711IV control, a high-speed tool spindle at 20,000rpm, and a 76 tool ATC. It supports a max turning diameter of 370mm and length of 400mm. Additional features include a 70 Bar high-pressure coolant system and a Knoll compact filter unit. Ideal for precision machining, the Mori Seiki NT1000SZM machine we have for sale. Contact us for further details regarding this Mill Turn Centre.

Overview

brand: MORI SEIKI
year: 2010
MODEL: NT1000SZM
production hours: 16400
application type: Turning
Location: Ireland
machine type: Turn-Mill Centre
control unit brand: MITSUBISHI

Technical Information - MORI SEIKI NT1000SZM

Control Unit

Control Brand: MITSUBISHI
Control Model: MSX-711IV

Dimensions

Machine Depth: 3810 mm
Machine Height: 2670 mm
Machine Weight: 8500 kg

Movement

B-axis Max: 120°
B-axis Min: 120°
C-axis: 360°
X-axis Travel: 380 mm
Y-axis Travel: 210 mm
Z-axis Travel: 480 mm

Technical Specification

Max. Tool Weight: 5 kg
Max. Workpiece Diameter: 370 mm
Spindle Power: 11 kW
Spindle Speed: 20000 RPM
Through-spindle Coolant: Yes

Additional Information

Additional equipment

Kitagawa 5" Chuck // Kitagawa 8" Hollow Chuck
Spindle 1 Through-Hole Spindle 73mm
76 Tool ATC
Full selection of Tool Holders as seen in videos
Swarf Conveyor // Workpiece Conveyor for Bar Feeder
70 Bar High Pressure Coolant System
Air Blow for Chuck (Spindle 1) // Air Blow for Tool Tip (Tool Spindle)
In Machine Tool Presetter for Tool Spindle and Turret 2
Bar Feed Interface
Tool Counter // Workpiece Counter

Machine Benefits

Qualitative Machine Benefits

Excellent condition

Technical Machine Benefits

High speed tool spindle - 20,000rpm // tool spindle drive motor: 9/5. 5kw
Signal tower
Double foot switch for both spindles
Part program storage length (1mb) + 1000 registerable programs
Knoll compact filter unit
Double wound transformer
Igh-speed tool spindle (20,000rpm), high-pressure coolant system (70 bar), comprehensive tool storage capacity (76 tools), advanced control system (msx-711iv)
Through spindle hole diameter: 73mm

Extra Information

Machine still undern power

Machine History

Industries

Medical device

End product

Medical device components

Material type

Stainless steel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
