Thank you for your visit

This machine was recently sold.

Browse similar machines

MORI SEIKI - NT4200 DCGUS-TUR-MOR-2007-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

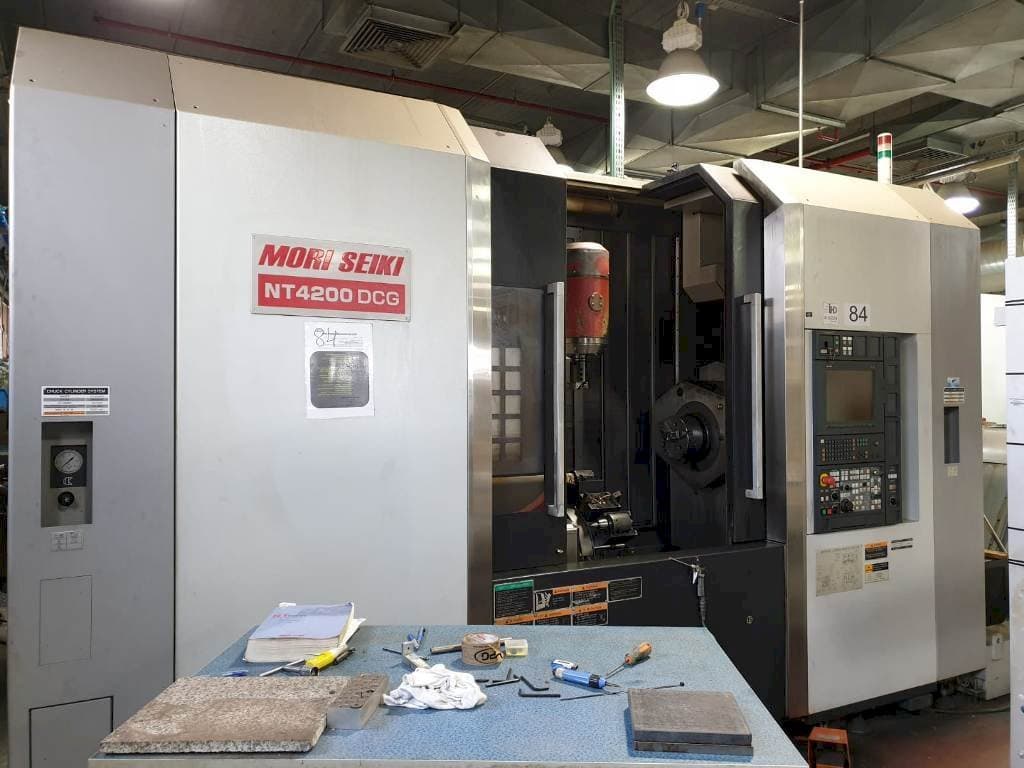

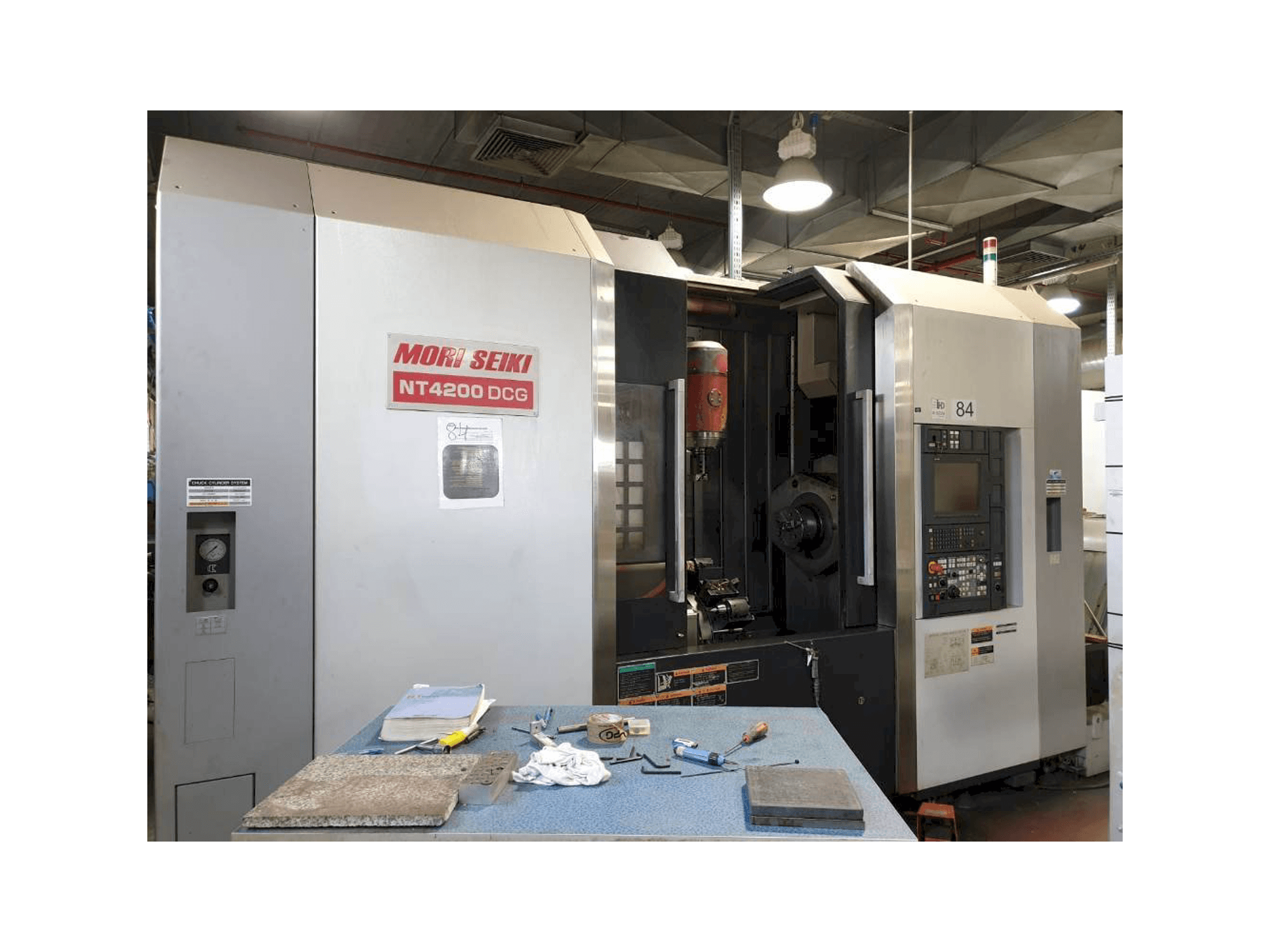

This MORI SEIKI NT4200 DCG Lathe was manufactured in Japan in the year 2007. This machine is capable of working with the main spindle speed and the sub spindle speed up to 5000 rpm. It is a very well kept machine that comes with sub turret.

Overview

  • brand: MORI SEIKI
  • year: 2007
  • MODEL: NT4200 DCG
  • application type: Turning
  • Location: United States
  • machine type: Turn-Mill Centre

Technical Information - MORI SEIKI NT4200 DCG

Dimensions

  • Machine Weight: 22500 kg

Technical Specification

  • Max. Tool Weight: 8 kg
  • Spindle Speed: 5000 RPM

Additional Information

Additional equipment

  • Twin 203 mm chucks
  • Sub Turret
  • 42 ATC

Machine Benefits

Qualitative Machine Benefits

  • Sub spindle through-hole: 74 mm
  • Min. Sub spindle indexing angle: 0. 0001°
  • Sub spindle bearing inside diameter: 119 mm
  • Max. Tool diameter w/ adjacent tools: 71 mm
  • Max. Tool diameter w/o adjacent tools: 140 mm
  • Square shank height of single point tool: 25 mm
  • Shank diameter of boring bar: 51 mm
  • Rotary tool spindle speed: 6000 rpm

Technical Machine Benefits

  • Tool spindle x-axis travel 749 mm
  • Tool spindle y-axis travel +/- 211 mm
  • Tool spindle z-axis travel 1120 mm
  • Tool spindle b-axis rotation range: +/- 120°
  • Workpiece swing: 729 mm // swing over cross slide: 399 mm
  • Distance between spindles: 1346 mm // bar work capacity (main + sub spindle): 66 mm
  • Max. Turning diameter: 345 mm // max. Turning length: 1062 mm
  • Twin spindle with sub turret // tool spindle connection: capto c6
  • Turret x-axis travel: 196 mm // turret z-axis travel: 1011 mm
  • Sub spindle speed: 5000 rpm // sub spindle nose type: jis a2-6

Extra Information

This is a very nice well kept clean machine.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
