- MTcut UD100H-5ASi Vertical Machining Center

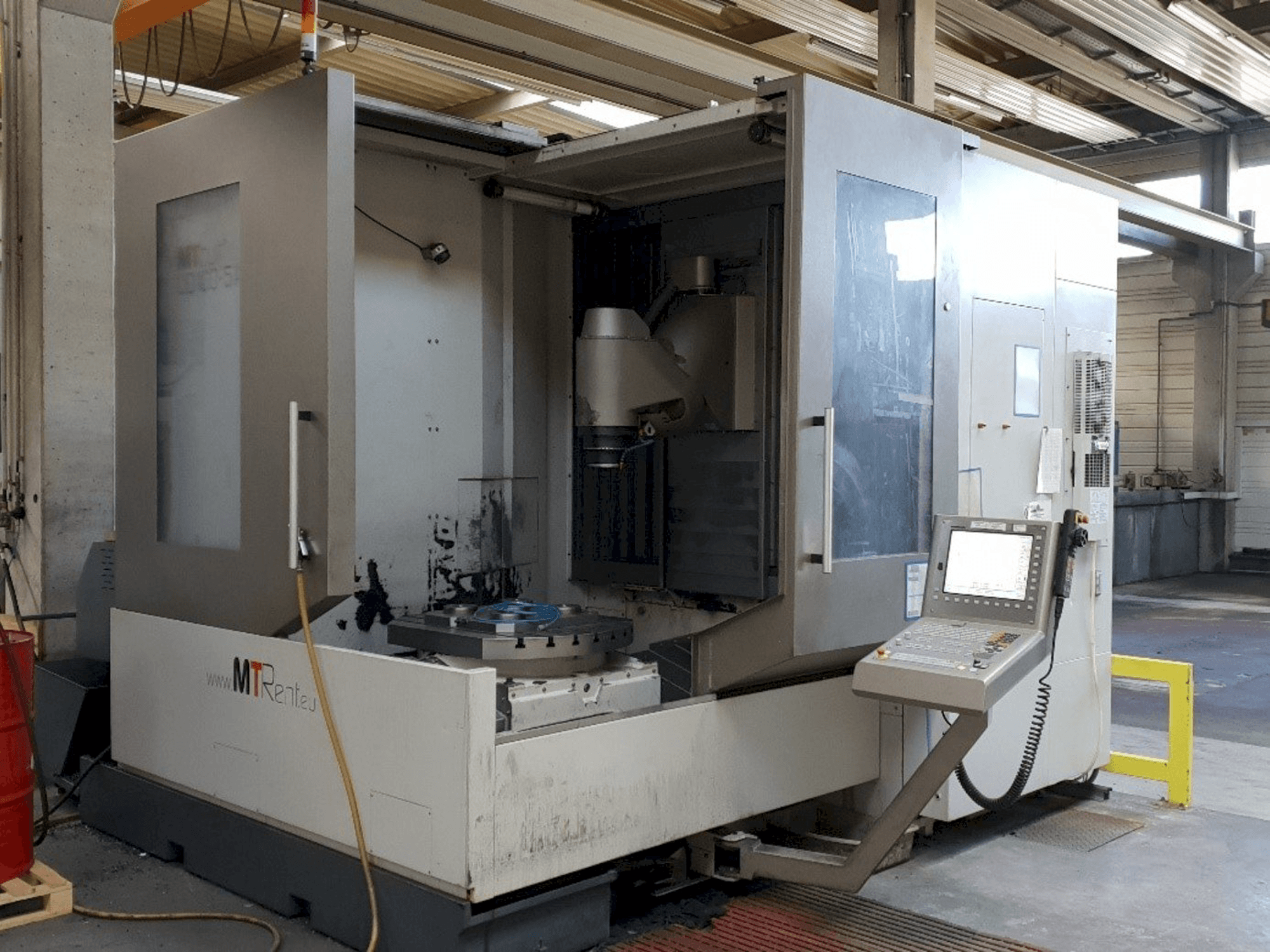

This MTcut UD100H-5ASi Vertical Machining Center was manufactured in the year 2014 and has 54811 production hours, of which 9658 are spindle hours. It is equipped with Heidenhain iTnc 530 SmarT.NC control unit. The machine has a spindle speed of 18000 rpm.
Overview
- brand: MTcut
- year: 2014
- MODEL: UD100H-5ASi
- production hours: 54811
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: HEIDENHAIN
Technical Information - MTcut UD100H-5ASi
General Data
- Machine weight: 15000 kg
Control Unit
- Model: iTnc 530 SmarT.NC
- Brand: HEIDENHAIN
Main drive
- Spindle speed range: 18000 1/MIN
Movement
- X-AXIS Movement: 1000 mm
- Y-AXIS Movement: 800 mm
- Z-AXIS Movement: 700 mm
- B-AXIS Movement: 0,001° x 180° MM
- C-AXIS Movement: 0,001° x 360° MM
Additional Information
- Technical Machine Benefits:
- - Integrated round table: 360° stepless and with hydraulic clamping, Ø 1000 x 800 mm
- - Table spindle nose: 50 - 750 mm
- - Table: Ø1000 mm
- - Max torque: 162 nm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
