➤ Used YCM NSV 156 A For Sale | gindumac.com

Show in original language

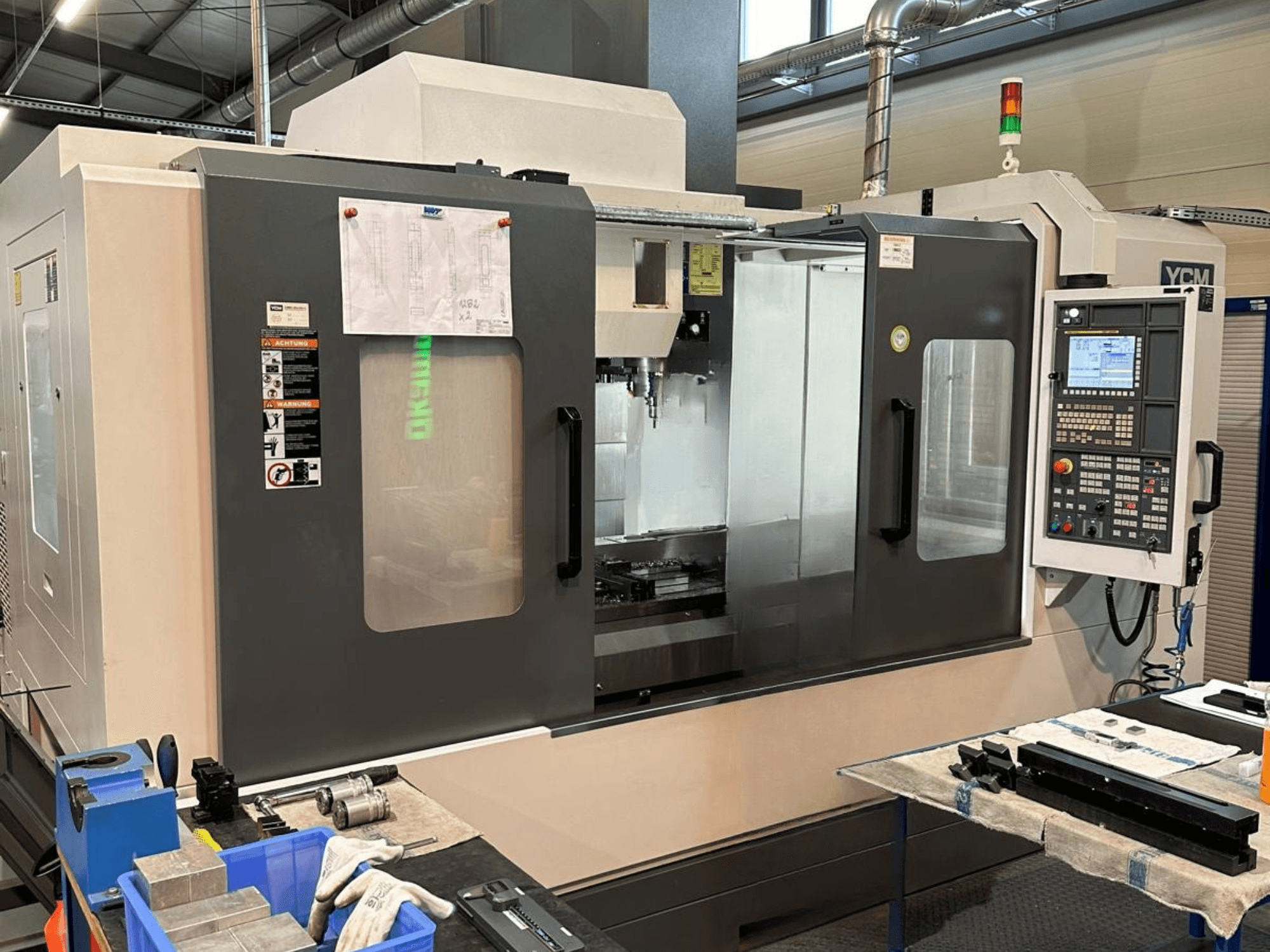

This 3-axis YCM NSV 156 A was manufactured in 2013. It features a travel distance of 1530 mm in the X-axis, 650 mm in the Y-axis, and 610 mm in the Z-axis. The machine includes a robust table size of 1630 x 650 mm and a maximum table load of 1500 kg. If you are looking to get high-quality machining capabilities, consider the YCM NSV 156 A vertical machining centre we have for sale. Contact us for further details.

Overview

brand: YCM
year: 2013
MODEL: NSV 156 A
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - YCM NSV 156 A

Dimensions

Table Length: 1630 mm
Table Load: 1500 kg
Table Width: 650 mm

Movement

Number of Axes: 3
X-axis Travel: 1530 mm
Y-axis Travel: 650 mm
Z-axis Travel: 610 mm

Technical Specification

Spindle Speed: 12000 RPM
Tool Stations: 30

Additional Information

Travel X: 1530 mm
Travel Y: 650 mm
Travel Z: 610 mm
Table Length: 1630 mm
Table Width: 650 mm
Table Load: 1500 kg
Spindle Speed: 12,000 rpm
Spindle Taper: BBT40
Tool Positions: 30
Maximum Tool Diameter: 76 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
