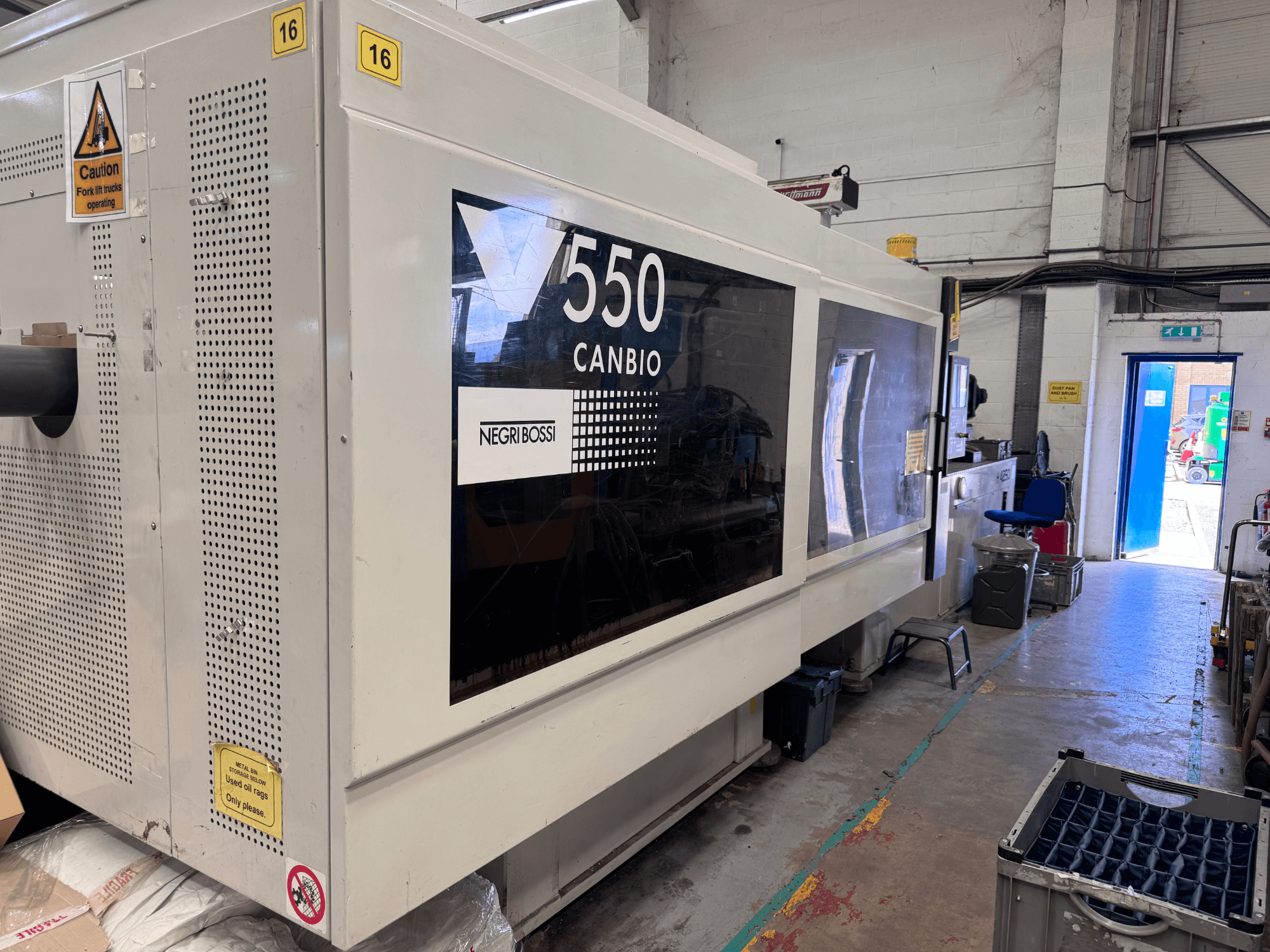

Hydraulic injection moulding machine manufactured in 2011. This Negri Bossi 5500H-4250 features a screw diameter of 90 mm and a real injection volume of 2,600 cc. It offers a maximum clamping force of 5,500 kN and a max opening stroke of 900 mm. If you are looking to get high-quality plastic injection moulding capabilities, consider the Negri Bossi 5500H-4250 machine we have for sale. Contact us for further details.
Overview
- brand: Negri Bossi
- year: 2011
- MODEL: 5500H-4250
- application type: Injection Moulding
- Location: United Kingdom
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Negri Bossi 5500H-4250
Technical Specification
- Clamping Force: 5500 kN
- Screw Diameter: 90 mm
Additional Information
Euromap: 5500H-4250
Real injection volume: 2,600 cc
Real injection capacity PS: 2,365 g
Plastification capacity PS: 105 g/sec
Max. pressure on material: 1,630 bar
Max. screw rotation speed: 175 rpm
Screw torque: 4,000 Nm
Distance between tie bars (H x V): 800 x 900 mm
Platen dimensions (H x V): 1,260 x 1,310 mm
Min / max mould height: 300–850 mm
Nozzle forward power: 134 kN
Max. opening stroke: 900 mm
Max. ejector stroke: 300 mm
Max. hydraulic pressure – clamp: 180 bar
Max. hydraulic pressure – injection: 195 bar
Pump driving power: 55 kW
Heating power: 34 kW
Total installed power: 90 kW
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
