➤ Used Netstal ELION 1200-530 PS For Sale | gindumac.com

Show in original language

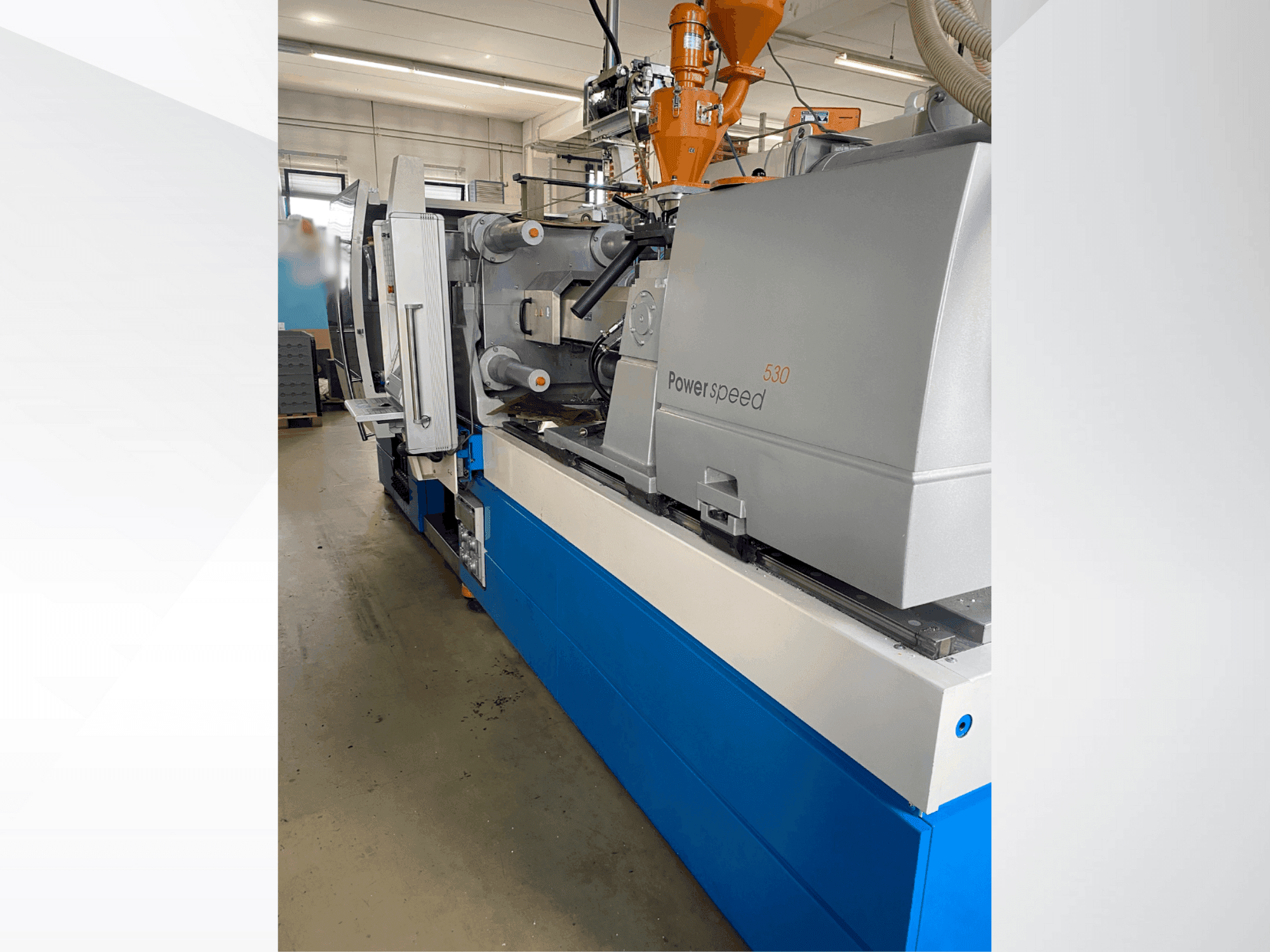

This Netstal ELION 1200-530 PS hydraulic injection moulding machine was manufactured in 2007. It features a closing force of 1200 KN, a screw diameter of 45 mm, and a maximum injection pressure of 2086 bar. The machine can handle a mould weight up to 1556 kg and offers a shot weight of 244.1 gr. Ideal for precision moulding, the Netstal ELION 1200-530 PS machine we have for sale represents a robust addition to any production line. Contact us for more information.

Overview

brand: Netstal
year: 2007
MODEL: ELION 1200-530 PS
application type: Injection Moulding
Location: Switzerland
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Netstal ELION 1200-530 PS

General Data

Measurements width: 1780 MM
Measurements depth: 5330 MM
Measurements height: 2044 MM
Machine weight: 10100 KG

Injection Unit

Screw diameter: 45 mm
Shot weight: Max shot weight:
Injection pressure: 2086 bar
Heating capacity: 20.9 kW

Clamping unit

Clamping force: 1200 kn
Opening stroke: 400 mm
Distance between bars: 460 x 460 mm
Mould height min: 250 mm
Mould height max: 550 mm
Ejector stroke: 120 mm
Ejector force for / back: 33 kN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max metering stroke: 160 mm
- - Max shot volume: 254. 5 cm³
- - Standard injection flow rate: 397. 6 cm³/s
- - Power injection flow rate: 715. 7 cm³/s
- - Max injection speed standard/power: 250 / 450 mm/s
- - Max screw speed force/speed/master: 350 / 525 / 550 rpm
- - Max torque force: 700 nm
- - Max torque speed: 490 nm
- - Max torque master: 700 nm
- - Opening force: 1200 kn
Qualitative Machine Benefits:
- - Mold installation height ii: 450 – 750 mm
- - Max mold weight: 1556 kg
- - Max retraction force: 33 kn
- - Dry cycle stroke: 1. 3 - 322 seconds per mm
- - Nozzle contact force: 25 / 50 kn
- - Nozzle lift-off stroke: 510 mm

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
