Nicolas Correa - CF-22ES-MIL-NIC-1998-00002

Name: Nicolas Correa CF-22
Brand: Nicolas Correa
SKU: ES-MIL-NIC-1998-00002
Price: 22000 EUR
Availability: InStock

22,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Nicolas Correa CF-22 - For Sale | gindumac.com

Show in original language

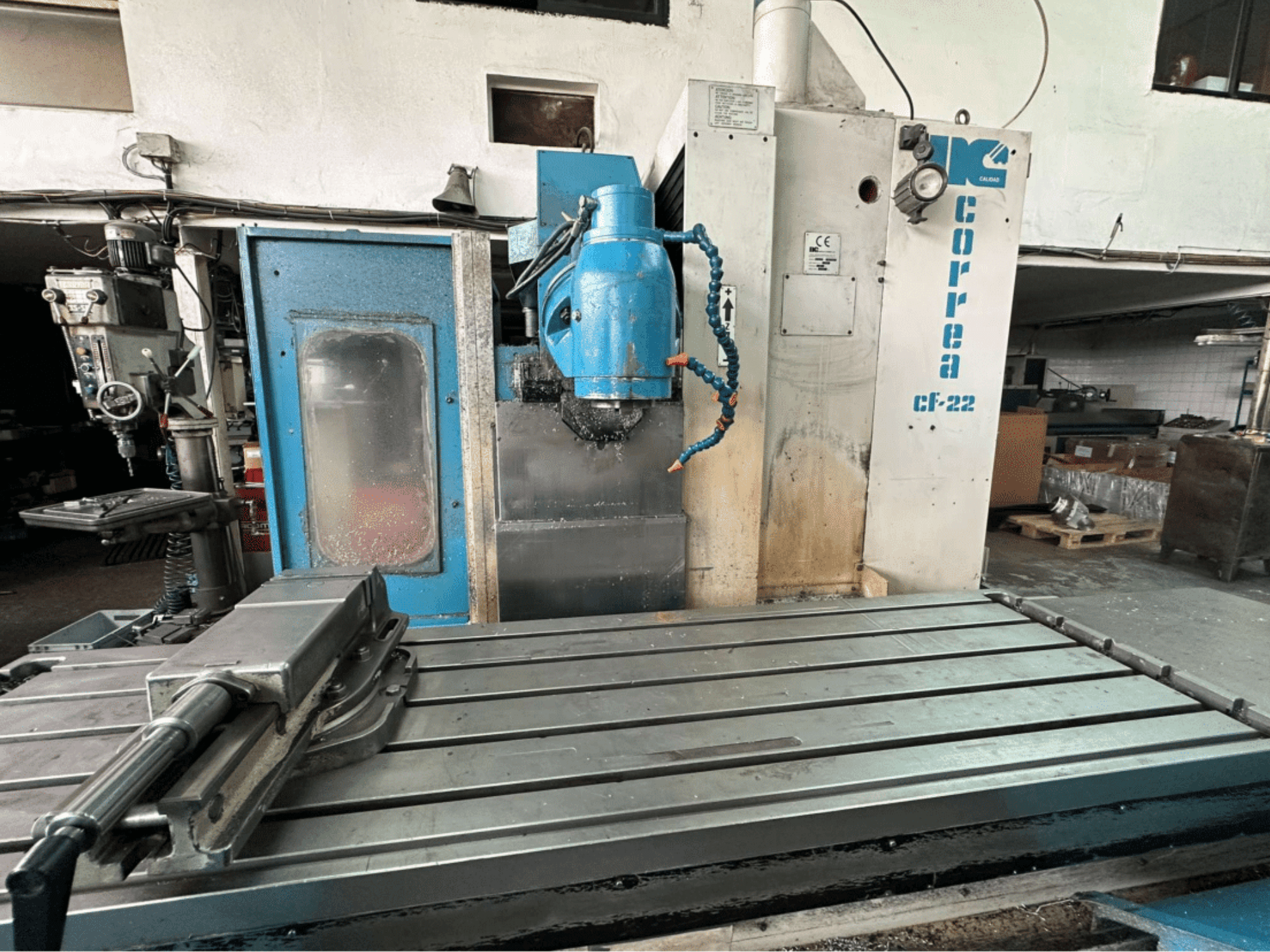

This 3-axis Nicolas Correa CF-22 Bed Type Milling Machine was manufactured in 1998. It features a universal manual U22 head with dual orientation, hydraulic tool clamping, and an ISO 50 tool taper. The table dimensions are 2,500 × 700 mm, supporting a maximum load of 4,000 kg. Spindle speeds range up to 4,000 rpm, powered by a 29 kW motor. Reach out for further details regarding this machine.

Overview

brand: Nicolas Correa
year: 1998
MODEL: CF-22
application type: Milling
Location: Spain
machine type: Bed Type Milling Machine

Technical Information - Nicolas Correa CF-22

Dimensions

Machine Height: 2760 mm
Machine Length: 6600 mm
Machine Weight: 9500 kg
Table Load: 4000 kg

Movement

Number of Axes: 3
X-axis Travel: 2500 mm
Y-axis Travel: 800 mm
Z-axis Travel: 800 mm

Technical Specification

Spindle Power: 29 kW
Spindle Speed: 4000 RPM
Taper Size: ISO 50

Additional Information

Table dimensions: 2,500 × 700 mm
T-slots: 5
T-slot width: 22 mm
Head type: Universal manual U22 (dual orientation)
Indexing: Manual in 2 planes
Tool clamping: Hydraulic
Feed rates:
- Working feed (X/Y/Z): 5 – 5,000 mm/min
- Rapid traverse (X/Y/Z): 12,000 mm/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
