- Nukon NF PRO 315 Fiber laser cutting machine

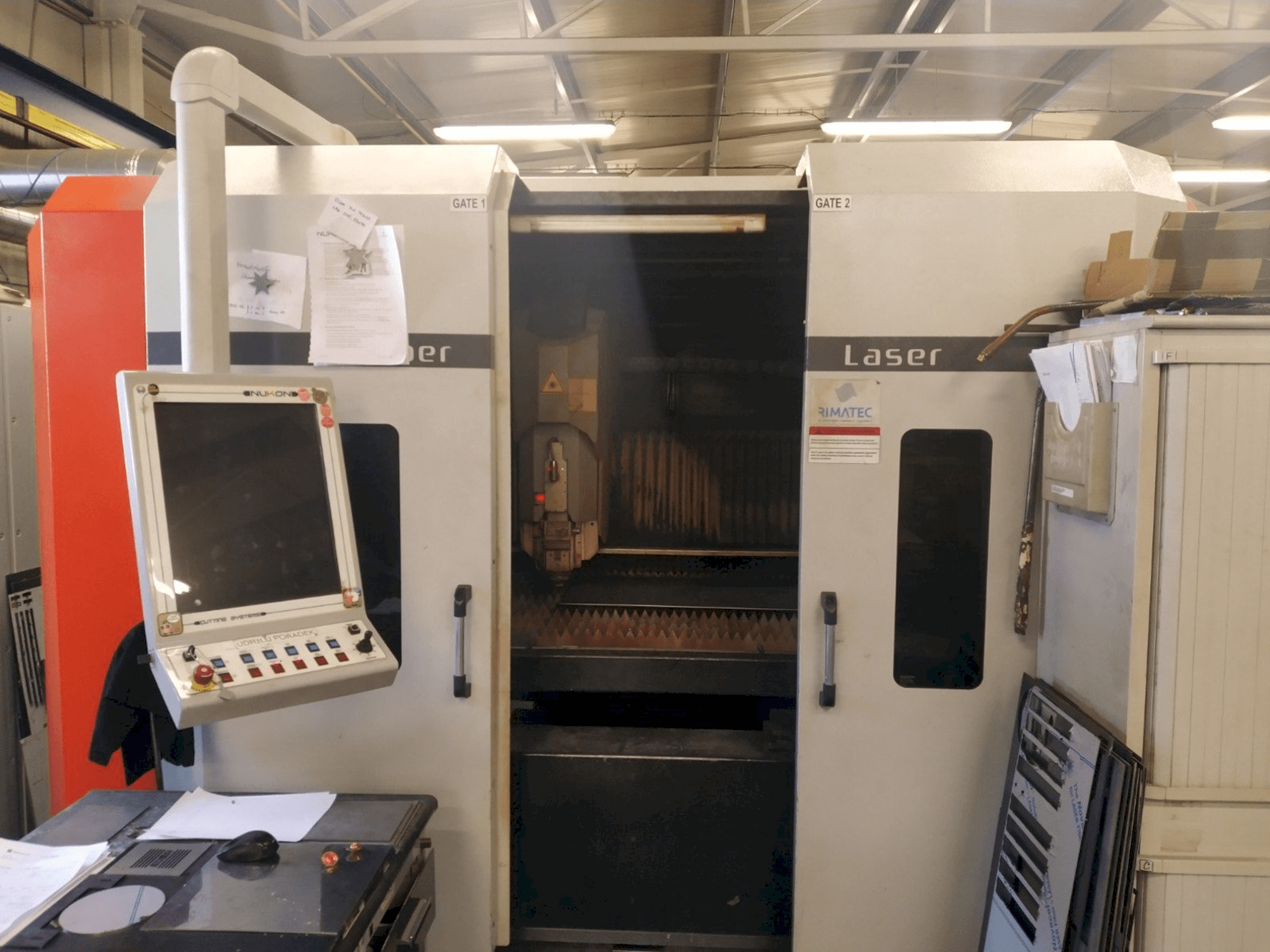

This Nukon NF PRO 315 Fiber laser cutting machine was manufactured in the year 2014 in Turkiye. It is equipped with a Nukon PA 8000 LW control unit. The machine has a laser power of 2,0 kW.
Overview
- brand: NUKON
- year: 2014
- MODEL: NF PRO 315
- application type: Laser Cutting
- Location: Czech Republic
- machine type: Fiber laser cutting machines
- availability: Sold
- control unit brand: Nukon
Technical Information - NUKON NF PRO 315
General Data
- Measurements width: 8997 mm
- Measurements depth: 4830 mm
- Measurements height: 2300 mm
- Machine weight: 15500 kg
Control Unit
- Brand: Nukon
- Model: PA 8000 LW
Main drive
- Laserpower: 2 kW
Movement
- X-AXIS Movement: 1530 mm
- Y-AXIS Movement: 3050 mm
- Z-AXIS Movement: 150 mm
Workpiece
- Workpiece x: 1500 mm
- Workpiece y: 3000 mm
- Workpiece weight: 5000 kg
Max Material thickness
- Steel: 16 mm
- Stainless steel: 6 mm
- Aluminum: 8 mm
Additional Information
- Technical Machine Benefits:
- - Table height: 900 mm
- - Cutting head high yag bimo fsc
- - Laser fiber diameter: 100 microns
- - Rapid feedrates: x,y: 120 m/min
- - Replacable tables: 45 s change time
- - Total input: 20 kw
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
