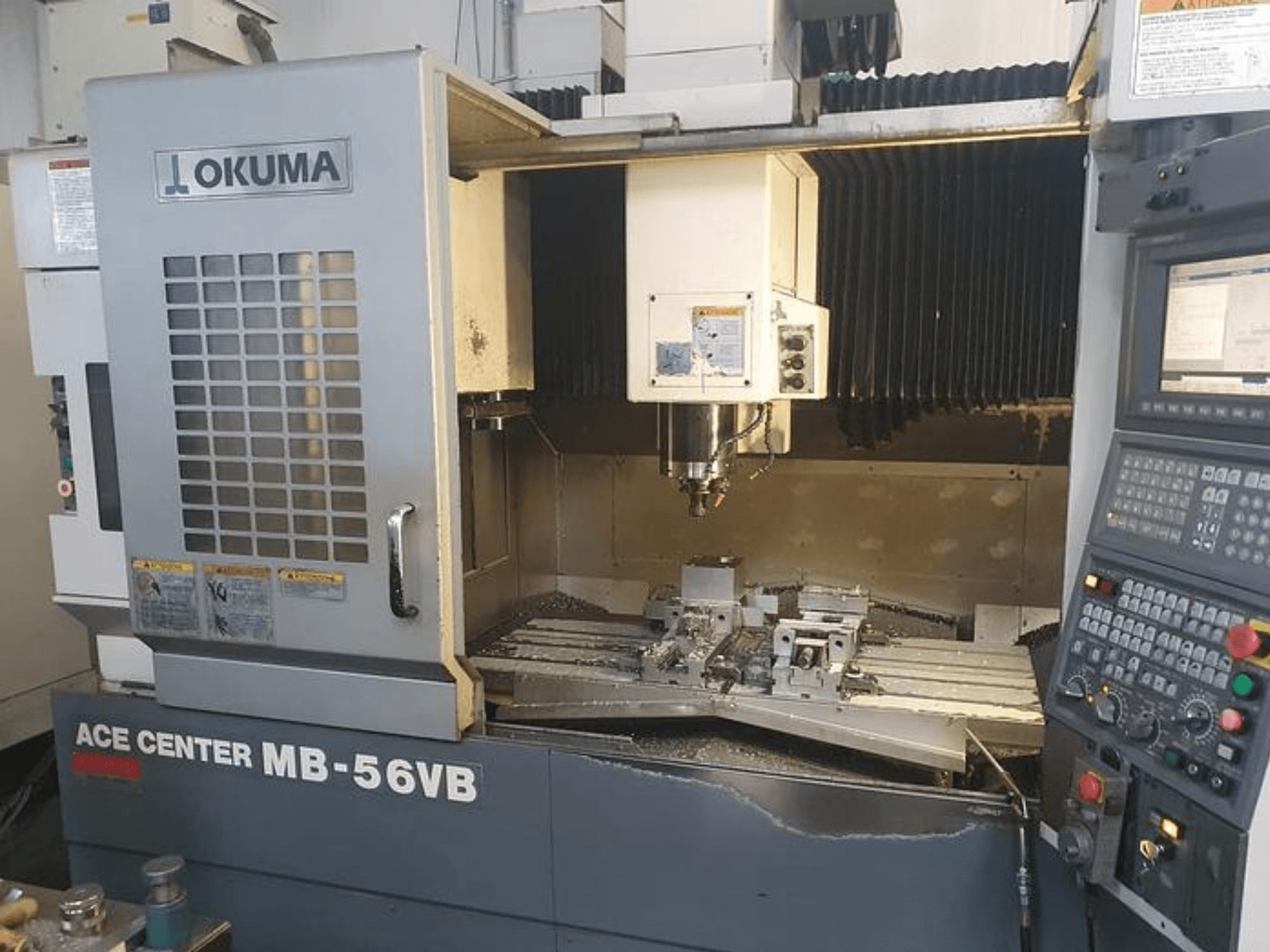

This 3-axis Okuma MB-56VB vertical machining center was manufactured in 2005. It features a working surface of 1300 × 560 mm, a maximum table load of 900 kg, and rapid feed rates of 40 m/min in X/Y and 32 m/min in Z. The spindle operates up to 12,000 rpm with a power of 20 kW. Tool magazine holds 32 tools. If you are looking to get high-quality milling capabilities consider the Okuma MB-56VB machine we have for sale. Contact us for more information.

Overview

brand: Okuma
year: 2005
MODEL: MB-56VB
application type: Milling
Location: Italy
machine type: Vertical Machining Centre

Technical Information - Okuma MB-56VB

Dimensions

Machine Depth: 3000 mm
Machine Height: 2750 mm
Machine Length: 2550 mm
Machine Weight: 6900 kg

Movement

Number of Axes: 3
X-axis Travel: 1050 mm
Y-axis Travel: 560 mm
Z-axis Travel: 460 mm

Additional Information

Working surface: 1300 x 560 mm
Table height from floor: 800 mm
Maximum table load: 900 kg
T-slots: 3 x 18 mm
T-slot pitch: 125 mm
Rapid feed X/Y: 40 m/min
Rapid feed Z: 32 m/min
Maximum cutting feed (X/Y/Z): 32000 mm/min
Positioning accuracy (X/Y/Z): ±0.004 mm (JIS Standard)
Repeatability (X/Y/Z): ±0.0015 mm / 100 mm (JIS Standard)
Spindle nose to table distance: 180–630 mm
Tool magazine capacity: 32 tools
Tool selection: Random
Tool holder type: BT MAS
Tool holder: BT 50
Pull stud: MAS P2 special
Tool change time (adjacent tools): 1.2 s
Max. tool diameter (adjacent): 90 mm
Max. tool diameter (non-adjacent): 125 mm
Max. tool length: 300 mm
Max. tool weight: 18 kg
Spindle speed: 50–12000 rpm
Spindle speed ranges: 1 (continuous variation)
Maximum spindle power: 20 / 15 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
