Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

ONA DB300

Photo Gallery

ONA - DB300ES-EDM-ONA-2006-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used ONA DB300 - Die-Sinking EDM For Sale | gindumac.com

Show in original language

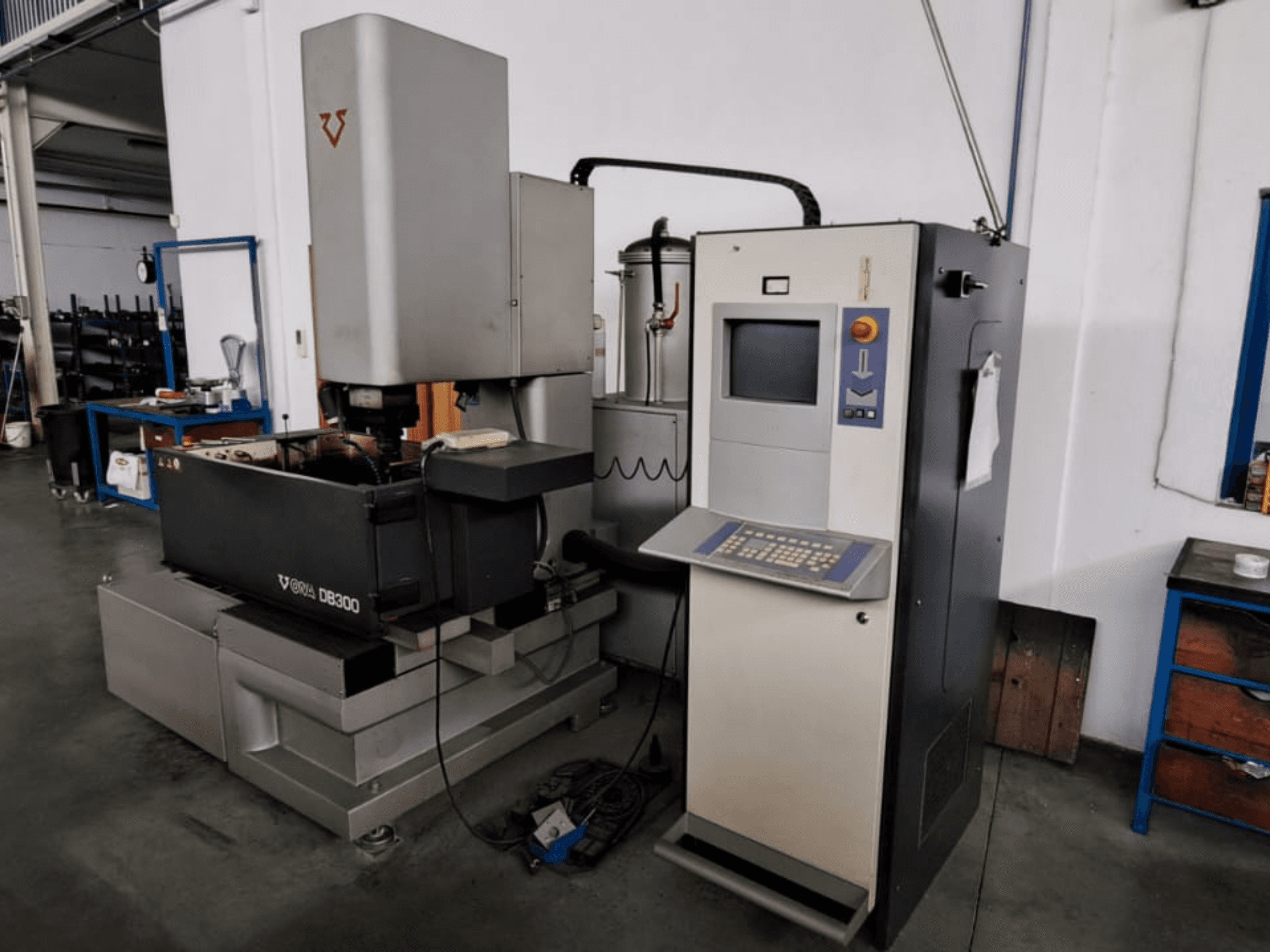

This 3-axis ONA DB300 die-sinking EDM machine was manufactured in 2006. It features an X-axis travel of 300 mm, Y-axis travel of 200 mm, and Z-axis travel of 250 mm. The work table dimensions are 400 x 300 mm, with a maximum workpiece weight of 200 kg. If you are looking to get high-quality die-sinking capabilities, consider the ONA DB300 machine we have for sale. Contact us for further details.

Overview

brand: ONA
year: 2006
MODEL: DB300
application type: EDM
Location: Spain
machine type: Die-Sinking EDM Machine

Technical Information - ONA DB300

Dimensions

Machine Weight: 1600 kg

Movement

Number of Axes: 3
X-axis Travel: 300 mm
Y-axis Travel: 200 mm
Z-axis Travel: 250 mm

Additional Information

Work table dimensions: 400 x 300 mm
Maximum workpiece weight: 200 kg
Maximum electrode weight: 30 kg
Tank dimensions: 800 x 500 x 320 mm
Dielectric fluid capacity: 300 liters
Maximum current: 30 A (standard) / 60 A (optional)
Control unit: ONA CNC (S64 / S94 series)
Power supply: 400 V / 50 Hz

Additional equipment

Automatic Tool Changer (ATC), optional (typically 4–12 positions)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
