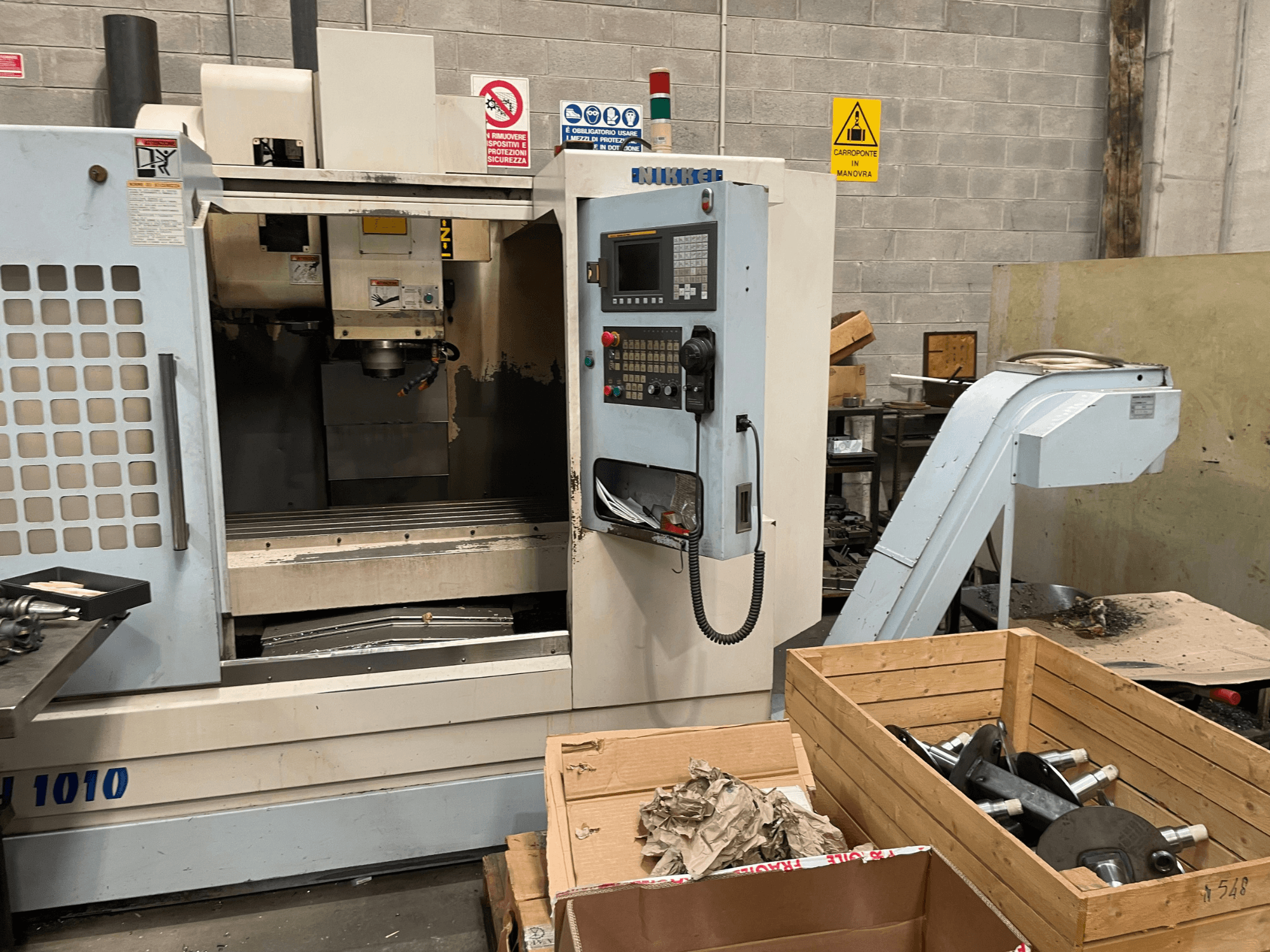

This 3-axis NIKKEI VH-1010 was manufactured in 2007. It features a table size of 1200 × 450 mm and a maximum table load of 450 kg. The machine offers impressive axis travels with an X-axis of 1010 mm, Y-axis of 500 mm, and Z-axis of 520 mm. If you are looking to get high-quality machining capabilities, consider the NIKKEI VH-1010 vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: Other
- year: 2007
- MODEL: VH-1010
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
Technical Information - Other VH-1010
Dimensions
- Machine Height: 2700 mm
- Machine Length: 2508 mm
- Machine Weight: 5350 kg
- Machine Width: 2900 mm
Movement
- Number of Axes: 3
- X-axis Travel: 1010 mm
- Y-axis Travel: 500 mm
- Z-axis Travel: 520 mm
Technical Specification
- Spindle Power: 7.5 kW
- Spindle Speed: 8000 RPM
- Taper Size: BT 40
Additional Information
Table
Table size: 1200 × 450 mm
T-slot: 5 / 75 / 18 mm
Distances
Spindle nose to table: 120 – 650 mm
Spindle center to Z-axis guide way: 540 mm
Distance from Z-axis guide way to table center: 290 – 790 mm
Spindle
Spindle diameter: Ø65 mm
Feed rates
Rapid feed (3 axes): 15000 mm/min
Cutting feed: 1 – 5000 mm/min
General
Packing dimensions: 2788 × 2300 × 2450 mm
Accuracy
Positioning accuracy: ±0.003 mm
Repeatability: 0.005 / 300 mm
Other
Air pressure: 5 kg/cm²
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
