➤ Used PAVONI V2400 Open Top For Sale | gindumac.com

Show in original language

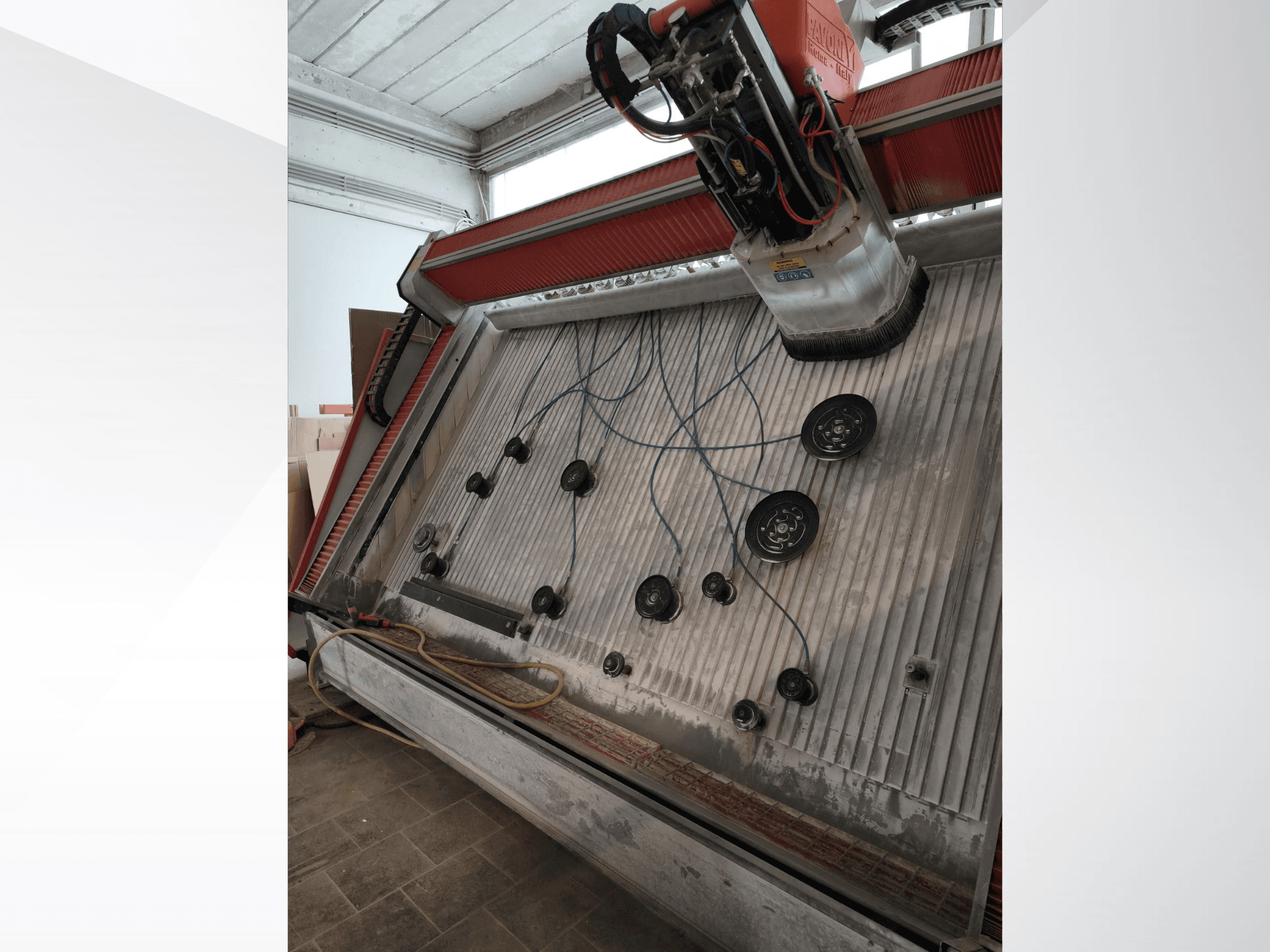

This 3-axis PAVONI V2400 Open Top was manufactured in 2011. It features an X-axis travel of 2360 mm, Y-axis travel of 1800 mm, and Z-axis travel of 300 mm. The machine is equipped with a powerful 7.5 HP spindle and operates at speeds ranging from 1000 to 12000 RPM. If you are looking to get high-quality machining capabilities, consider the PAVONI V2400 Open Top vertical machining centre we have for sale. Contact us for further details.

Overview

brand: PAVONI
year: 2011
MODEL: V2400 Open Top
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - PAVONI V2400 Open Top

Dimensions

Machine Height: 2914 mm
Machine Length: 3679 mm
Machine Weight: 3800 kg
Machine Width: 2457 mm

Movement

Number of Axes: 3
X-axis Travel: 2360 mm
Y-axis Travel: 1800 mm
Z-axis Travel: 300 mm

Technical Specification

Spindle Power: 5.5 kW
Spindle Speed: 12000 RPM
Taper Size: ISO 40

Additional Information

- Working Hours: very low, used for only a few hours

- Control Console: TexComputer control console

- Spindle Power: HP 7.5

- Spindle Speed Range: 1000 - 12000 RPM

- Control Console Dimensions (LxWxH): 400 x 600 x 1600 mm

- Standard Equipment Included:

- Tool holders, milling, grinding, and polishing tools

- Vacuum units / suction cups

- Rollaway pneumatic supports

- Supports with eccentric rollers for sliding glass plates

- Laser crosshair aiming system for zero-points

- Anti-splinter drilling support

- Separate Data Input Computer: Included but never properly configured (not fully functional)

- Operational Status: Powered on and fully functional; needs maintenance checks since it hasn't been serviced in a long time

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
