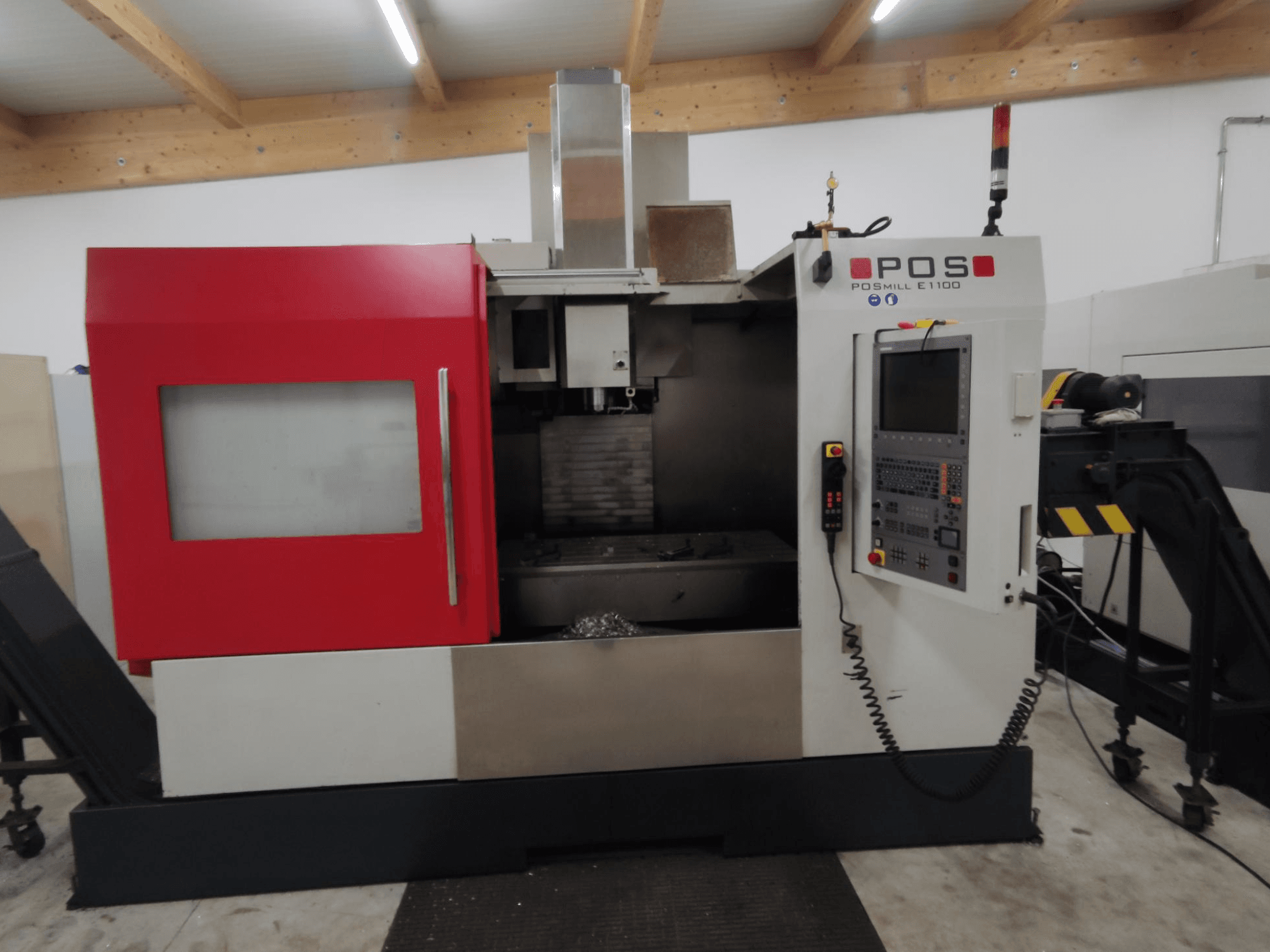

This 3-axis POSmill E1100 was manufactured in 2011. It features a Heidenhain TNC 530 CNC control, a robust 1,100 mm X-axis travel, and a high-capacity 40-position automatic tool changer. The spindle supports speeds up to 10,000 rpm with ISO 40 tool holder and cooling. Additional features include a full enclosure, safety windows, and a 20 bar coolant system with chip management. If you are looking to get high-quality milling capabilities consider the POSmill E1100 machine we have for sale. Contact us for more information.
Overview
- brand: POSmill
- year: 2011
- MODEL: E1100
- production hours: 70
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - POSmill E1100
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC350
Movement
- Number of Axes: 3
- X-axis Travel: 1100 mm
- Y-axis Travel: 600 mm
- Z-axis Travel: 510 mm
Technical Specification
- Spindle Power: 18.5 kW
- Spindle Speed: 10000 RPM
- Taper Size: ISO 40
Additional Information
Prepared for 4th axis (interface prepared; compatible with Lehmann rotary table)
Table approx. 1,300 × 600 mm
CNC control: direct linear scales X/Y/Z; electronic handwheel; tool breakage monitoring
Spindle cooling; air blast through spindle
Tool system: ATC 40 positions; tool magazine with loading hatch; tool length measurement; tool clamping monitoring
Enclosure & safety: full machine enclosure; polycarbonate safety windows; automatic lubrication system; safety cabinet with air conditioning
Connectivity: USB interface; network connection
News spindle in 2020. New spindle has only 80 hours
Additional equipment
Chip conveyor
High-pressure coolant system, 20 bar with belt filter unit
Coolant flushing system
Hydraulic unit
Workpiece measuring system (25.0 HDR)
Pallet handling interface (optional)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
