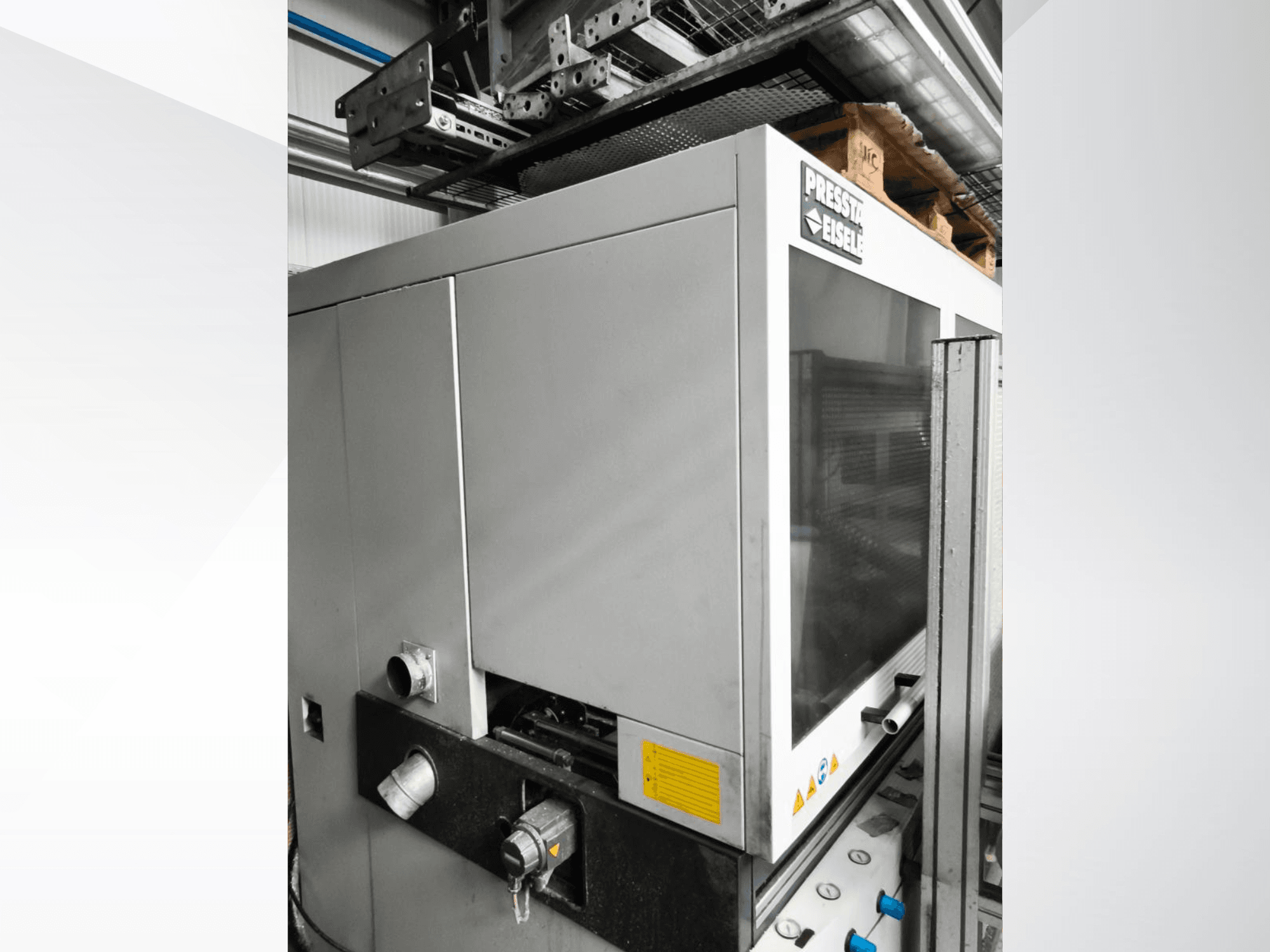

PRESSTA EISELE - Profilma 400 V DE-SAW-PRE-2013-00001

• Design: Integrated material feed/loading magazine; floating feed to compensate for profile deviations

• Power supply: 400 V / 50 Hz

• Materials: Aluminum and non-ferrous metal profiles

• Saw blade diameter: Ø400 mm

• Saw blade speed: adjustable approx. 3,500–5,800 rpm

• Saw movement drive: Servo motor with ball screw drive

• Sawing direction: Linear feed from top to bottom

• Cutting principle: Crosscut

• Material feed: Automatic servo feed with repeat strokes for longer cutting lengths

• Material separation: Before the saw blade retracts (no recutting)

• Clamping system: Pneumatic, vertical and horizontal, on both sides of the saw blade; clamping force separately adjustable; replaceable plastic/PVC pads

• Control: PLC-based; operation via control panel with display

• Functions: Profile database; piece counter (incl. bundle cutting); cycle time display; diagnostics and error messages; machine status indicator

• Saw blade lubrication: Minimum quantity lubrication (spray mist), programmable lubrication control

• Extraction connections: Ø100 mm and Ø160 mm

• Pre-installation: Prepared for external chip extraction

• Motor Power: up to 22 kW (multi-speed motor: 3.5 / 11.5 / 18.5 / 22 kW)

Additional equipment

• External chip extraction unit (to connect to Ø100/Ø160 mm ports)
