- Rambaudi Ramfast RF105 Milling machine

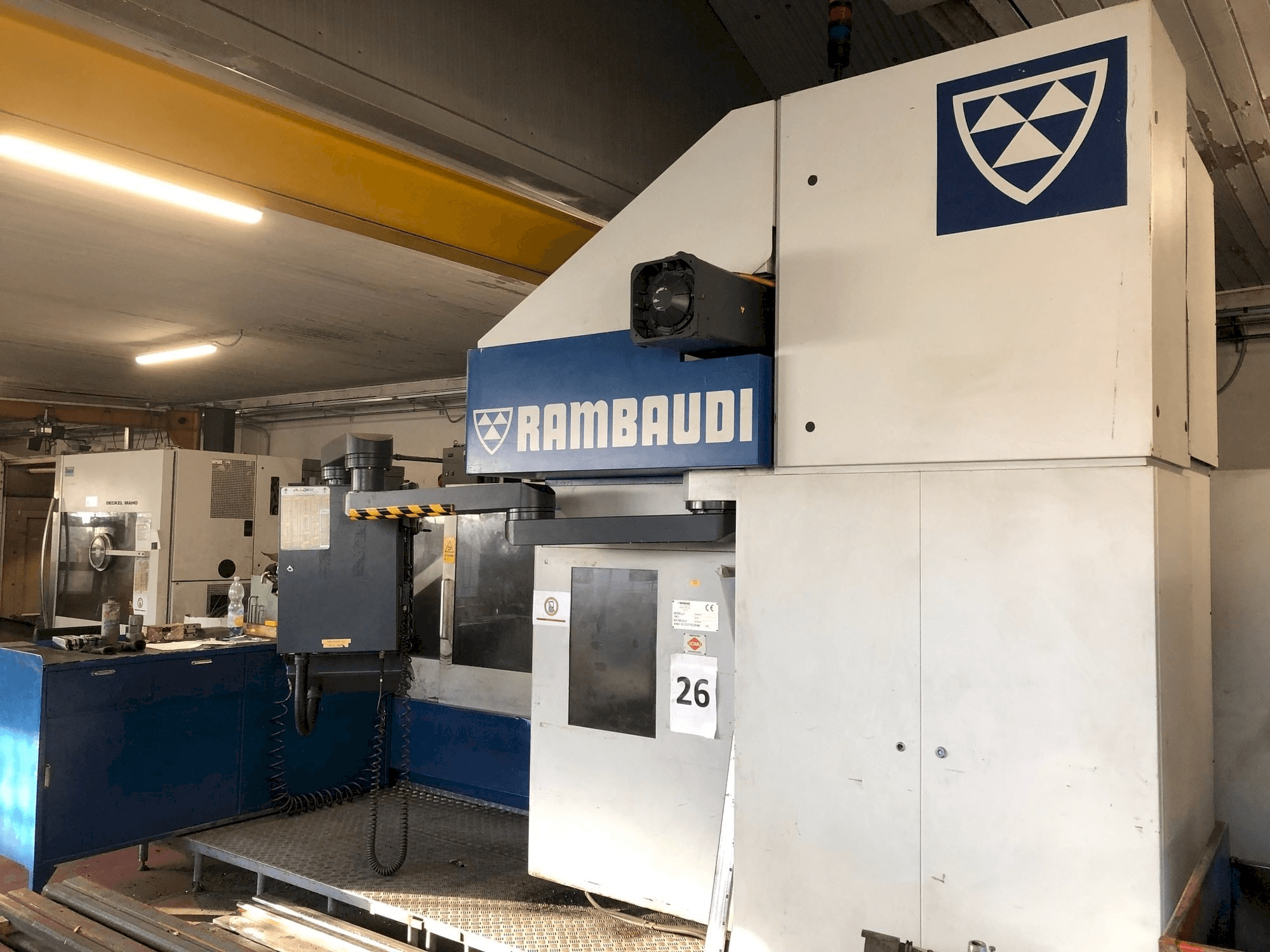

This Rambaudi Ramfast RF105 Milling machine was manufactured in the year 2005. It is equipped with a FIDIA C10-S control unit and has 5 axis. The machine has a spindle speed of 28-24000 rpm.
Overview
- brand: Rambaudi
- year: 2005
- MODEL: Ramfast RF105
- application type: Milling
- Location: Italy
- machine type: Milling Machine
- availability: Sold
- control unit brand: FIDIA
Technical Information - Rambaudi Ramfast RF105
General Data
- Measurements width: 5300 mm
- Measurements depth: 7000 mm
- Measurements height: 4300 mm
- Machine weight: 26000 Kg
Control Unit
- Brand: FIDIA
- Model: C10-S
Main drive
- Spindle speed range: 28-24000 1/MIN
- Spindle motor power: 28 kW
- Number of axis: 5
Movement
- X-AXIS Movement: 1600 mm
- X-AXIS Rapid traverse: 45 m/min
- Y-AXIS Rapid traverse: 45 m/min
- Z-AXIS Movement: 900 mm
- Z-AXIS Rapid traverse: 45 m/min
Table
- Outer length: 1200 mm
- Outer width: 1200 mm
Tools
- Slots in storage: 24
- Max weight: 10 Kg
- Max tool diameter: 105 mm
- Max tool length: 250 mm
- Type of tool holder: HSK63 A
Additional Information
- Technical Machine Benefits:
- - Capacity: 1600x2000+500x900 mm
- - Transversal (y): 2000+500atc mm
- - Table rotation (b): 360000°
- - Head swing (a): +/- 105°
- - Cylinder swing capacity: 1200 mm
- - Torque: (s1) 90nm
- - Cone: hsk63a
- - Atc extension
- - Resolution (b-axis): 0. 001°, axis acceleration 4. 5m/s2
- - Table: range: approx. 3000 kgs
- Qualitative Machine Benefits:
- - Independent air/oil lubrication, 24. 000 rpm electrospindle
- - Supplied accessories: second electrospindle 24,000 rpm electrical cabinet conditioner, remote handwheel, triple chip conveyor (2 longitudinal + 1 transversal collection)
- - Use and maintenance books: yes, wiring diagrams: yes, ce certification: yes, fairing: integral smoke extractor: yes
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
