Rambaudi Ramspeed H 45L
Rambaudi - Ramspeed H 45L
1999
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Rambaudi Ramspeed H 45L Milling Machine

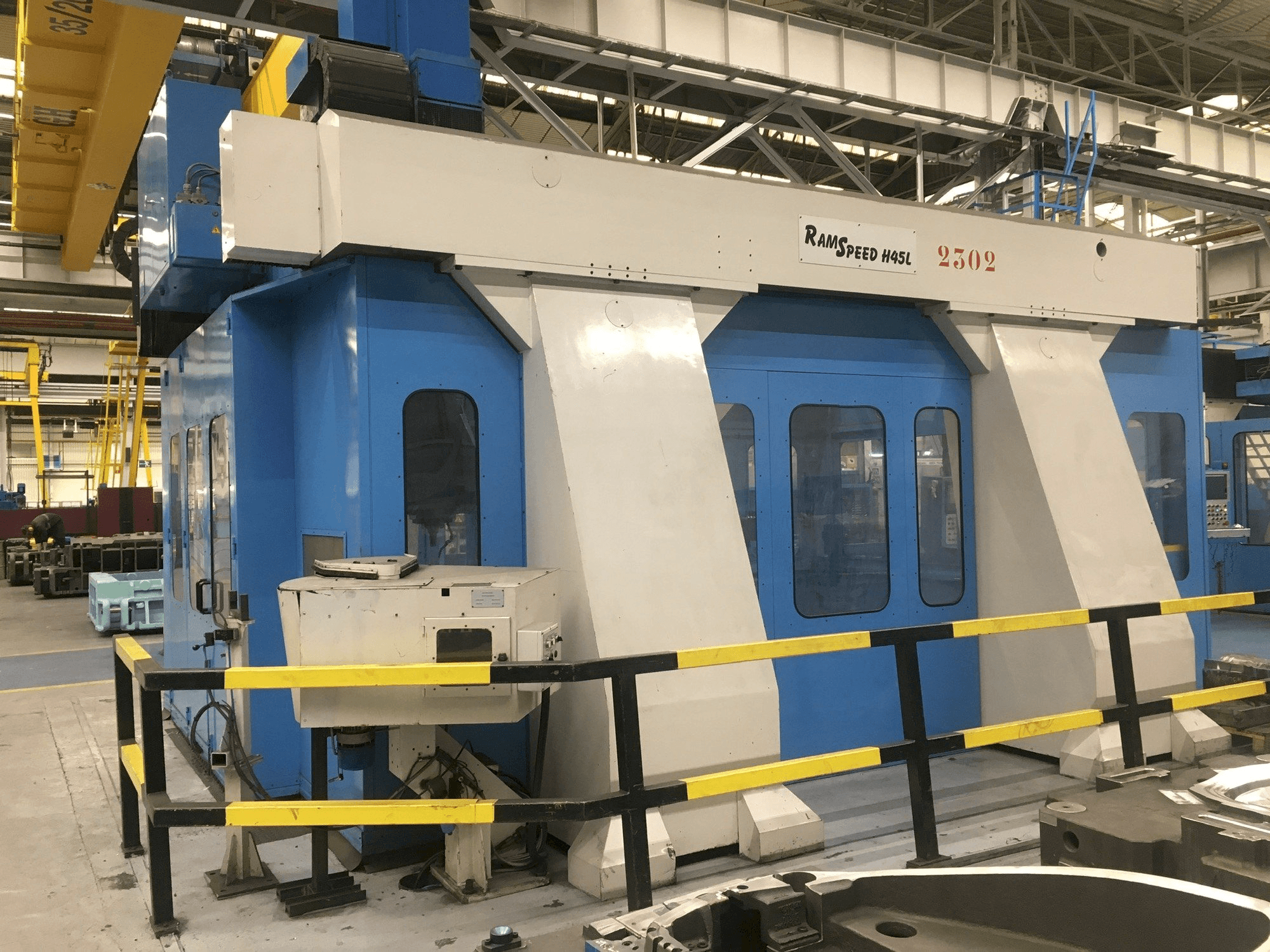

This Rambaudi Ramspeed H 45L Milling Machine was built in 1999 in Italy and has been working for 44020 hours. Equipped with a NUM 1060 Control unit, this machine incorporates 6 spindles with a spindle speed up to 24000 rpm and can work with a wide range of movements. It presents good conditions.
Overview
- brand: Rambaudi
- year: 1999
- MODEL: Ramspeed H 45L
- production hours: 44020
- application type: Milling
- Location: Spain
- machine type: Milling Machine
- availability: Sold
- control unit brand: NUM
- GINDUMAC ID: ES-MIL-RAM-1999-00001
Technical Information
General Data
- Measurements width: 6046 mm
- Measurements depth: 2700 mm
- Measurements height: 5490 mm
- Machine weight: 40000 KG
Control Unit
- Brand: NUM
- Model: 1060
- CNC main language: English
Main drive
- Number of spindles: 1
- Spindle speed range: 24000 1/MIN
Movement
- X-AXIS Movement: 4500 mm
- Y-AXIS Movement: 2500 mm
- Z-AXIS Movement: 1250 mm
Workpiece
- Workpiece x: 4500 mm
- Workpiece y: 2500 mm
- Workpiece z: 1250 mm
Table
- Outer length: 5000 mm
- Outer width: 2500 mm
- Number of tslots: 10
Tools
- Slots in storage: 6
- Max weight: 2 kg
- Max tool length: 300 mm
Additional Information
- Industries: Automotive
- Technical Machine Benefits:
- - Wide range of movement
- - 5 axis
- Qualitative Machine Benefits:
- - Good status
- - Maintenance
Machine history
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
