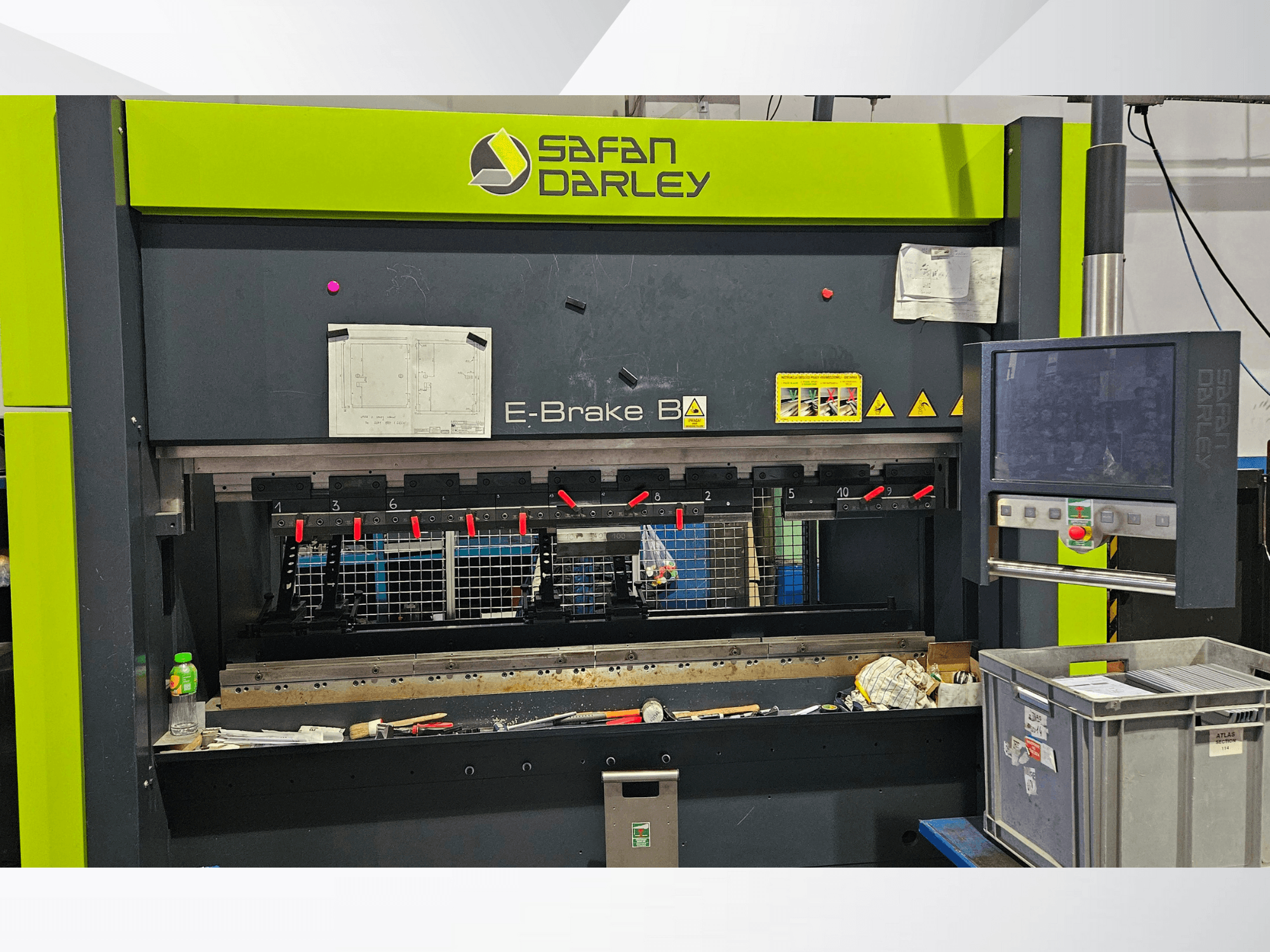

SAFAN - E-Brake B 50-2050PL-BEN-SAF-2017-00001

Additional information

Control Unit

• Type: EC 20

• Maximum pressing force: 500 kN

• Maximum bending length: 2050 mm

• Q-dimension: 650 mm

• Maximum stroke of upper beam: 300 mm

• Approach speed of upper beam: 110 mm/s

• Bending speed: 10 mm/s

• Bending speed with light curtain active: 10 mm/s

• Return speed of upper beam: 110 mm/s

• Maximum backgauge stroke: 550 mm

• Maximum backgauge speed: 350 mm/s

• Stopping time of upper beam: < 92 msec

• Minimum safety distance: 185 mm

• Upper tool clamping: European Style adapter

• Lower tool clamping: OB-S-3 table with mechanical clamping

• Programmable backgauge axes: X, R, mechanical Z1, Z2

• Front supports: Standard, load capacity 25 kg each

• Power supply: 3 × 400 V / 50–60 Hz / N / PE

• Installed power: 11 kW

• Light curtain: 28.5 mm gap, programmable, vertical, fixed

• Max bending speed (with safety curtain): 10 mm/s
